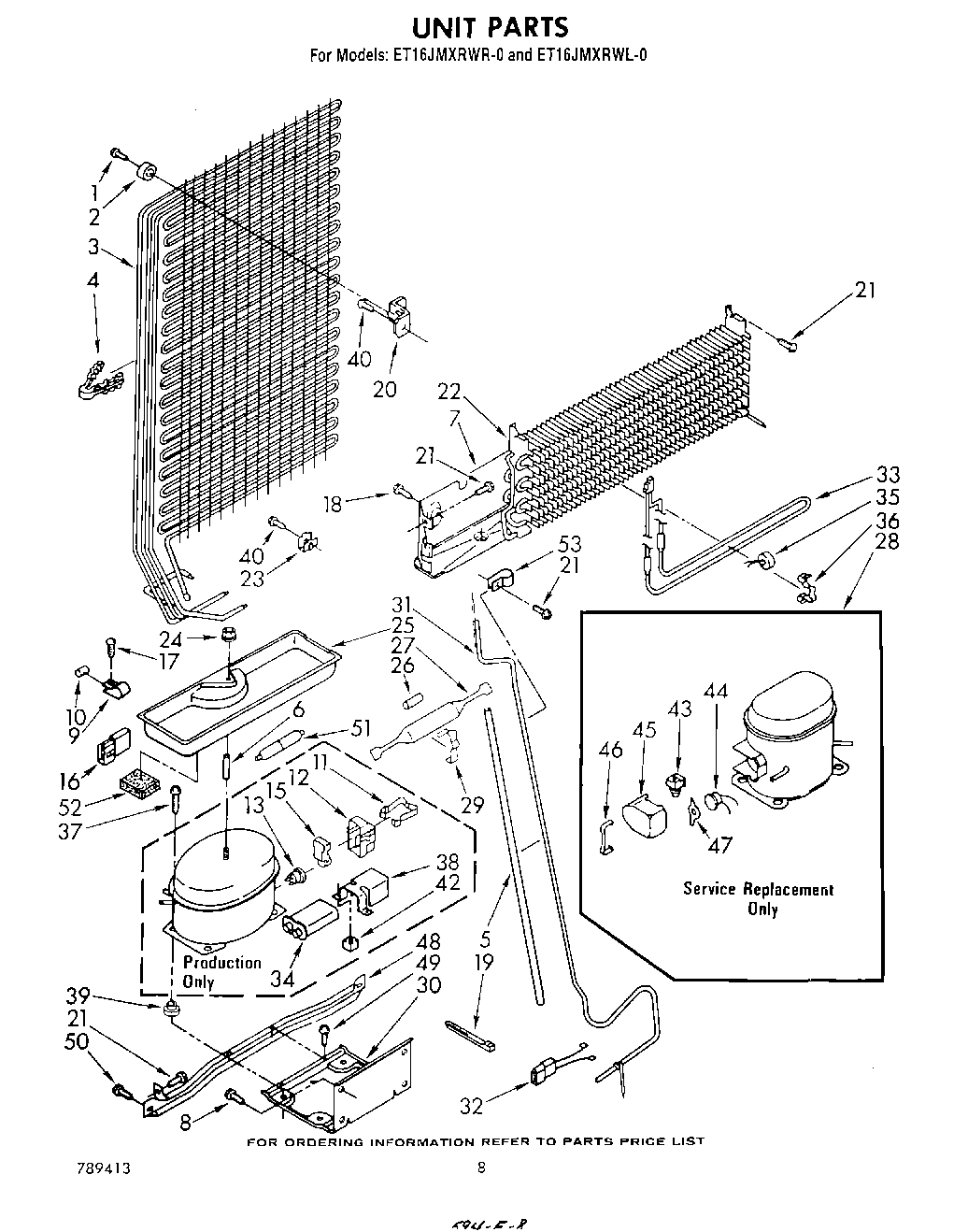

ET16JMXRWR0 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
11	Strap
12	Cover, Terminal
13	Overload
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Screw, 8-32 x 1/2
19	Strap
20	Bracket, Condenser
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Housing Plug
33	Heater, Defrost
34	Running Capacitor
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	Cover, Capacitor
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
42	Grommet
43	Relay
44	Overload
45	Cover, Terminal
46	Cover, Spring
47	Spring, Overload
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Muffler
52	Pad, Sound
53	VALVE, ACCESS (5/8“)
53	876764 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	978030 Whirlpool Refrigerator Valve
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	Tube, Clamp
