ET16JMXRWR1 09 – ICE MAKER , NOT ILLUSTRATED

ET16JMXRWR1 09 – ICE MAKER , NOT ILLUSTRATED

Written by

in

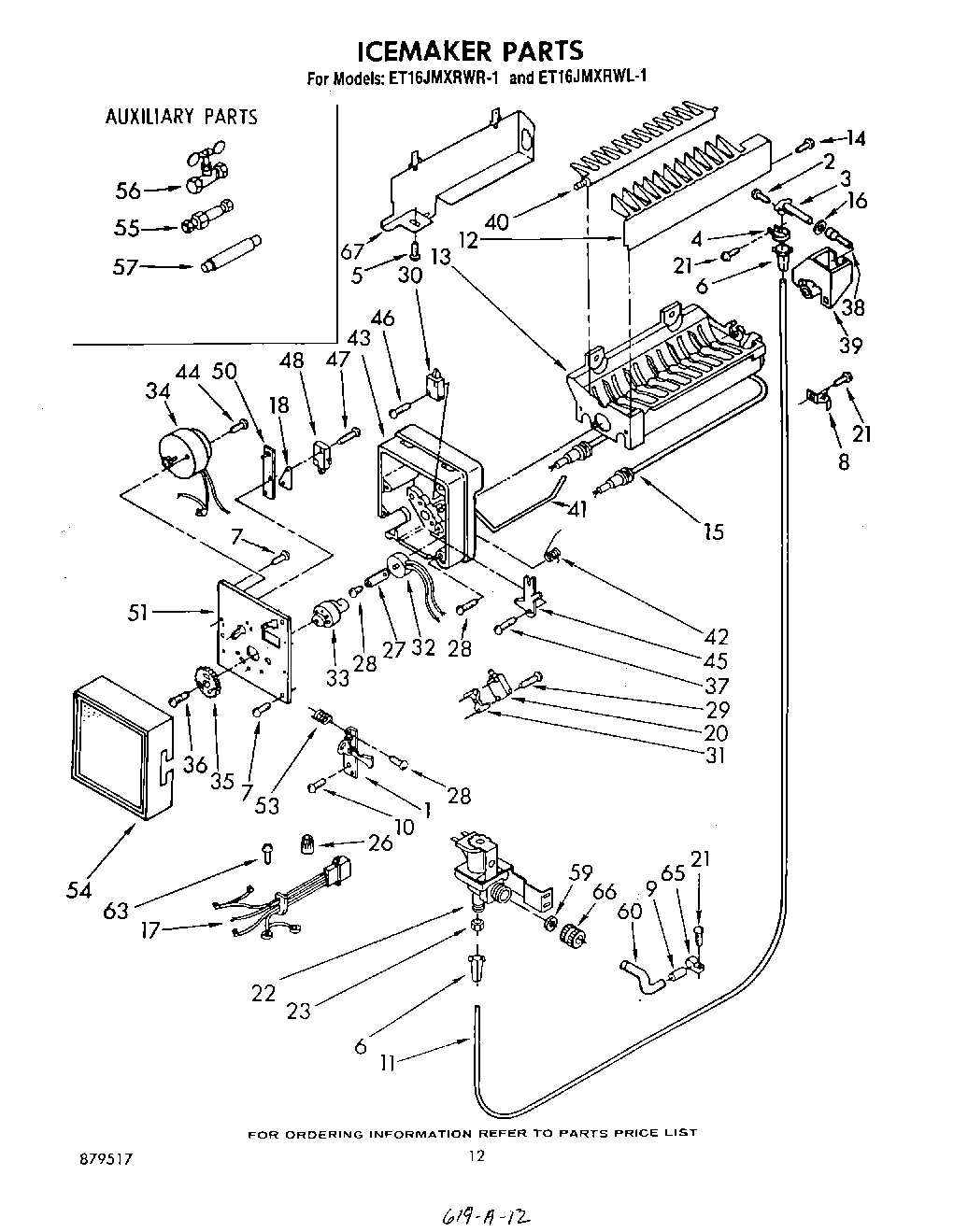

ET16JMXRWR1 09 – ICE MAKER , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	285006 Whirlpool Spray
	WPL LIT879517
	350942 Whirlpool Spray Paint
	Leveler (Thinner)
	WPL LIT1108007
	WPL LIT1109124
	WPL LIT1111517
	350956 Whirlpool Spray Assembly
	Golden Harvest
1	Lever & Plate Assembly
3	WP2196157 Whirlpool Fill Tube
4	WP488878 Whirlpool Refrigerator Tube Clamp
5	Screw, 8-16 x 3/8
6	4387491 Whirlpool Refrigerator Insert
7	WP488787 Whirlpool Refrigerator Screw
8	WP488366 Whirlpool Refrigerator Clamp
9	WP2158826 Whirlpool Refrigerator Dampener
10	Screw (Use W/Motor 627106)
11	W10823511 Whirlpool Refrigerator Water Tube
12	Stripper, Ice
13	Mold & Heater Assembly (Includes Illus. 15)
14	WP489128 Whirlpool Refrigerator Screw
15	Heater, Mold
16	WP1106508 Whirlpool Refrigerator Gasket
17	WPL 627750
18	Insulator
20	Switch, S.P.D.T.
21	WP489069 Whirlpool Compactor Screw
22	4318047 Whirlpool Water Valve
23	WP627018 Whirlpool Refrigerator Nut
26	Wire Connector
27	Clamp, Thermostat
28	Screw, 8-32 x 1
30	Switch, S.P.D.T. (2)
31	Spacer, Switch (2)
32	Thermostat
33	Cam
34	Motor
35	Gear
36	Screw
37	Screw, Shoulder
38	Tube, Water Inlet
39	Beraing & Inlet
40	Ejector
41	Arm, Shut-Off
42	Spring, Shut-Off Arm
43	Support
44	Screw, 4-40 x 1
45	Lever, Arm
46	Screw, 4-24 x 3/4
47	Screw
48	Switch, S.P.S.T.
50	Plate, Valve Switch
51	Plate, Mounting
53	Spring
54	Cover
55	Union, 1/4“ x 3/16“
56	Valve, Shut-Off
57	Filter Kit
59	WP16123 Whirlpool Washer
60	Tube, Inlet Valve
63	Screw, Ground
65	Clamp Tube
66	Nut, Valve
67	CEMENT, ALUMILASTIC (1 1/4 OZ.)
67	Enamel, Black (1 Qt. Uncut)
67	Golden Harvest (Uncut)
67	72113 Whirlpool Touch-Up Paint
67	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
67	WP503695 Whirlpool Refrigerator Sealer
67	WPL 799833
67	Almond (Uncut)
67	WP72107 Whirlpool Touchup
67	799344 Whirlpool Refrigerator Paint
67	72017 Whirlpool Appliance Touch-Up Paint White
67	TAPE, VINYL (3/4 X 108“)
67	WP542638 Whirlpool Refrigerator Grease
67	WP505587 Whirlpool Refrigerator Sealer
67	511873 Whirlpool Refrigerator Paint
67	WPL 876029
67	Silicone (Spray)
67	606755 Whirlpool Refrigerator Bag
67	833938 Whirlpool Refrigerator Terminal
67	212643 Whirlpool Refrigerator Permagum Sealer
67	72032 Whirlpool Touch Up Paint Black
67	876370 Whirlpool Refrigerator Insulation
67	WPL 72112
67	Shield, Heat
67	Platinum (Uncut)
67	Enamal, Toast (1 Qt. Uncut)
67	WPL 799832
