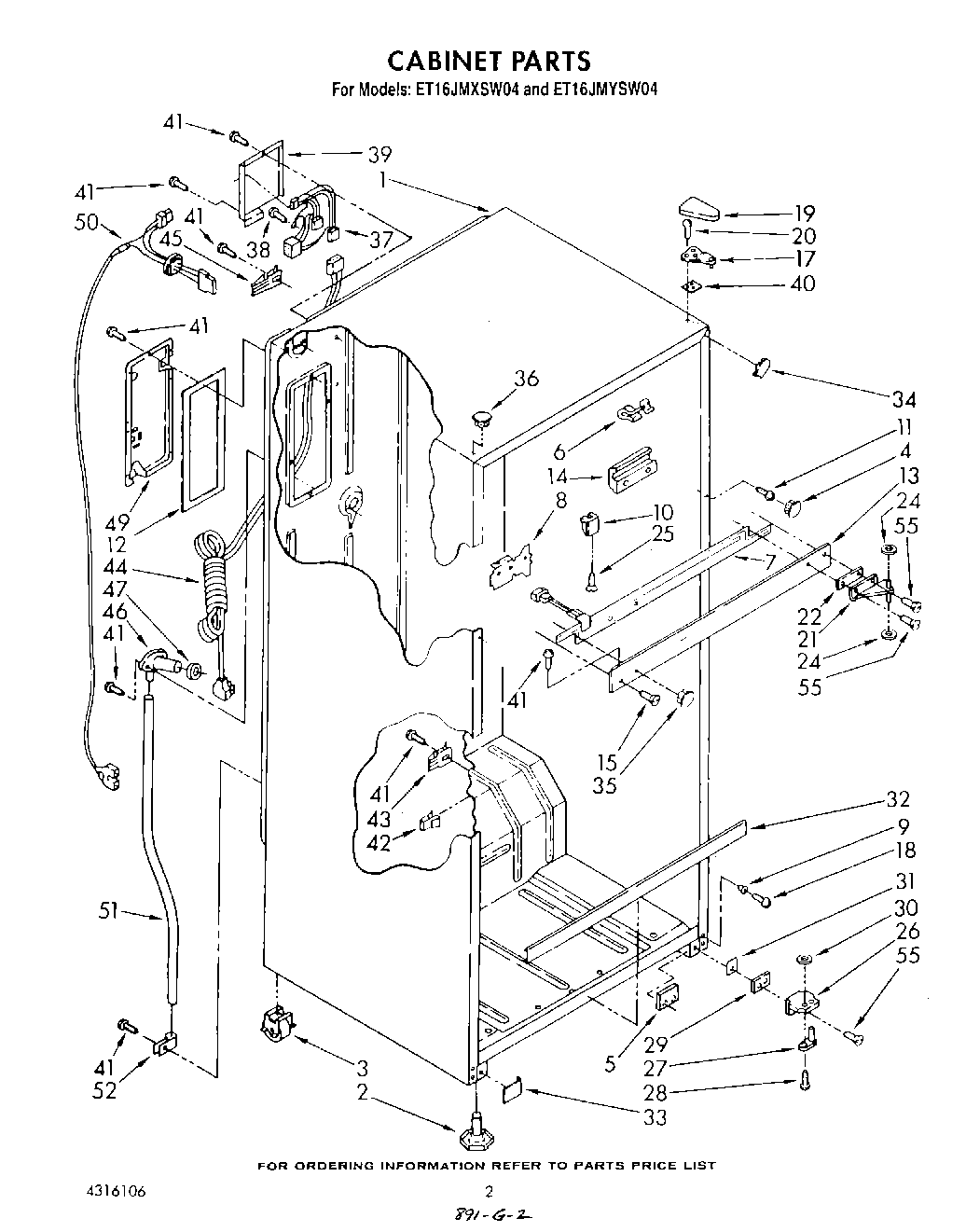

ET16JMXSW04 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Front & Rear (4)
4	Hole Plug (2) (Almond)
4	Hole Plug (2) (White)
5	WPL 944813
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
10	Spacer (2)
11	Screw (2)
12	WPL 1106510
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
17	Hinge, Top
18	WPL 488428
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
25	WP489174 Whirlpool Refrigerator Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Almond)
33	WPL 944831
33	WPL 943552
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (Almond)
35	Hole Plug (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (White)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	Shim, Hinge
41	WP489478 Whirlpool Refrigerator Screw
41	SCREW
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WP2187501 Whirlpool Refrigerator Wire Harness
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
55	Screw (Repair)
55	Screw
