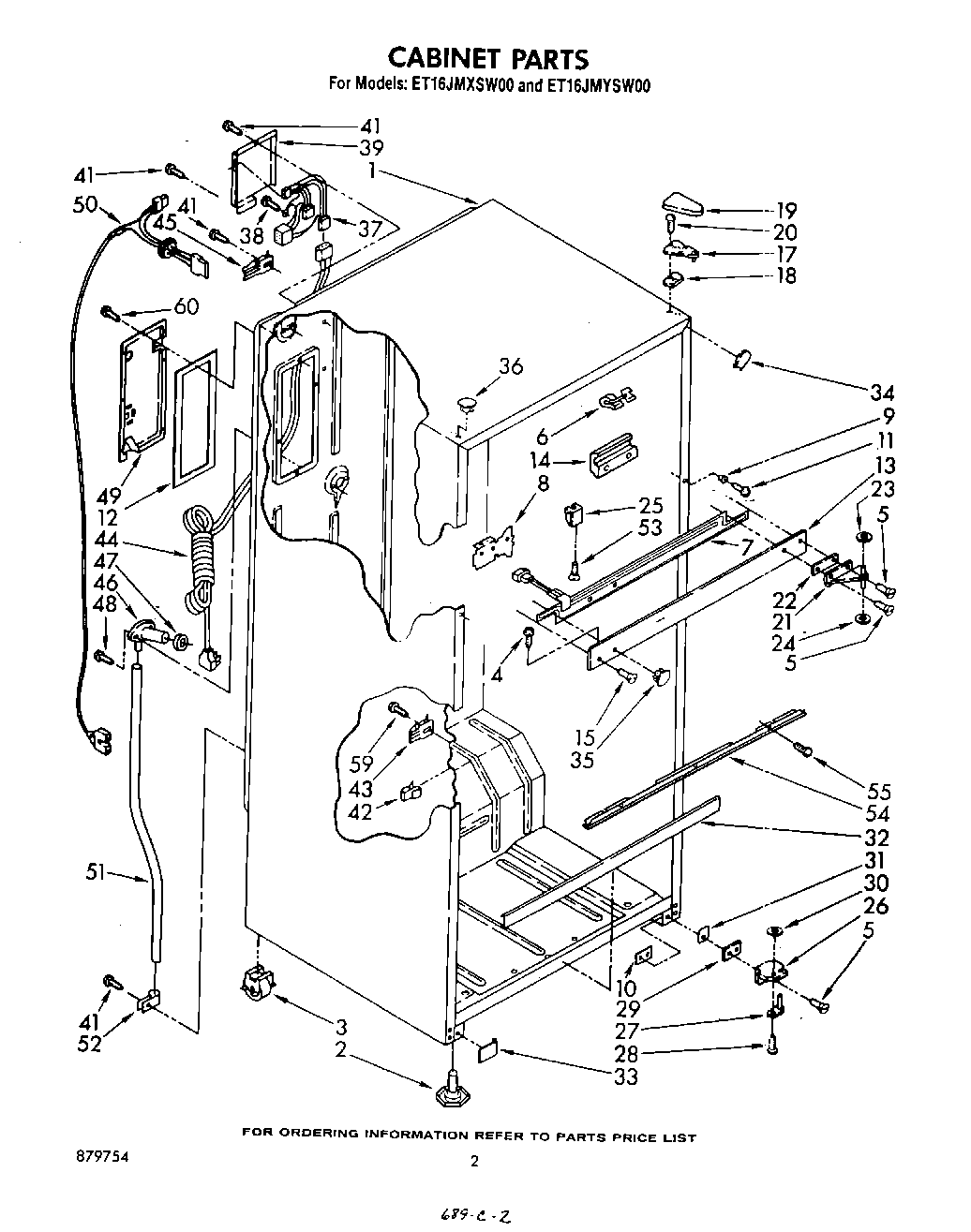

ET16JMYSF00 02 – CABINET

ET16JMYSF00 02 – CABINET

Written by

in

ET16JMYSF00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Roller, Front & Rear (4)
4	WP488729 Whirlpool Refrigerator Door Screw
5	Screw
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	Ferrule, Center Rail
10	WPL 944813
11	Screw
12	WPL 1106510
13	Center Rail (Platinum)
13	Center Rail (White)
13	Center Rail (Toast)
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
14	Center, Rail Shim (2)
15	Screw
17	Shim, Hinge Top
18	Shim, Hinge
19	Hinge Cover (Toast)
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
25	Spacer (2)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Golden Harvest)
33	WPL 1100682
33	Cover, Gl
33	WPL 944833
33	WPL 944831
33	WPL 943552
34	WPL 1110687
34	WPL 1110688
34	WPL 1110686
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
35	Hole Plug (2)
35	Hole Plug (2) (Golden Harvest)
35	Hole Plug (2) (Platinum)
36	Hole Plug (3) (Platinum)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (2) (Almond)
36	Hole Plug (3) (Toast)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	WP98165 Whirlpool Screw
49	WPL 942854
50	WP2187501 Whirlpool Refrigerator Wire Harness
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	Screw, 8 x 7/8
54	Filler, Rail Center
55	WPL 489167
59	WP489069 Whirlpool Compactor Screw
