ET16JMYSF03 09 – ICE MAKER , NOT ILLUSTRATED

ET16JMYSF03 09 – ICE MAKER , NOT ILLUSTRATED

Written by

in

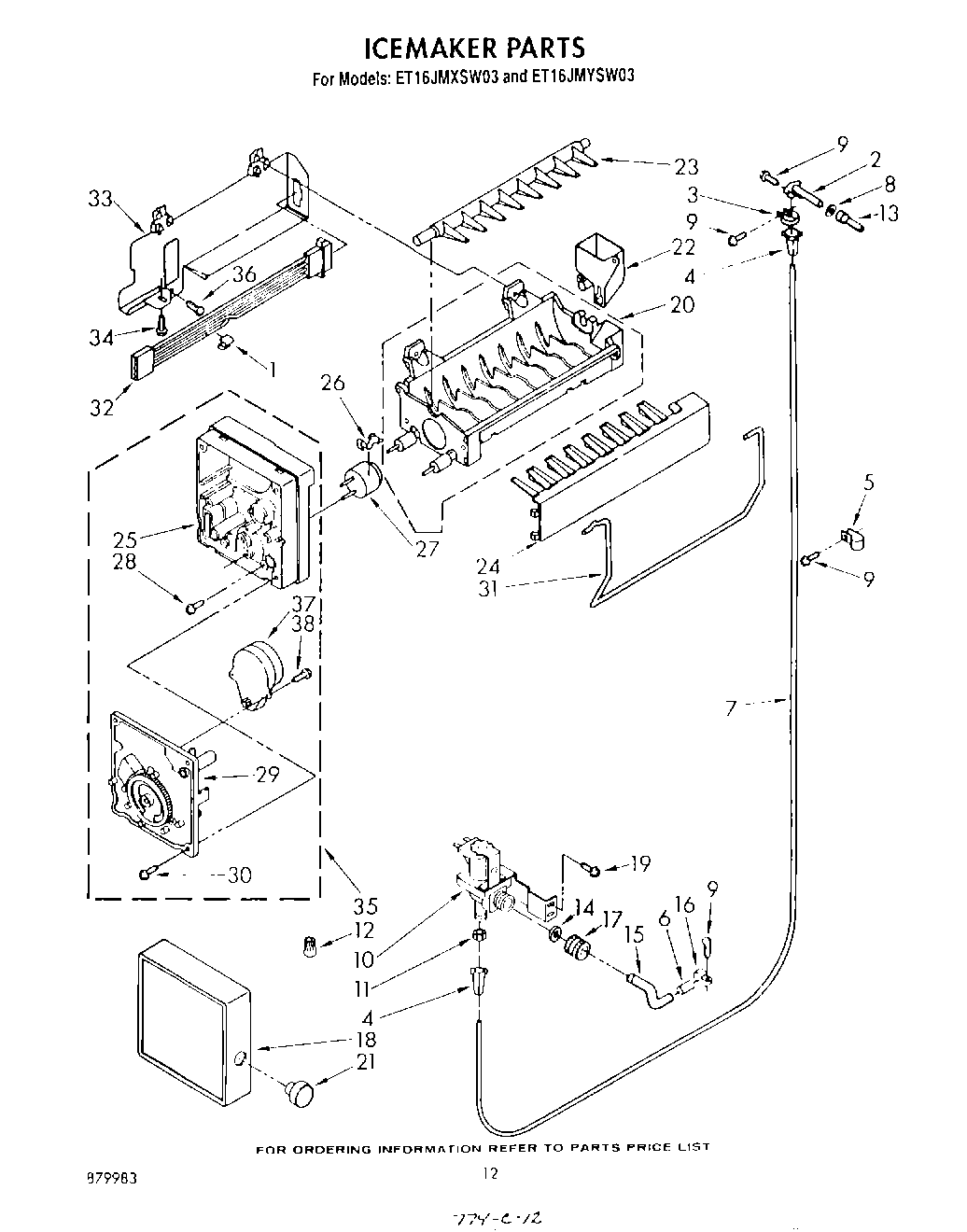

ET16JMYSF03 09 – ICE MAKER , NOT ILLUSTRATED

Products

Position	Product
	WPL LIT879983
	WPL LIT628107
	Torx Key
	WPL LIT1118724
	WPL LIT1120602
	WPL LIT1116051
1	WP628379 Whirlpool Refrigerator Clip
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP488366 Whirlpool Refrigerator Clamp
6	WP2158826 Whirlpool Refrigerator Dampener
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
9	SCREW
10	4318047 Whirlpool Water Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Tube, Water Inlet
14	WP16123 Whirlpool Washer
15	Tube, Inlet Valve
16	Clamp Tube
17	Nut, Valve
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	Knob, Water
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	Screw, 10-32 x 49/64
30	WP681249 Whirlpool Screw Assembly
31	WP627792 Whirlpool Refrigerator Shut Off Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	Shield, Heat
34	WP489128 Whirlpool Refrigerator Screw
35	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
36	Screw, 8-15 x 1/2 (4)
38	WP505587 Whirlpool Refrigerator Sealer
38	Platinum (Uncut)
38	72113 Whirlpool Touch-Up Paint
38	Silicone (Spray)
38	350930 Whirlpool White Spray Paint
38	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
38	606755 Whirlpool Refrigerator Bag
38	876370 Whirlpool Refrigerator Insulation
38	Almond (Uncut)
38	Leveler (Thinner)
38	WP72107 Whirlpool Touchup
38	350942 Whirlpool Spray Paint
38	511873 Whirlpool Refrigerator Paint
38	799344 Whirlpool Refrigerator Paint
38	72017 Whirlpool Appliance Touch-Up Paint White
38	350956 Whirlpool Spray Assembly
38	Golden Harvest
38	489136 Whirlpool Refrigerator Screw
38	WP542638 Whirlpool Refrigerator Grease
38	WPL 72112
38	TAPE, VINYL (3/4 X 108“)
38	CEMENT, ALUMILASTIC (1 1/4 OZ.)
38	Enamel, Black (1 Qt. Uncut)
38	WPL 799832
38	WPL 799833
38	WPL 876029
38	WP503695 Whirlpool Refrigerator Sealer
38	Enamal, Toast (1 Qt. Uncut)
38	Paint, Spray (13 Oz.) (Platinum)
38	Toast
38	Golden Harvest (Uncut)
38	212643 Whirlpool Refrigerator Permagum Sealer
38	833938 Whirlpool Refrigerator Terminal
38	285006 Whirlpool Spray
38	72032 Whirlpool Touch Up Paint Black
