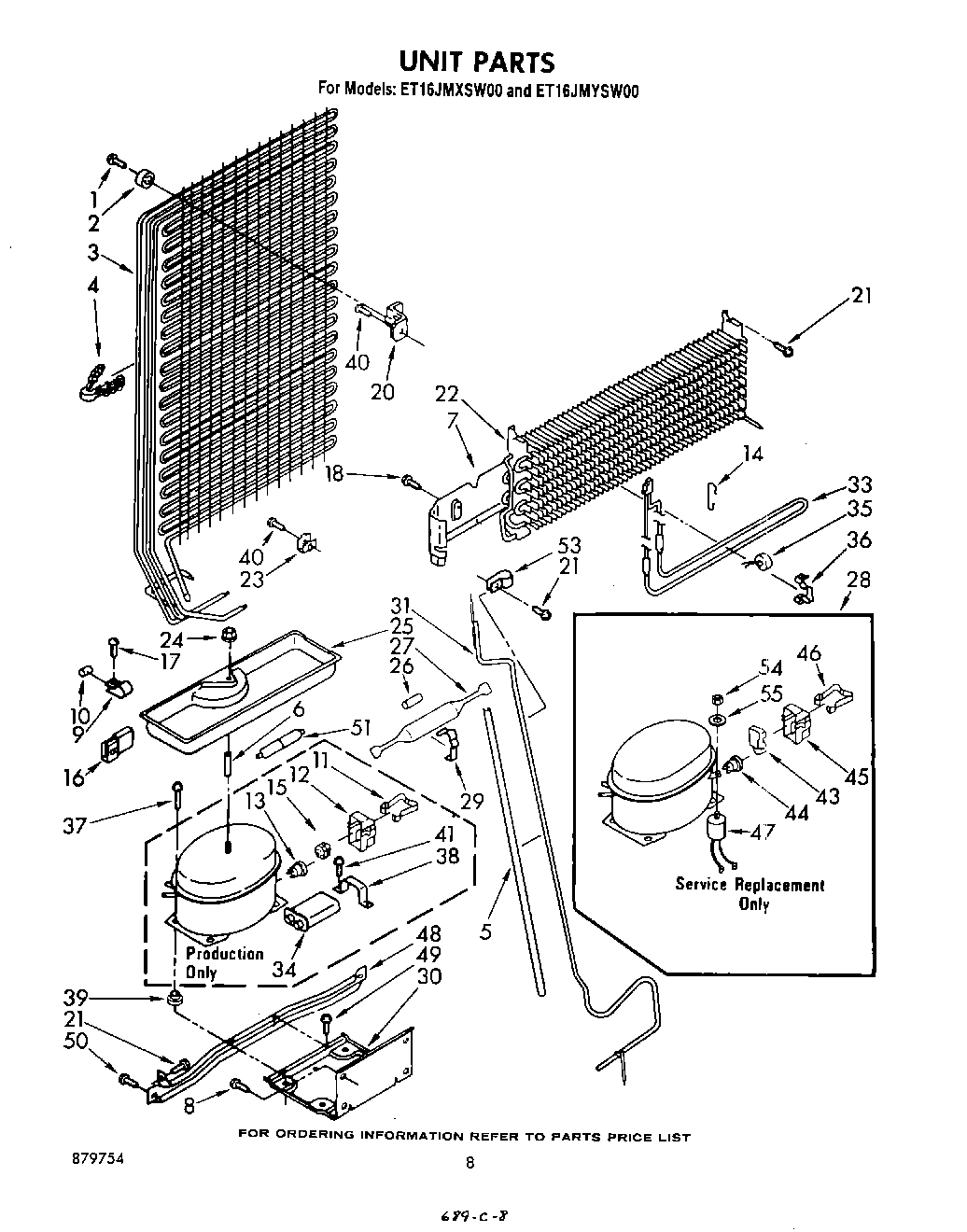

ET16JMYSM00 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP250830 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
12	Terminal Cover
13	Overload
14	Support, Heater
15	WP2262181 Whirlpool Refrigerator Start Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Screw, 8-32 x 1/2
20	Bracket, Condenser
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
33	Heater, Defrost
34	Running Capacitor
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
38	WP43449 Whirlpool Bracket
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	WP489128 Whirlpool Refrigerator Screw
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
51	Muffler
53	Tube, Clamp
54	Nut
55	Washer
55	VALVE, ACCESS (1/2“)
55	WP978025 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (5/8“)
55	978030 Whirlpool Refrigerator Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	876764 Whirlpool Refrigerator Primary Valve
