ET16JMYSM01 02 – CABINET

ET16JMYSM01 02 – CABINET

Written by

in

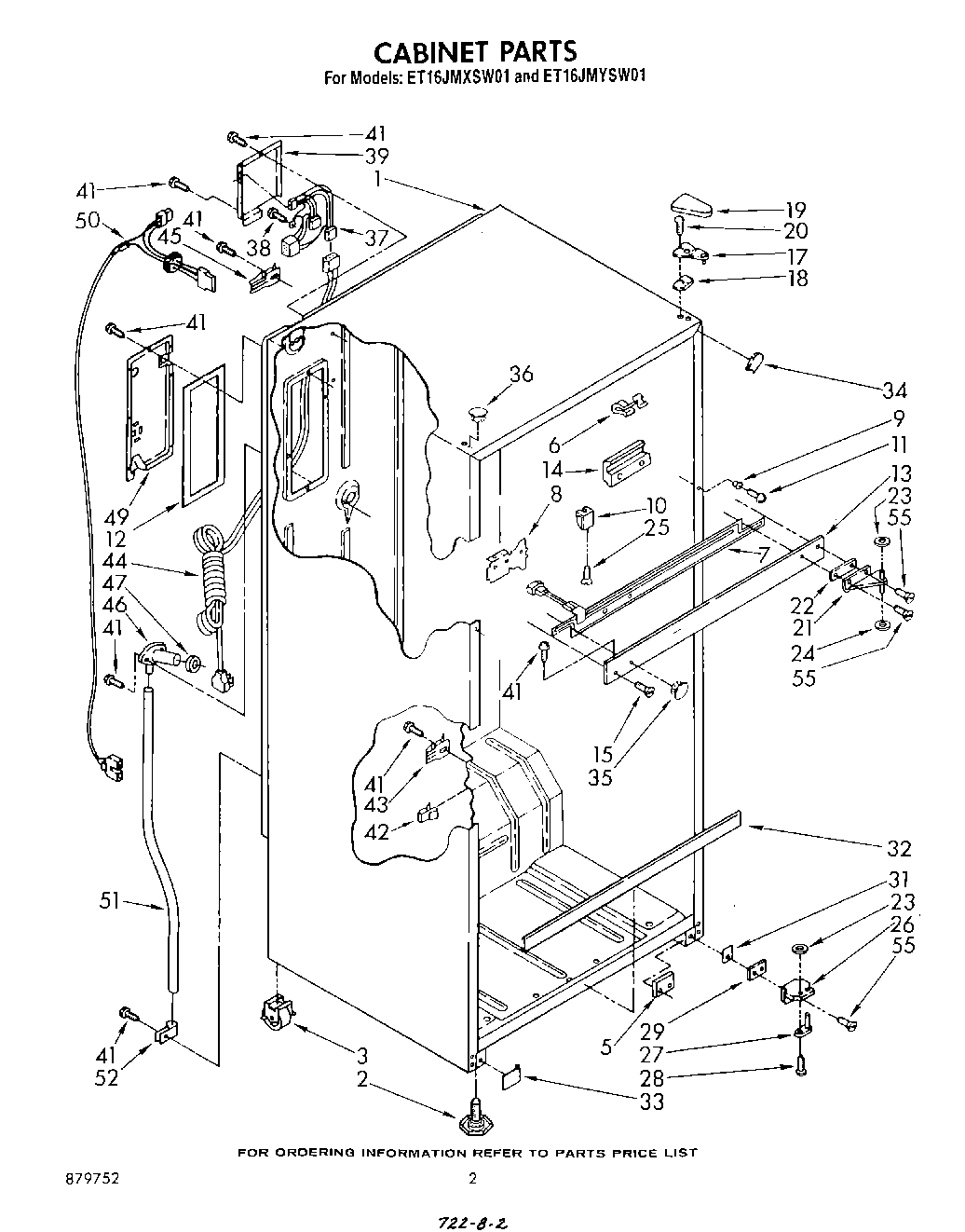

ET16JMYSM01 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Leveler (2)
3Roller, Front & Rear (4)
5WPL 944813
6Breaker, Trim Clip
7Heater, Mullion
8Center Rail, Bracket (2)
9Ferrule, Center Rail
10Spacer (2)
11Screw
12WPL 1106510
13Center Rail (White)
13Center Rail (Golden Harvest)
13Center Rail (Almond)
13Center Rail (Toast)
13Center Rail (Platinum)
14Center, Rail Shim (2)
15Screw
17Shim, Hinge Top
18Shim, Hinge
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Toast)
19Hinge Cover (Golden Harvest)
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP487802 Whirlpool Refrigerator Washer
24WP488296 Whirlpool Washer Refrigerator
25WP489174 Whirlpool Refrigerator Screw
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (Golden Harvest)
31Cover, Glider Rail (Toast)
31Cover, Glider Rail (Platinum)
31Cover, Glider Rail (White)
32Cover, Deck Rail (Toast)
32Cover, Deck Rail (Golden Harvest)
32Cover, Deck Rail (Platinum)
32Cover, Deck Rail (White)
32Cover, Deck Rail (Almond)
33WPL 944831
33Cover, Gl
33WPL 1100682
33WPL 943552
33WPL 944833
34WPL 1110687
34WPL 1110688
34WPL 1110686
34WPL 1110685
34WPL 1110684
35Hole Plug (Almond)
35WPL 1119708
35WPL 1119710
35WPL 1119711
35Hole Plug (White)
36Hole Plug (3) (Platinum)
36Hole Plug (2) (Almond)
36Hole Plug (2) (White)
36Hole Plug (2) (Golden Harvest)
36Hole Plug (3) (Toast)
37WPL 942844
38WP250830 Whirlpool Refrigerator Screw
39WPL 942845
41WP489069 Whirlpool Compactor Screw
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 942854
50WP2187501 Whirlpool Refrigerator Wire Harness
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
55Screw
55Screw (Repair)
