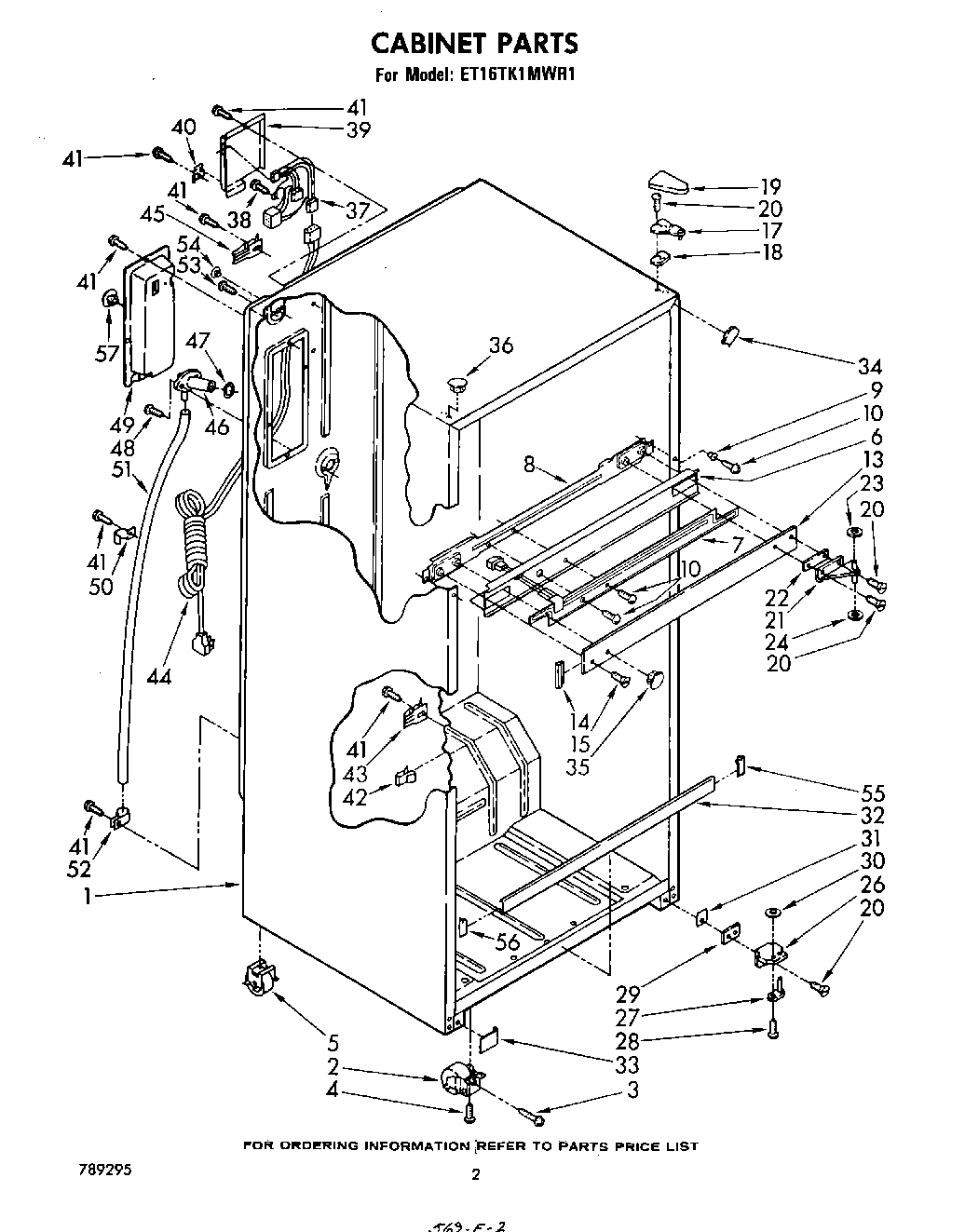

ET16TK1MWR1 02 – CABINET

ET16TK1MWR1 02 – CABINET

Written by

in

ET16TK1MWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Frame, Center Rail
7	Heater, Mullion
8	Center Rail, Bracket
9	Ferrule, Center Rail
10	Screw, 8-32 x 1/2
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
13	Center Rail (White)
13	Center Rail (Platinum)
13	Center Rail (Toast)
14	Filler, Center Rail (2) (White)
14	Filler, Center Rail (2) (Toast)
14	Filler, Center Rail (2) (Almond)
14	Filler, Center Rail (2) (Platinum)
14	Filler, Center Rail (2) (Golden Harvest)
15	Screw, 10-32 x 3/8
17	Shim, Hinge Top
18	Shim, Hinge
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Toast)
19	Hinge Cover (Golden Harvest)
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	WPL 1100783
29	Shim, Bottom Hinge (
29	WPL 1100779
29	WPL 1100784
29	WPL 1100781
30	WP487802 Whirlpool Refrigerator Washer
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Toast)
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (Golden Harvest)
32	WPL 1100667
32	WPL 942727
32	WPL 942725
32	Cover, Deck Rail (Toast)
32	Cover, Deck Rail (W
33	Cover, Gl
33	WPL 944833
33	WPL 1100682
33	WPL 944831
33	WPL 943552
34	WPL 1100683
34	WPL 942807
34	WPL 942809
34	WPL 1100684
34	WPL 942811
35	Hole Plug (2) (Platinum)
35	Hole Plug (2) (Toast)
35	Hole Plug (2) (Almond)
35	Hole Plug (2) (Golden Harvest)
35	Hole Plug (2)
36	Hole Plug (2) (White)
36	Hole Plug (2) (Almond)
36	Hole Plug (2) (Golden Harvest)
36	Hole Plug (3) (Platinum)
36	Hole Plug (3) (Toast)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	WPL 944741
41	W11624204 Whirlpool Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	Gasket, Seal
48	WP98165 Whirlpool Screw
49	WPL 942853
50	WPL 1103015
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489069 Whirlpool Compactor Screw
54	940014 Whirlpool Refrigerator Primary Button Plug
55	WPL 1100671
55	WPL 1100672
55	WPL 944700
55	WPL 944701
55	WPL 944703
56	WPL 1100673
56	WPL 1100674
56	WPL 944705
56	WPL 944706
56	WPL 944708
57	WPL 655411
