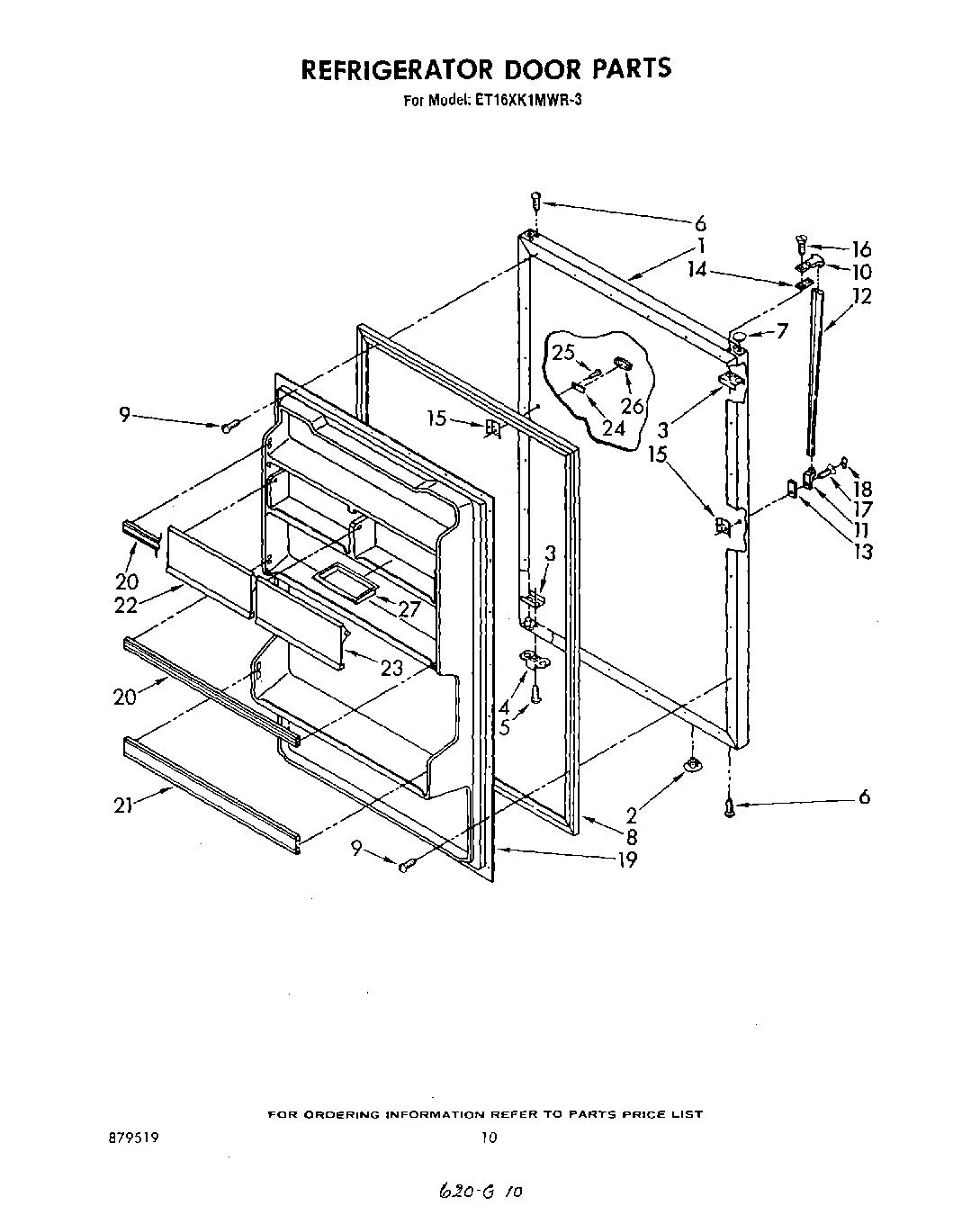

ET16XK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET16XK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET16XK1MWR3 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
WPL LIT1108007
Leveler (Thinner)
WPL LIT1104664
WPL LIT879519
WPL LIT946412
350956 Whirlpool Spray Assembly
Golden Harvest
1Panel, Refrigerator Door (Platinum) (Also Order Item 21)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Toast)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Platinum)
7Hole Plug (Almond)
7Hole Plug (Toast)
82188445A Whirlpool Refrigerator Door Gasket Seal
9SCREW
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (For Platinum Model Only)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
21Trim, Door (Bottom)
22Compartment, Utility Door
23Compartment, Butter Door
24Clip, Medallion
26Medallion (Almond)
26Medallion (Toast)
26Medallion (Platinum)
26Medallion (White)
26Medallion (Golden Harvest)
2772113 Whirlpool Touch-Up Paint
27WPL 799833
27Almond (Uncut)
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
2772017 Whirlpool Appliance Touch-Up Paint White
2772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
27Golden Harvest (Uncut)
27WP505587 Whirlpool Refrigerator Sealer
27WP542638 Whirlpool Refrigerator Grease
27876370 Whirlpool Refrigerator Insulation
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27WPL 799832
27WPL 876029
27833938 Whirlpool Refrigerator Terminal
27606755 Whirlpool Refrigerator Bag
27511873 Whirlpool Refrigerator Paint
27212643 Whirlpool Refrigerator Permagum Sealer
2772032 Whirlpool Touch Up Paint Black
27TAPE, VINYL (3/4 X 108“)
27WPL 72112
27Platinum (Uncut)
27Enamal, Toast (1 Qt. Uncut)
27Silicone (Spray)
27WP503695 Whirlpool Refrigerator Sealer
