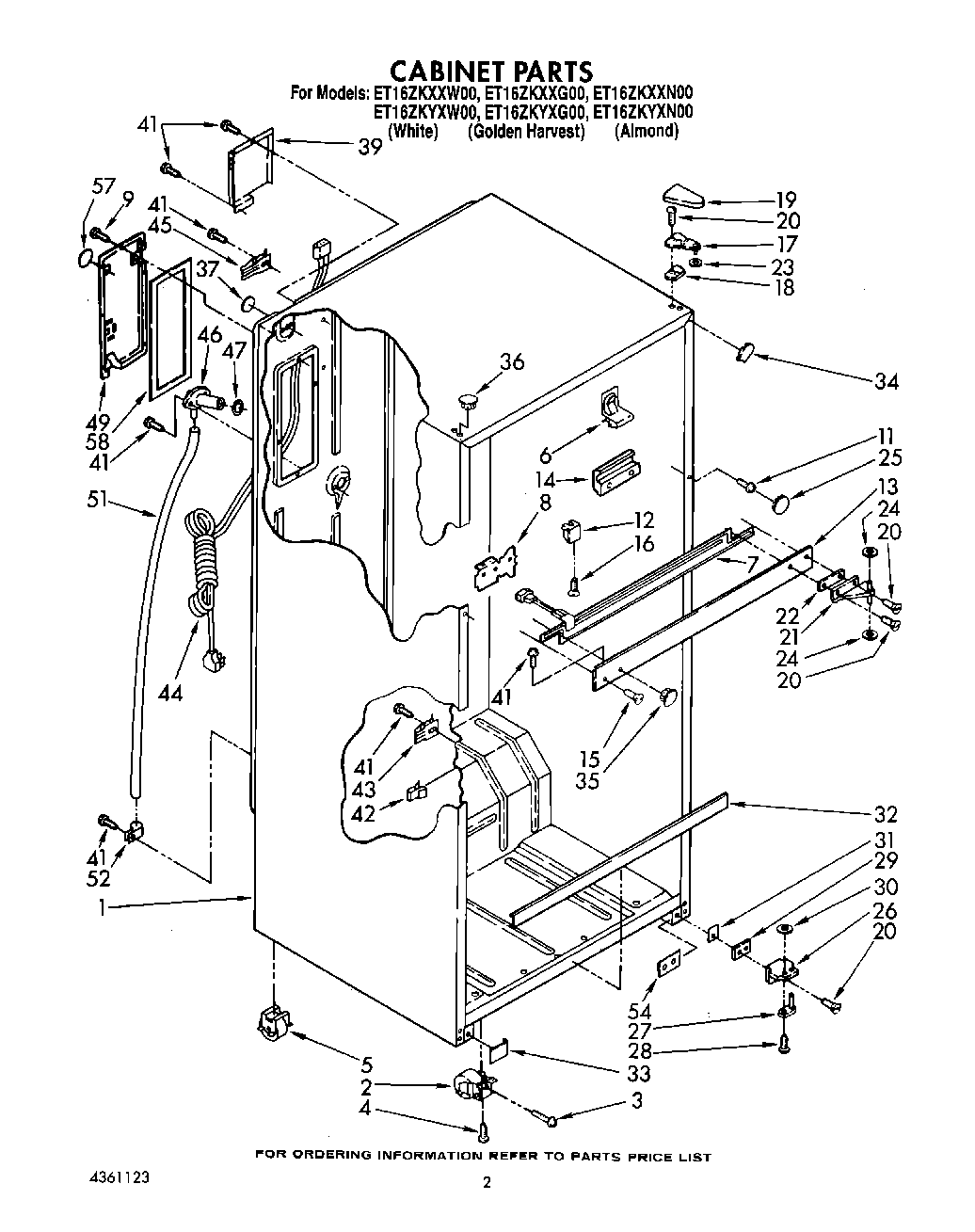

ET16ZKXXG00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw
4	Screw, 10-32 x 1/2
5	Roller, Rear
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
11	Screw, 8-32 x 1/2 (2)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
14	Center, Rail Shim (2)
15	Screw
16	WP489174 Whirlpool Refrigerator Screw
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP487576 Whirlpool Washer
24	WP489467 Whirlpool Hinge Shim
25	Hole Plug (2) (White)
25	Hole Plug (2) (Golden Harvest)
25	Hole Plug (2) (Almond)
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (White)
33	WPL 943552
33	WPL 944831
33	WPL 944833
34	WPL 1110684
34	WPL 1110685
34	WPL 1110686
35	Hole Plug (Almond)
35	Hole Plug (White)
35	WPL 1119708
36	Hole Plug (5) (Golden Harvest)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (6) (Almond)
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
54	Tap Plate (2)
57	WPL 1120224
58	WPL 1106510
