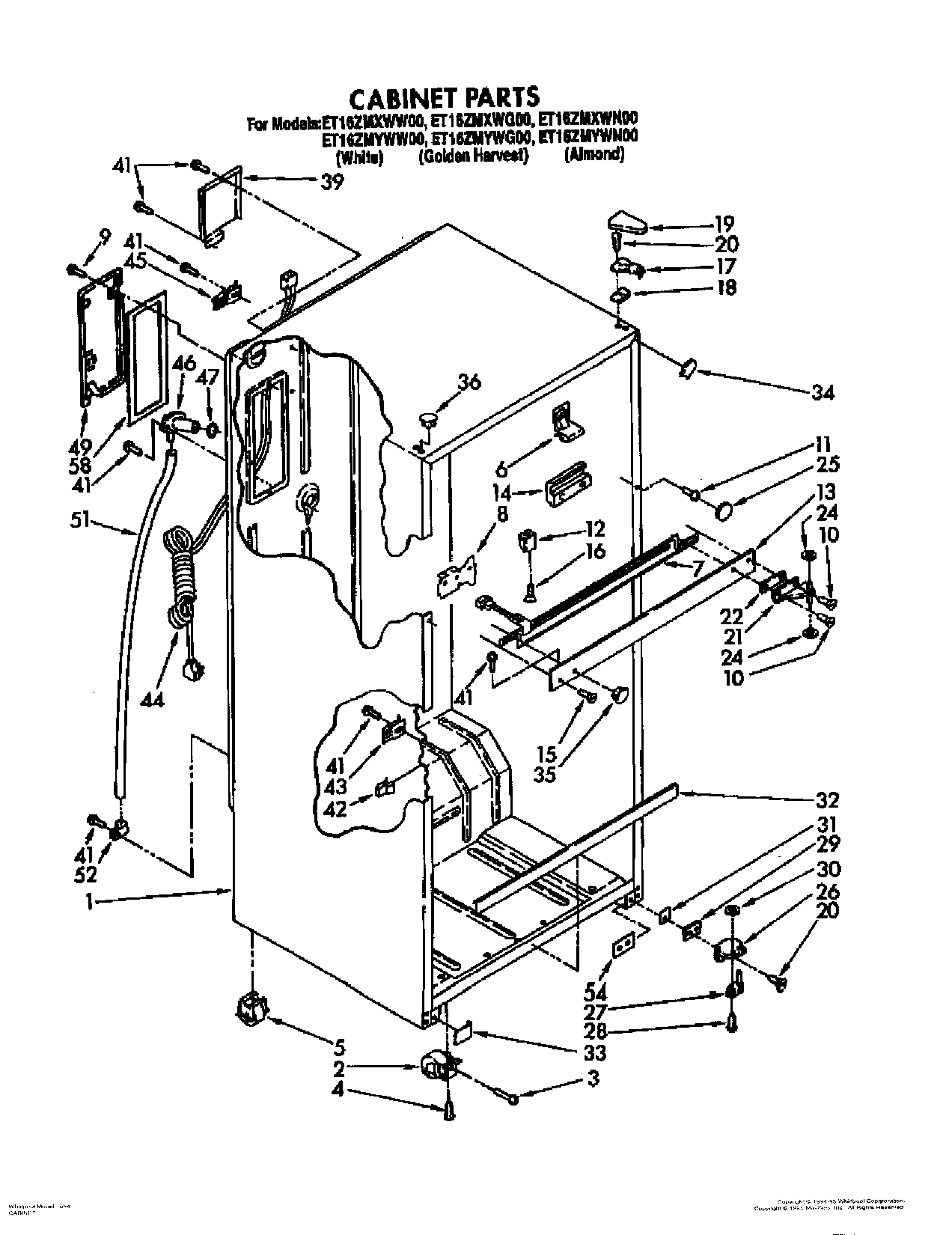

ET16ZMXWN00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw
4Screw, 10-32 x 1/2
5Roller, Rear
6Clip, Center Rail (4)
7Heater, Mullion
8Center Rail, Bracket (2)
9WP489464 Whirlpool Refrigerator Screw
10WP999367 Whirlpool Refrigerator Screw
11WPL 488844
12Spacer (3)
13Center Rail (White)
13Center Rail (Almond)
13Center Rail (Golden Harvest)
14Center, Rail Shim (2)
15Screw
16WP489174 Whirlpool Refrigerator Screw
17Hinge, Top
18Shim, Hinge
191119787 Whirlpool Refrigerator Hinge Cover
19Hinge Cover (Golden Harvest)
20Screw
21Hinge, Center
22Shim, Hinge Center
24WP488296 Whirlpool Washer Refrigerator
25Hole Plug (2) (Almond)
25Hole Plug (2) (Golden Harvest)
25Hole Plug (2) (White)
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
30WP487576 Whirlpool Washer
31Cover, Glider Rail (Golden Harvest)
31Cover, Glider Rail (Almond)
31Cover, Glider Rail (White)
32Cover, Deck Rail (Almond)
32Cover, Deck Rail (Golden Harvest)
32Cover, Deck Rail (White)
33WPL 943552
33WPL 944831
33WPL 944833
34WPL 1110684
34WPL 1110685
34WPL 1110686
35Hole Plug (White)
35Hole Plug (Almond)
35WPL 1119708
36Hole Plug (6) (Almond)
36WP2151652 Whirlpool Refrigerator Button Plug
36Hole Plug (2) (Golden Harvest)
39WPL 942845
41WP489478 Whirlpool Refrigerator Screw
42W10812038 Whirlpool Refrigerator Clip
43549193 Whirlpool Refrigerator Power Clamp
44Cord, Service
45Clamp
46WPL 942813
47WPL 1106507
49WPL 1106511
518316810 Whirlpool Refrigerator Drain Tube
52WPL 519405
54Tap Plate (2)
58WPL 1106510
