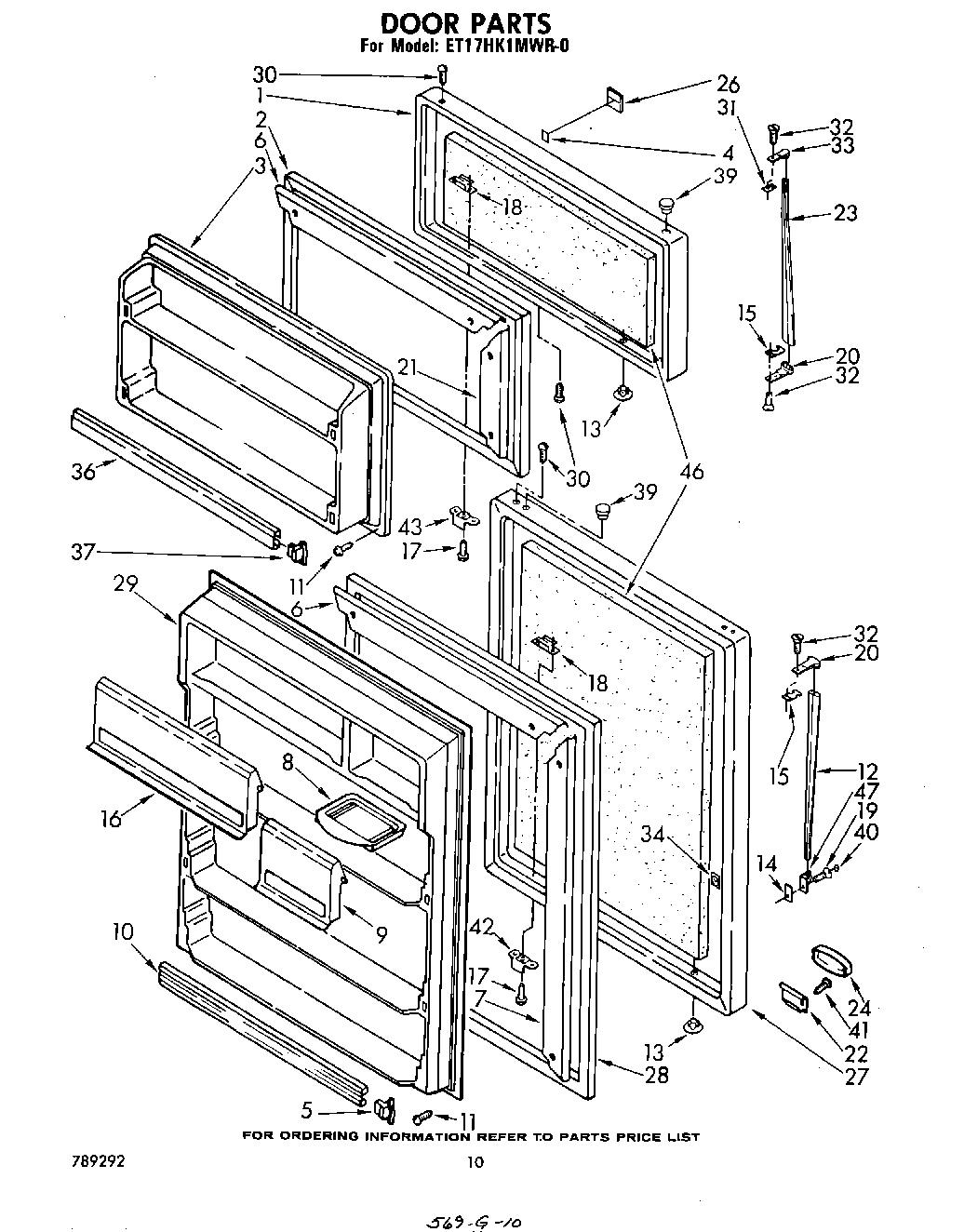

ET17HK1MWR0 06 – DOOR , PARTS NOT ILLUSTRATED

ET17HK1MWR0 06 – DOOR , PARTS NOT ILLUSTRATED

Written by

in

ET17HK1MWR0 06 – DOOR , PARTS NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	285006 Whirlpool Spray
	WPL LIT789292
	WPL LIT942935
	WPL 677967
	WPL 677821
	WPL 677818
	WPL 677813
	paint, spray 13 oz. (coffee)
	Golden Harvest
	Leveler (Thinner)
	350942 Whirlpool Spray Paint
	WPL LIT1100859
	350956 Whirlpool Spray Assembly
	WPL LIT1104728
1	Door, Freezer (Also Order Item 36) (White)
1	Door, Freezer (Also Order Item 36) (Almond)
1	Door, Freezer (Also Order Item 36) (Coffee)
1	Door, Freezer (Also Order Item 36) (Golden Harvest)
1	Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
1	Freezer Door (Toast)
2	2188460A Whirlpool Refrigerator Door Gasket
3	WPL 481966
3	Panel, Interior
4	Tape Strip
5	WP839904 Whirlpool Refrigerator Endcap Trim
6	Retainer, Gasket Top
7	Retainer, Gasket Side
9	Door, Butter
10	Trim, Door Shelf
11	WP489069 Whirlpool Compactor Screw
11	SCREW
12	Handle, Center (For Platinum Model Only)
12	Handle, Center
13	Hole Plug (2)
14	Shim, Handle End
15	Spa
16	Door, Utility
17	WP488921 Whirlpool Refrigerator Screw
18	W10833053 Whirlpool Refrigerator Plate
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP2191883 Whirlpool Refrigerator Handle Endcap
21	Retainer Gasket Side
22	Clip, Medallion
23	Handle, Center (For Platinum Model Only)
23	WPL 982944
24	Medallion (White)
24	Medallion (Coffee)
24	Medallion (Toast)
24	Medallion (Golden Harvest)
24	Medallion (Almond)
24	Medallion (Platinum)
26	Insert, Nameplate
27	Door, Refrigerator (Toast)
27	Refrigerator Door (Platinum)
27	Door, Refrigerator (Almond)
27	Door, Refrigerator (Golden Harvest)
27	Door, Refrigerator (Coffee)
27	Door, Refrigerator (White)
28	2188450A Whirlpool Refrigerator Door Gasket
29	Panel, Inte
29	Interior, Door Panel
30	Screw (Repair)
30	WP8281206 Whirlpool Refrigerator Screw
31	Shim, Handle
32	WP488920 Whirlpool Refrigerator Screw
32	Screw (Repair)
33	WP2191882 Whirlpool Refrigerator Handle End Cap
34	WP939101 Whirlpool Refrigerator Plate
36	WPL 837789
37	WP839975 Whirlpool Refrigerator Endcap Trim
39	Hole Plug (Coffee)
39	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39	Hole Plug (Toast)
39	Hole Plug (Platinum)
39	Hole Plug (Almond)
40	WP1101634 Whirlpool Refrigerator Cover
42	Bracket, Door Stop
43	Bracket, Door Stop
47	Silicone (Spray)
47	833938 Whirlpool Refrigerator Terminal
47	606755 Whirlpool Refrigerator Bag
47	511873 Whirlpool Refrigerator Paint
47	212643 Whirlpool Refrigerator Permagum Sealer
47	WPL 72112
47	Platinum (Uncut)
47	Enamal, Toast (1 Qt. Uncut)
47	72113 Whirlpool Touch-Up Paint
47	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47	Almond (Uncut)
47	WP72107 Whirlpool Touchup
47	799344 Whirlpool Refrigerator Paint
47	Golden Harvest (Uncut)
47	876370 Whirlpool Refrigerator Insulation
47	Enamel, Coffee (1 Qt. Uncut)
47	Paint, Touch-Up 1/2 Oz. (Coffee)
47	WP2183139 Whirlpool Refrigerator Handle End Cap
47	72032 Whirlpool Touch Up Paint Black
47	WPL 876029
47	WPL 799833
47	WPL 799832
47	CEMENT, ALUMILASTIC (1 1/4 OZ.)
47	TAPE, VINYL (3/4 X 108“)
47	WP542638 Whirlpool Refrigerator Grease
47	WP505587 Whirlpool Refrigerator Sealer
47	WP503695 Whirlpool Refrigerator Sealer
47	72017 Whirlpool Appliance Touch-Up Paint White
