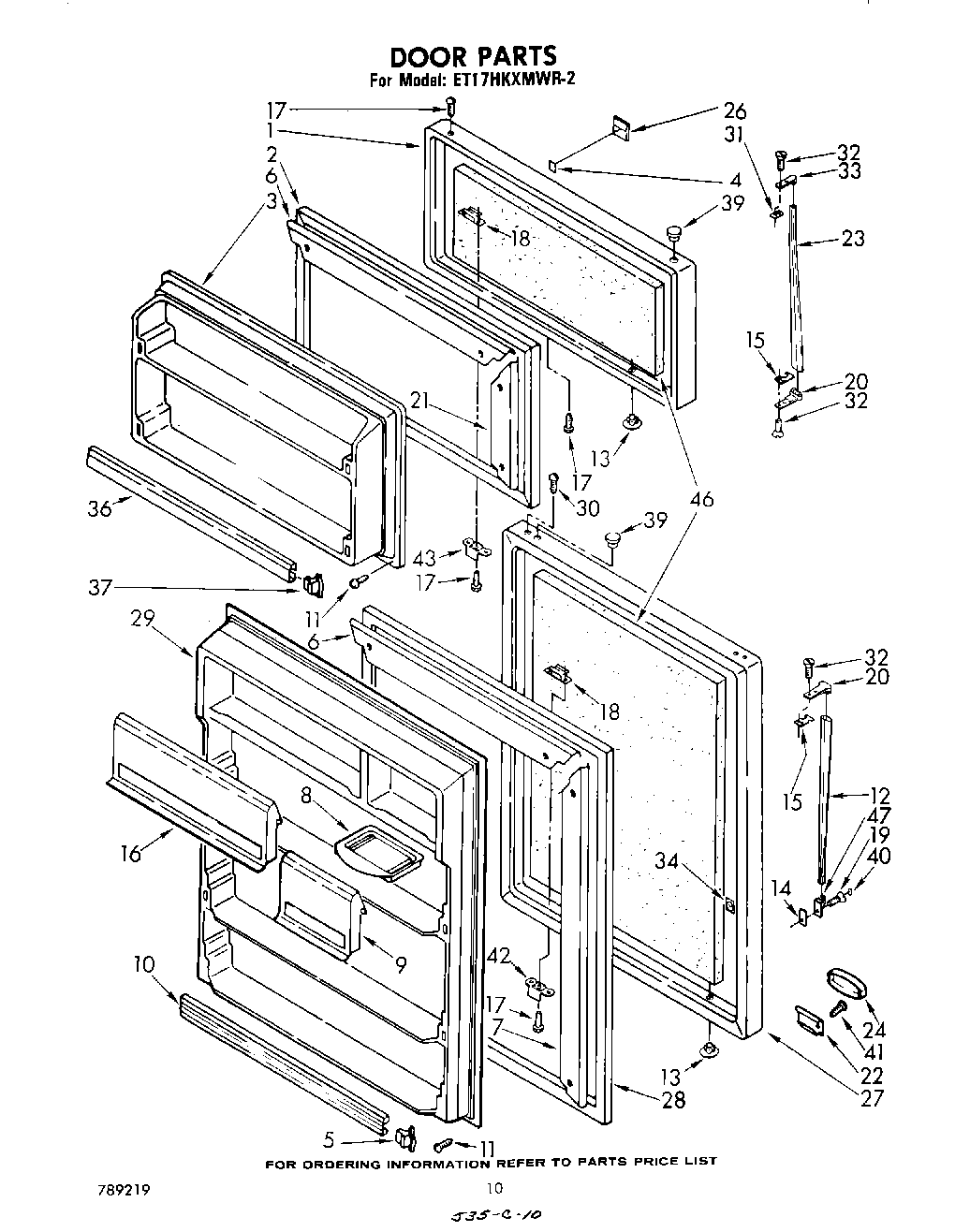

ET17HKXMWR2 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

ET17HKXMWR2 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ET17HKXMWR2 06 – DOOR , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest
Leveler (Thinner)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
1Freezer Door (Toast)
1Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
1Door, Freezer (Also Order Item 36) (New Avocado)
1Door, Freezer (Also Order Item 36) (White)
1Door, Freezer (Also Order Item 36) (Almond)
1Door, Freezer (Also Order Item 36) (Coffee)
1Door, Freezer (Also Order Item 36) (Golden Harvest)
22188460A Whirlpool Refrigerator Door Gasket
3WPL 481966
3Panel, Interior
4Tape Strip
5WP839904 Whirlpool Refrigerator Endcap Trim
6Retainer, Gasket Top
7Retainer, Gasket Side
9Door, Butter
10Trim, Door Shelf
11SCREW
11W11624204 Whirlpool Screw
12Handle, Center
13Hole Plug (2)
14Shim, Handle End
15Spa
16Door, Utility
17WP488921 Whirlpool Refrigerator Screw
18W10833053 Whirlpool Refrigerator Plate
19WP488729 Whirlpool Refrigerator Door Screw
20WP2191883 Whirlpool Refrigerator Handle Endcap
21Retainer Gasket Side
22Clip, Medallion
23WPL 982944
24Medallion (Golden Harvest)
24Medallion (White)
24Medallion (New Avocado)
24Medallion (Almond)
24Medallion (Toast)
24Medallion (Coffee)
24Medallion (Platinum)
26Insert, Nameplate
27Door, Refrigerator (Almond)
27Door, Refrigerator (Toast)
27Door, Refrigerator (New Avocado)
27Refrigerator Door (Platinum)
27Door, Refrigerator (Coffee)
27Door, Refrigerator (White)
27Door, Refrigerator (Golden Harvest)
282188450A Whirlpool Refrigerator Door Gasket
29Panel, Inte
29Interior, Door Panel
30Screw (Repair)
30WP8281206 Whirlpool Refrigerator Screw
31Shim, Handle
32WP488920 Whirlpool Refrigerator Screw
32Screw (Repair)
33WP2191882 Whirlpool Refrigerator Handle End Cap
34WP939101 Whirlpool Refrigerator Plate
36WPL 837789
37WP839975 Whirlpool Refrigerator Endcap Trim
39WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
39Hole Plug (New Avocado)
39Hole Plug (Toast)
39Hole Plug (Almond)
39Hole Plug (Platinum)
39Hole Plug (Coffee)
40WP1101634 Whirlpool Refrigerator Cover
42Bracket, Door Stop
43Bracket, Door Stop
47Golden Harvest (Uncut)
47WPL 72112
47511873 Whirlpool Refrigerator Paint
47Platinum (Uncut)
47Enamal, Toast (1 Qt. Uncut)
4772113 Whirlpool Touch-Up Paint
47212643 Whirlpool Refrigerator Permagum Sealer
4772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47WPL 946862
47WPL 789219
47WPL 1100859
4772017 Whirlpool Appliance Touch-Up Paint White
47WPL 945241
47799344 Whirlpool Refrigerator Paint
47WP72107 Whirlpool Touchup
47Almond (Uncut)
47606755 Whirlpool Refrigerator Bag
47876370 Whirlpool Refrigerator Insulation
47Enamel, New Avocado (1 Qt. Uncut)
47WPL 942935
47Paint, Touch-Up 1/2 Oz. (Coffee)
4772109 Whirlpool Dacor Avocado Touch-Up Paint
4772032 Whirlpool Touch Up Paint Black
47WPL 876029
47WPL 799833
47WPL 799832
47Enamel, Black (1 Qt. Uncut)
47CEMENT, ALUMILASTIC (1 1/4 OZ.)
47WP2183139 Whirlpool Refrigerator Handle End Cap
47TAPE, VINYL (3/4 X 108“)
47WP542638 Whirlpool Refrigerator Grease
47WPL 799351
47WP503695 Whirlpool Refrigerator Sealer
47Enamel, Coffee (1 Qt. Uncut)
