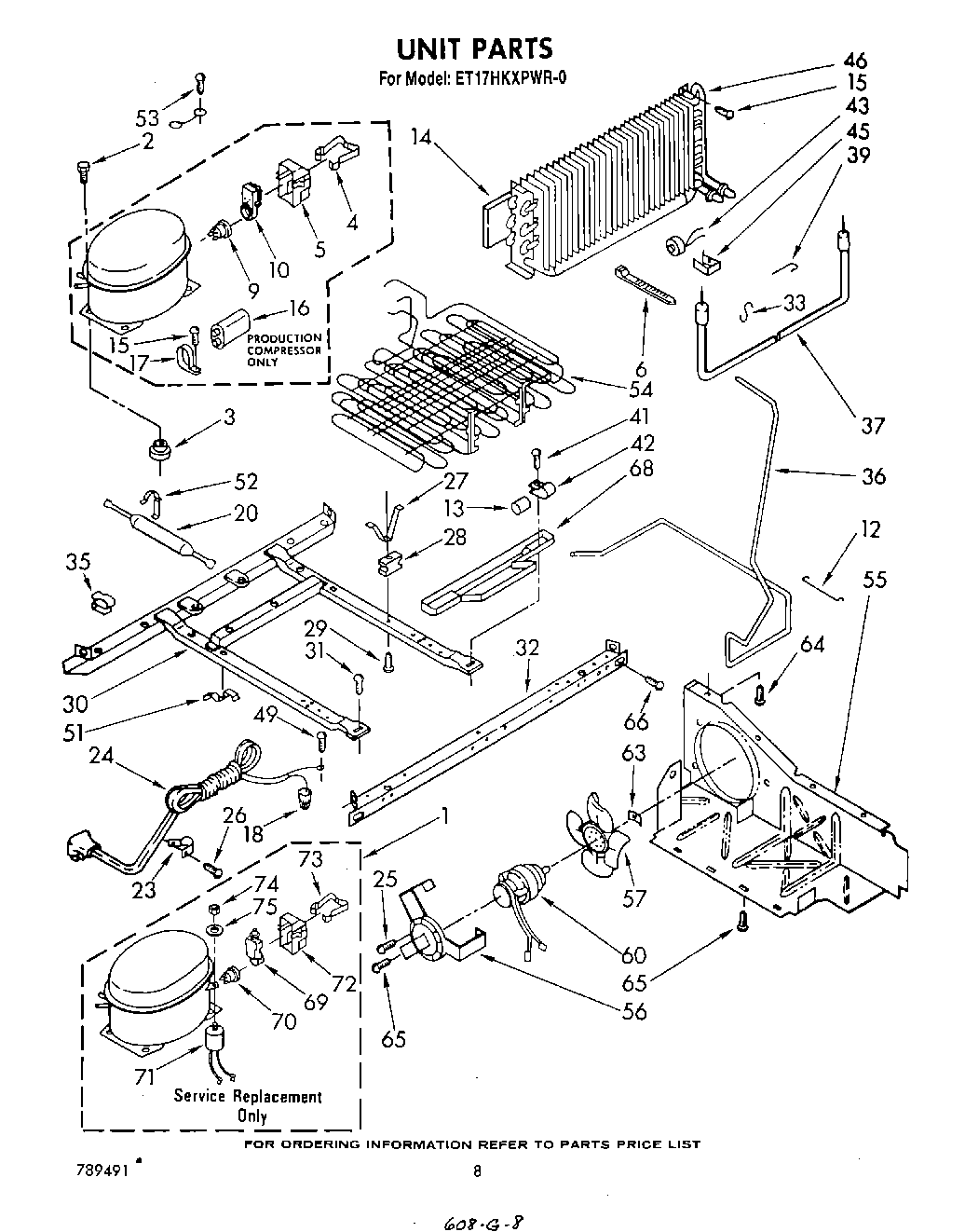

ET17HKXPWR0 05 – UNIT

Products

PositionProduct
1Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
3876811 Whirlpool Grommet
6Strap
9Overload
12Guard, Fan
13Dampener (2)
14Baffle, Air
15WP489128 Whirlpool Refrigerator Screw
16Running Capacitor
17Clamp, Capacitor
18Wire Connector
20W10843121 Whirlpool Refrigerator Tube
23549193 Whirlpool Refrigerator Power Clamp
24Cord, Service
25681390 Whirlpool Refrigerator Screw
27Clamp (4)
28Grommet (4)
29W11624204 Whirlpool Screw
30Frame
31Screw, 1/4-28 x 1/2 (2)
32Rail, Front
33Support, Heater
35Clip, Wire (2)
36Exchanger, Heat
37Heater, Defrost
39Clip, Heater (2)
41WPW10141625 Whirlpool Refrigerator Screw Assembly
42Clamp Tube
43WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
45Clamp
46Evaporator
49Screw, 8-32 x 3/8
51Clip (2)
52Clamp
53303776 Whirlpool Dishwasher Screw
54Condenser & Precooler
55Baffle
56Bracket, Motor
57Fan, Blade
60833697 Whirlpool Condenser Fan Motor
63WP486692 Whirlpool Refrigerator Nut
64Screw, 8-32 x 1/2
65Screw, 8 x 3/8
66489340 Whirlpool Refrigerator Screw
68Pan, Drip
69Relay
70Overload
71Capacitor
72Cover, Terminal
73Strap
74Nut
75VALVE, ACCESS (1/2“)
75Washer
75978030 Whirlpool Refrigerator Valve
75978027 Whirlpool Refrigerator Primary Valve
75978026 Whirlpool Refrigerator Primary Valve
75876764 Whirlpool Refrigerator Primary Valve
75VALVE, ACCESS (5/8“)
75WP978025 Whirlpool Refrigerator Valve
