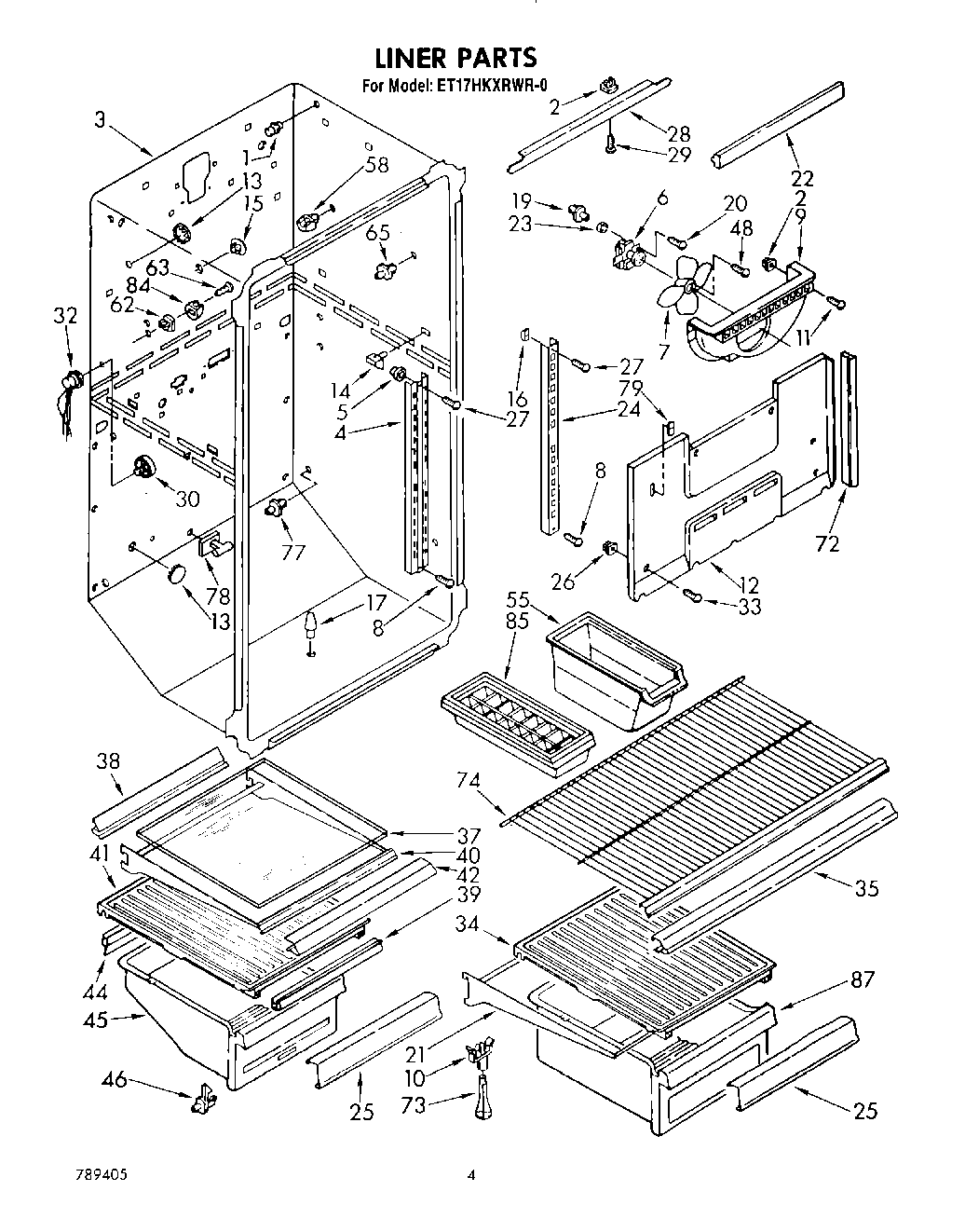

ET17HKXRGR0 03 – LINER

Products

Position	Product
1	Stud
2	Grommet
3	Liner (Not A Serviceable Part)
4	Shelf, Ladder Center
5	Screw Support, Center Ladder (2)
6	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
7	WP1100938 Whirlpool Refrigerator Fan Blade
8	Screw (Repair)
8	Screw, 8-32 x 1-1/4
9	Scroll, Fan
10	Support, Cover
11	W11624204 Whirlpool Screw
12	Cover, Evaporator
13	Hole, Plug
14	Retainer, Stud (4)
15	Hole, Plug
16	520965 Whirlpool Refrigerator Support
17	Grommet, Crisper Cover
19	Screw, Grommet
20	WP488488 Whirlpool Refrigerator Screw
21	Pan Shelf
22	Gasket, Sealing
23	Grommet
24	Shelf, Ladder (2)
25	Overlay, Pan
26	Grommet
27	Screw, 8 x 1-1/4 (3)
28	Baffle, Liner Top
29	WP489069 Whirlpool Compactor Screw
30	Receptacle Cap
32	Wiring, Ice Maker
34	Cover, Meat Pan
35	Trim, Shelf
37	Glass, Shelf
38	Retainer, Shelf
39	Crisper, Gasket Front
40	Shelf Cantilever
41	Pan, Slide & Cover (2)
42	Trim, Shelf
44	Crisper Gasket, Rear
45	Pan, Crisper (2)
46	Shelf, Stud
48	WP487887 Whirlpool Refrigerator Screw
55	WP982704 Whirlpool Refrigerator Container
58	Shelf Stud Saddle (R.S.)
62	Screw Grommet
63	WP488729 Whirlpool Refrigerator Door Screw
65	Shelf, Stud (2)
72	Gasket, Cover (2) (15-3/4“)
73	Post, Cover
74	Shelf, Freezer
77	Shelf, Stud
78	Stud, Support Rear
79	Hole Plug, Evaporator
84	Shelf Stud, Saddle L.S.
85	WP841180A Whirlpool Microwave Glass Turntable Tray
87	Pan, Meat
