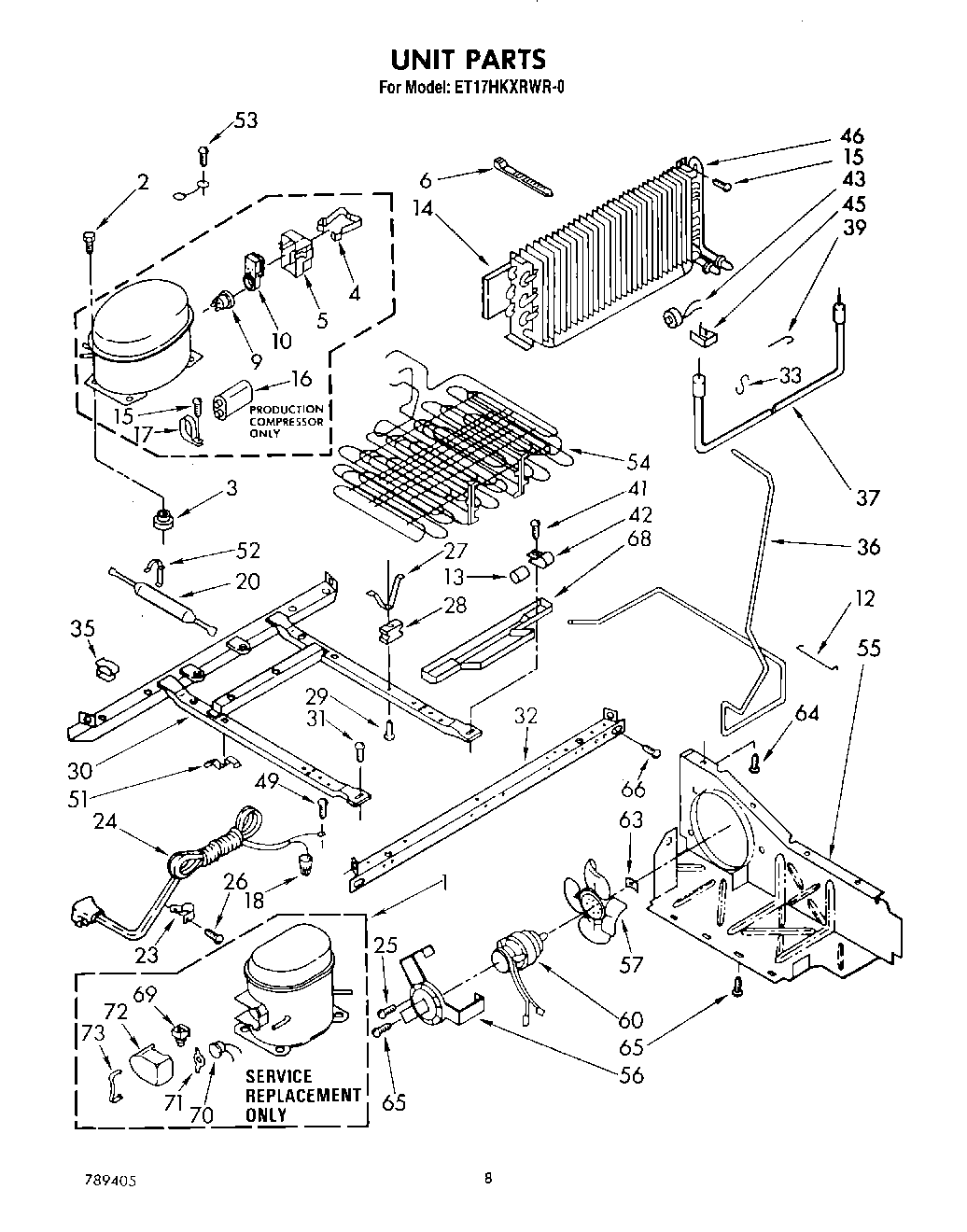

ET17HKXRMR0 05 – UNIT

Products

Position	Product
1	W10439652 Whirlpool Refrigerator Compressor
1	876765 Whirlpool Primary Mounting Kit Refrigerator
3	876811 Whirlpool Grommet
4	Strap
5	Cover, Terminal
6	Strap
9	Overload
10	Relay
12	Guard, Fan
13	Dampener (2)
14	Baffle, Air
15	WP489128 Whirlpool Refrigerator Screw
16	Running Capacitor
17	Clamp, Capacitor
18	Wire Connector
20	W10843121 Whirlpool Refrigerator Tube
23	549193 Whirlpool Refrigerator Power Clamp
24	Cord, Service
25	681390 Whirlpool Refrigerator Screw
27	Clamp (4)
28	Grommet (4)
29	W11624204 Whirlpool Screw
30	Frame
31	Screw, 1/4-28 x 1/2 (2)
32	Rail, Front
33	Support, Heater
35	Clip, Wire (2)
36	Exchanger, Heat
37	Heater, Defrost
39	Clip, Heater (2)
41	WPW10141625 Whirlpool Refrigerator Screw Assembly
42	Clamp Tube
43	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
45	Clamp
46	Evaporator
49	Screw, 8-32 x 3/8
51	Clip (2)
52	Clamp
53	303776 Whirlpool Dishwasher Screw
54	Condenser & Precooler
55	Baffle
56	Bracket, Motor
57	Fan, Blade
60	833697 Whirlpool Condenser Fan Motor
63	WP486692 Whirlpool Refrigerator Nut
64	Screw, 8-32 x 1/2
65	Screw, 8 x 3/8
66	489340 Whirlpool Refrigerator Screw
68	Pan, Drip
69	Relay
70	Overload
71	Spring, Overload
72	Cover, Terminal
73	876764 Whirlpool Refrigerator Primary Valve
73	WP978025 Whirlpool Refrigerator Valve
73	978027 Whirlpool Refrigerator Primary Valve
73	VALVE, ACCESS (5/8“)
73	978030 Whirlpool Refrigerator Valve
73	Cover, Spring
73	VALVE, ACCESS (1/2“)
73	978026 Whirlpool Refrigerator Primary Valve
