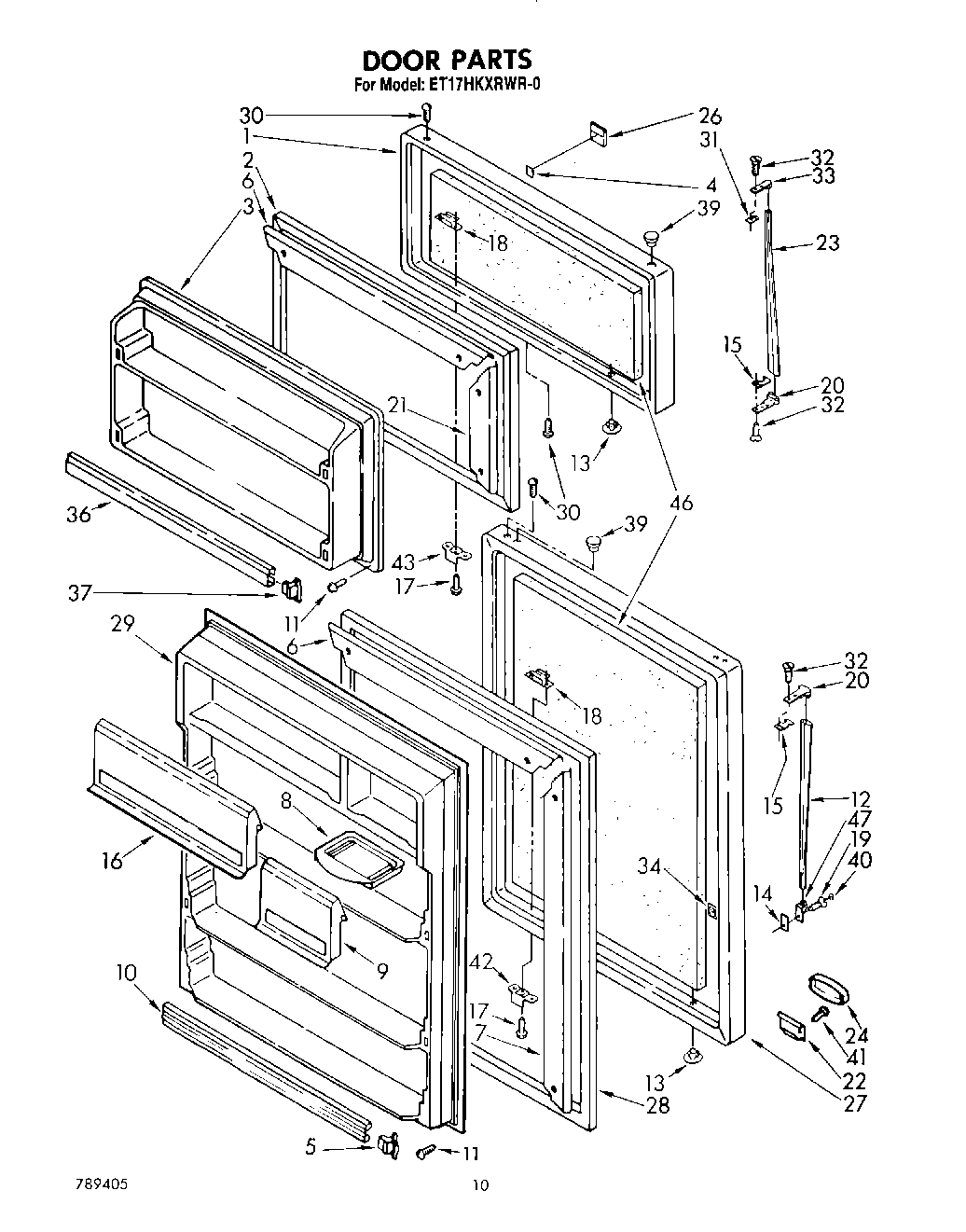

ET17HKXRNR0 06 – DOOR, LIT/OPTIONAL

ET17HKXRNR0 06 – DOOR, LIT/OPTIONAL

Written by

in

ET17HKXRNR0 06 – DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT789405
WPL 677813
WPL 677818
WPL 677821
WPL 677971
WPL 677967
WPL LIT1109123
WPL LIT1109026
WPL LIT1100859
1Freezer Door (Platinum) (Also Order Item 41 When Replacing Door)
1Door, Freezer (Also Order Item 36) (Coffee)
1Freezer Door (Toast)
1Door, Freezer (Also Order Item 36) (White)
1Door, Freezer (Also Order Item 36) (Golden Harvest)
1Door, Freezer (Also Order Item 36) (Almond)
22188460A Whirlpool Refrigerator Door Gasket
3WPL 481966
4Tape Strip
5WP839904 Whirlpool Refrigerator Endcap Trim
6Retainer, Gasket Top
7Retainer, Gasket Side
9Door, Butter
10Trim, Shelf (2)
11SCREW
11WP489069 Whirlpool Compactor Screw
12Handle, Center (Golden Harvest)
12Handle, Center (For Platinum Model Only)
13Hole Plug (2)
14Shim, Handle End
15Spa
16Door, Utility
17WP488921 Whirlpool Refrigerator Screw
18W10833053 Whirlpool Refrigerator Plate
19WP488729 Whirlpool Refrigerator Door Screw
20WP2191883 Whirlpool Refrigerator Handle Endcap
21Retainer Gasket Side
22Clip, Medallion
23Handle, Center (For Platinum Model Only)
23Handle, Center
24Medallion (Golden Harvest)
24Medallion (Coffee)
24Medallion (Toast)
24Medallion (Platinum)
24Medallion (White)
24Medallion (Almond)
26Insert, Nameplate
27Door, Refrigerator (Coffee)
27Door, Refrigerator (White)
27Refrigerator Door (Platinum)
27Door, Refrigerator (Golden Harvest)
27Door, Refrigerator (Toast)
27Door, Refrigerator (Almond)
282188450A Whirlpool Refrigerator Door Gasket
29Interior, Door Panel
30Screw (Repair)
30WP8281206 Whirlpool Refrigerator Screw
31Shim, Handle
32Screw (Repair)
32WP488920 Whirlpool Refrigerator Screw
33WP2191882 Whirlpool Refrigerator Handle End Cap
34WP939101 Whirlpool Refrigerator Plate
36WPL 837789
37WP839975 Whirlpool Refrigerator Endcap Trim
39Hole Plug (Platinum)
39Hole Plug (Toast)
39Hole Plug (Coffee)
39Hole Plug (Almond)
39WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
40WP1101634 Whirlpool Refrigerator Cover
42Bracket, Door Stop
43Bracket, Door Stop
47Enamel, Black (1 Qt. Uncut)
47WP542638 Whirlpool Refrigerator Grease
47Golden Harvest (Uncut)
47WP72107 Whirlpool Touchup
47TAPE, VINYL (3/4 X 108“)
47Leveler (Thinner)
47CEMENT, ALUMILASTIC (1 1/4 OZ.)
47WP505587 Whirlpool Refrigerator Sealer
47WP503695 Whirlpool Refrigerator Sealer
47350942 Whirlpool Spray Paint
47350930 Whirlpool White Spray Paint
47350956 Whirlpool Spray Assembly
4772017 Whirlpool Appliance Touch-Up Paint White
47799344 Whirlpool Refrigerator Paint
47511873 Whirlpool Refrigerator Paint
47606755 Whirlpool Refrigerator Bag
47833938 Whirlpool Refrigerator Terminal
47876370 Whirlpool Refrigerator Insulation
47WPL 799832
47WPL 799833
47Enamel, Coffee (1 Qt. Uncut)
47Golden Harvest
47Enamal, Toast (1 Qt. Uncut)
4772113 Whirlpool Touch-Up Paint
4772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
47Paint, Spray (13 Oz.) (Platinum)
47Toast
47Platinum (Uncut)
47WPL 72112
47Silicone (Spray)
47paint, spray 13 oz. (coffee)
47Paint, Touch-Up 1/2 Oz. (Coffee)
47WP2183139 Whirlpool Refrigerator Handle End Cap
47212643 Whirlpool Refrigerator Permagum Sealer
47285006 Whirlpool Spray
47Almond (Uncut)
47WPL 876029
4772032 Whirlpool Touch Up Paint Black
