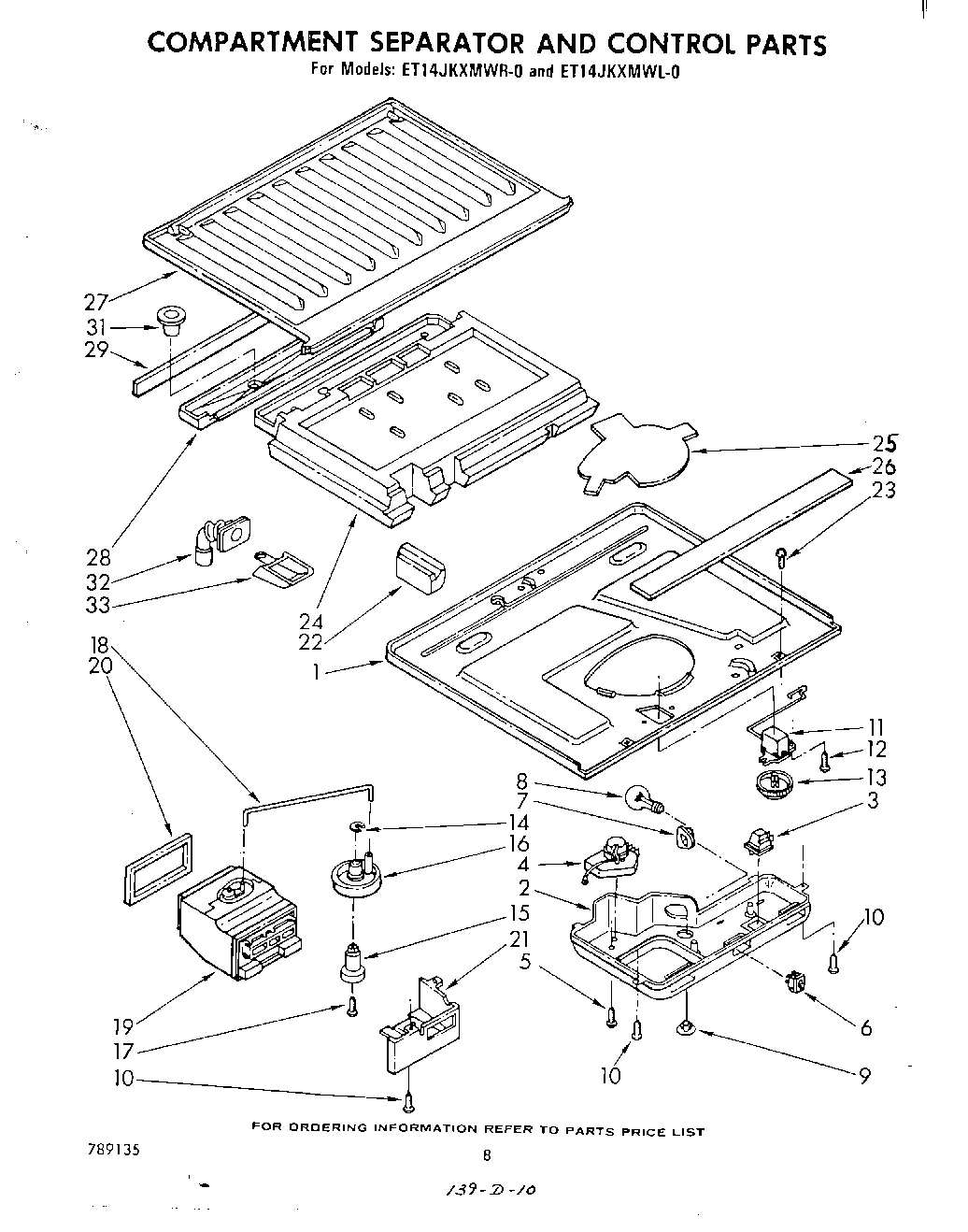

ET17JKXMWR0 05 – COMPARTMENT SEPARATOR AND CONTROL

Products

Position	Product
1	Bottom, Compartment Separator
2	Box, Control
3	W11384469 Whirlpool Door Switch
4	Defrost Timer
5	WP487353 Whirlpool Refrigerator Screw
6	WP938213 Whirlpool Refrigerator Power Switch
7	4387478 Whirlpool Refrigerator Light Socket
8	W11679940 Whirlpool Refrigerator Light Bulb Assembly
9	940014 Whirlpool Refrigerator Primary Button Plug
10	W11624204 Whirlpool Screw
11	WP819470 Whirlpool Refrigerator Thermostat
12	Screw, 8 x 3/8
13	Knob, Thermostat
14	Lockwasher
15	Spacer, Knob
16	Knob, Air Control
17	WP488163 Whirlpool Refrigerator Screw
18	Connecting Rod
19	Air Diffuser
20	Gasket, Air Diffuser
21	Cover, Air Diffuser
22	Rear Corner Block (2)
24	Insulation, Compartment Separator
25	Heat Shield
26	Center Rail, Seal Strip
27	Top, Compartment Separator
28	Drain Pan
29	Gasket, Drain Pan
31	Drain Insert
32	Fitting, Drain
33	Cup, Drain
