ET17JMXMWR0 03 – CABINET

ET17JMXMWR0 03 – CABINET

Written by

in

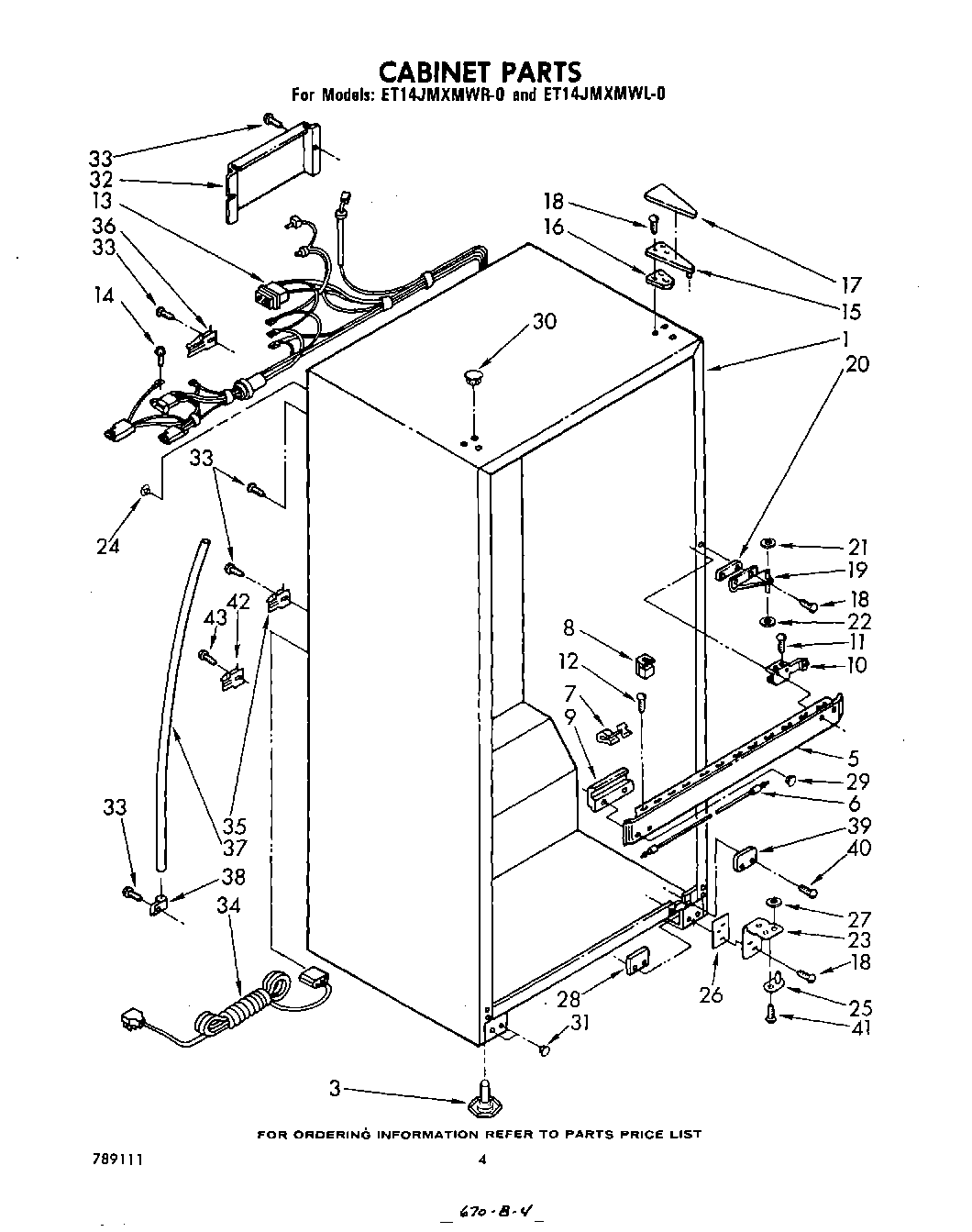

ET17JMXMWR0 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3W11117769 Whirlpool Refrigerator Leveler
5Center Rail (Platinum)
5Center Rail (White)
5Center Rail (Coffee)
5Center Rail (Golden Harvest)
5Center Rail (Toast)
5Center Rail (New Avocado)
5Center Rail (Almond)
6WPL 938278
7Breaker, Trim Clip
8Spacer (2)
9Center, Rail Shim (2)
10Bracket, Center Rail (2)
12WP488729 Whirlpool Refrigerator Door Screw
13Cabinet, Wiring Assembly
14WP489128 Whirlpool Refrigerator Screw
15Hinge, Top
16Shim, Hinge
17Hinge Cover (Golden Harvest)
17Hinge Cover (Toast)
171119787 Whirlpool Refrigerator Hinge Cover
17Hinge, Cover (Coffee)
17Hinge Cover (New Avocado)
18Screw (Repair)
18WP999367 Whirlpool Refrigerator Screw
19Hinge, Center
20Shim, Hinge Center
21WP487802 Whirlpool Refrigerator Washer
23Hinge, Bottom
24WPL 655411
25Hinge Pin, Bottom
26Shim, Bottom Hinge
27WP487576 Whirlpool Washer
28Tap Plate, Bottom
29Hole Plug (2) (Coffee)
29Hole Plug (2) (Toast)
29Hole Plug (2) (Golden Harvest)
29WPL 940090
29Hole Plug (2)
29Hole Plug (2) (Platinum)
29Hole Plug (2) (Almond)
30Hole Plug (2) (Golden Harvest)
30Hole Plug (2) (White)
30Hole Plug (2) (Almond)
30Hole Plug (New Avocado)
30Hole Plug (Coffee)
30Hole Plug (3) (Toast)
30Hole Plug (3) (Platinum)
31Hole Plug (2) (Golden Harvest)
31Hole Plug (2) (Toast)
31WPL 941416
31Hole, Plug (2) (Almond)
31Hole Plug (2) (Platinum)
31Plug Button (2) (Coffee)
31Plug Button (2) (New Avocado)
32Cover, Wiring
33W11624204 Whirlpool Screw
34Cord, Service
35549193 Whirlpool Refrigerator Power Clamp
36Clamp
378316810 Whirlpool Refrigerator Drain Tube
38488946 Whirlpool Air Conditioner Clamp
39WPL 935710
39Tube, Rail Cover (Golden Harvest)
39Tube, Rail Cover (Almond)
39Tube, Rail Cover (Platinum)
39Tube, Rail Cover (Toast)
39Tube, Rail Cover (Coffee)
39Tube, Rail Cover (White)
40Screw
41Screw 10-32 x 5/16
42Clamp
43WP489069 Whirlpool Compactor Screw
