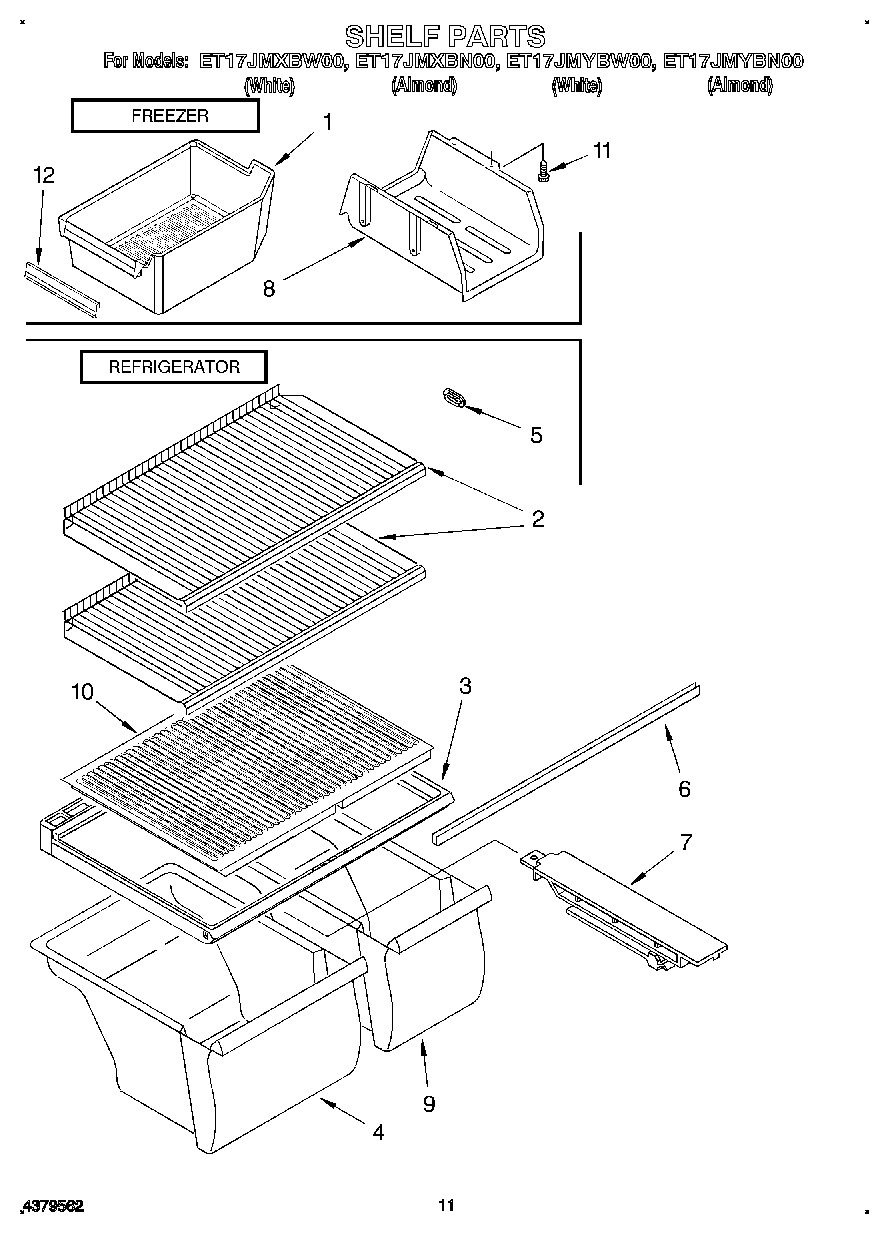

ET17JMYBW00 06 – SHELF, LIT/OPTIONAL

Products

Position	Product
	Modular Icemaker Service Sheet
	Torx Key
	Use & Care Guide
	WPL LIT2166248
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT677971
	WPL LIT2166260
1	PAN-ICE
2	Shelf, Wire (2)
3	WP2314548 Whirlpool Refrigerator Cover
4	W10854037 Whirlpool Refrigerator Crisper Pan
5	Plug, Shelf Cup
6	WP2172748 Whirlpool Drawer Support
7	WP2163835 Whirlpool Track Assembly
8	Shelf, Ice Tray
9	W10856580 Whirlpool Crisper Pan
10	Insert, Crisper Cover
11	WP489442 Whirlpool Refrigerator Screw
12	WPL 799832
12	511873 Whirlpool Refrigerator Paint
12	Trim Ice Cube Pan
12	350942 Whirlpool Spray Paint
12	Door Reversal Instructions
12	212643 Whirlpool Refrigerator Permagum Sealer
12	Almond (Uncut)
12	WP72107 Whirlpool Touchup
12	799344 Whirlpool Refrigerator Paint
12	72017 Whirlpool Appliance Touch-Up Paint White
12	350956 Whirlpool Spray Assembly
12	606755 Whirlpool Refrigerator Bag
12	833938 Whirlpool Refrigerator Terminal
12	WPL 799833
12	WPL 876029
12	CEMENT, ALUMILASTIC (1 1/4 OZ.)
12	WP542638 Whirlpool Refrigerator Grease
12	WP505587 Whirlpool Refrigerator Sealer
12	WP503695 Whirlpool Refrigerator Sealer
12	876370 Whirlpool Refrigerator Insulation
12	TAPE, VINYL (3/4 X 108``)
12	285006 Whirlpool Spray
12	72032 Whirlpool Touch Up Paint Black
12	350930 Whirlpool White Spray Paint
