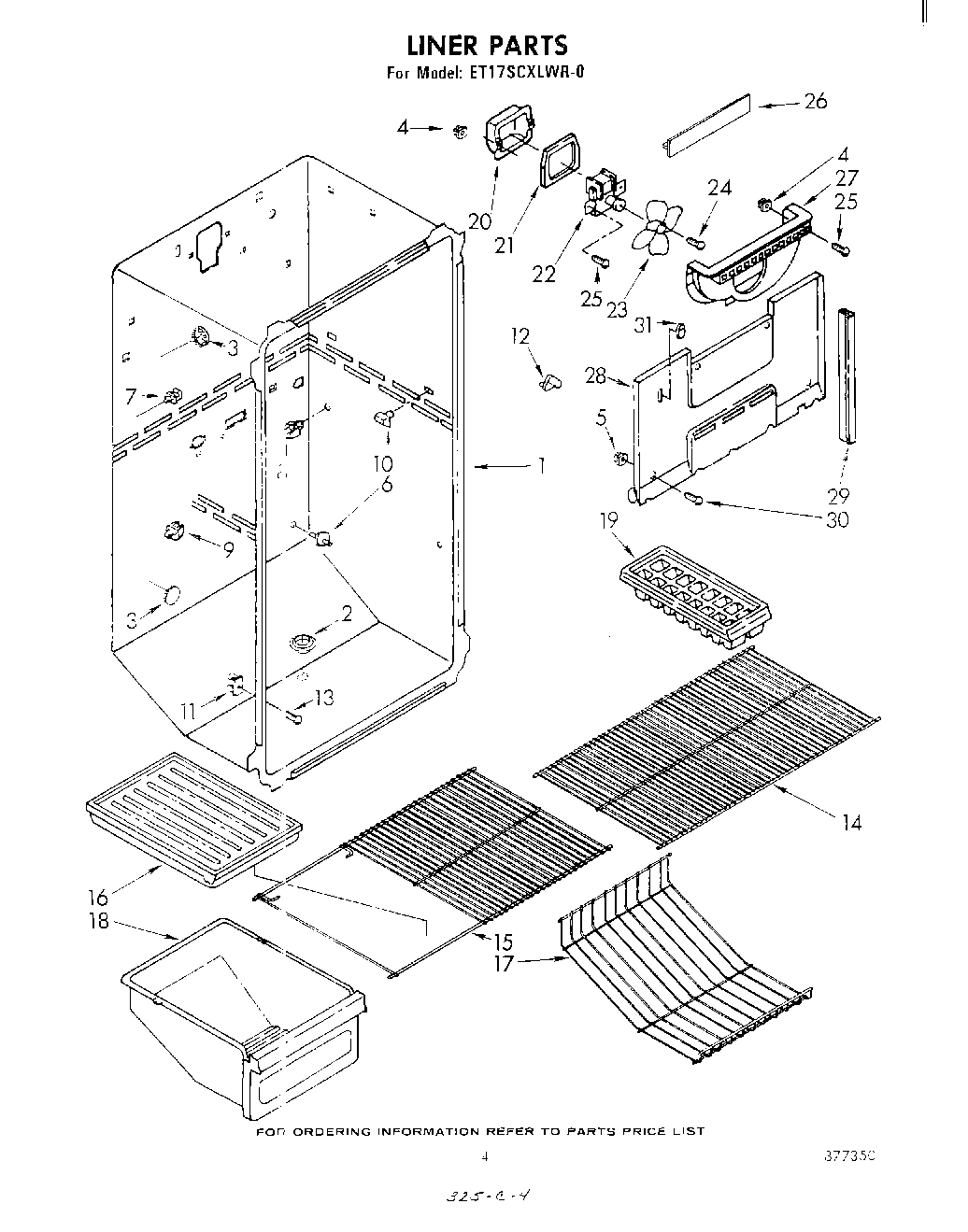

| 1 | Liner (Not A Serviceable Part) |
| 2 | Drain Cover |
| 3 | Hole, Plug |
| 4 | Grommet |
| 5 | Grommet |
| 6 | Stud, Hook (2) |
| 7 | Shelf Stud (6) |
| 8 | Shelf Stud Saddle (R.S.) |
| 9 | Shelf Stud, Saddle |
| 10 | Retainer, Stud (4) |
| 11 | Spacer, Liner (8) |
| 12 | Spacer, Liner (2) |
| 13 | WP488163 Whirlpool Refrigerator Screw |
| 14 | Shelf Wire (2) |
| 15 | Pan, Shelf Wire |
| 16 | Cover, Pan Slide (2) |
| 17 | Trivet |
| 18 | Pan, Plastic |
| 19 | WP841180A Whirlpool Microwave Glass Turntable Tray |
| 20 | Cover, Motor |
| 21 | Gasket, Motor Cover |
| 22 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 23 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 24 | WP487887 Whirlpool Refrigerator Screw |
| 25 | W11624204 Whirlpool Screw |
| 26 | Gasket, Sealing |
| 27 | Scroll, Fan |
| 28 | Cover, Evaporator |
| 29 | Gasket, Cover (2) (15-3/4``) |
| 30 | WP488729 Whirlpool Refrigerator Door Screw |
| 31 | Hole Plug, Evaporator |
