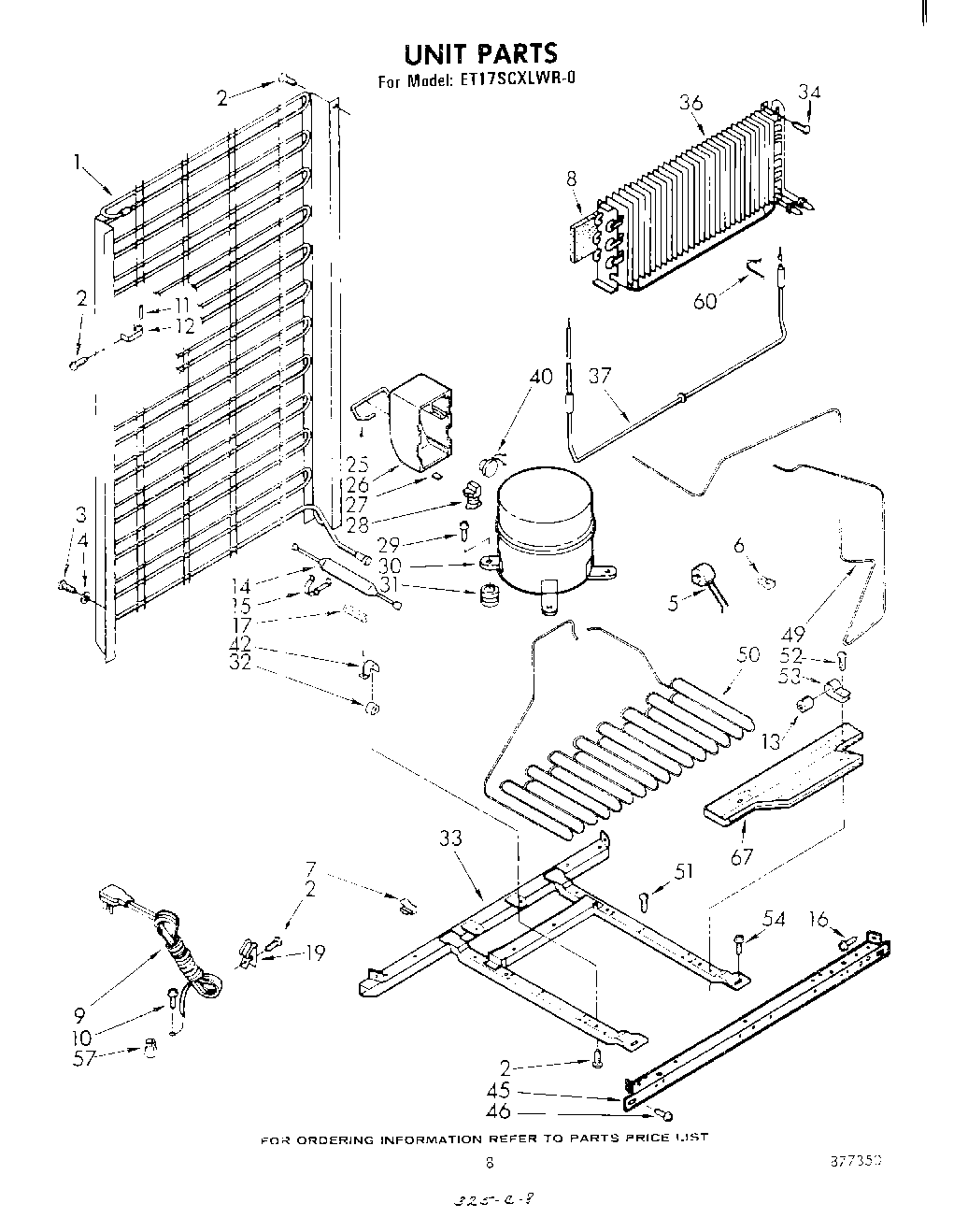

ET17SCXLWR0 05 – UNIT

Products

Position	Product
1	Condenser
2	W11624204 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	Bumper, Rubber
5	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
6	Clamp
7	Clip, Wire (2)
8	Baffle, Air
9	Cord, Service
10	Screw, 8-32 x 3/8
11	Dampener
12	Clip, Dampener
13	Dampener (2)
14	W10843121 Whirlpool Refrigerator Tube
15	Drier Clamp
17	Restrictor Sleeve
19	549193 Whirlpool Refrigerator Power Clamp
25	Spring
26	Case, Relay
27	Bumper
28	Relay (Alternate)
28	Relay
29	Screw, 1/4-28 x 1“ (4)
30	Compressor
31	Grommet (4)
32	Grommet (4)
33	Frame
34	W11693756 Whirlpool Screw Assembly
36	Evaporator
37	Heater, Defrost
40	Overload
42	Clamp, Tube
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
49	Exchanger, Heat
50	Precooler
51	303776 Whirlpool Dishwasher Screw
52	WPW10141625 Whirlpool Refrigerator Screw Assembly
53	Clamp Tube
54	Screw, 1/4-28 x 1/2 (2)
57	Wire Connector
60	Clip, Heater (2)
67	978027 Whirlpool Refrigerator Primary Valve
67	978030 Whirlpool Refrigerator Valve
67	978026 Whirlpool Refrigerator Primary Valve
67	WP978025 Whirlpool Refrigerator Valve
67	VALVE, ACCESS (5/8“)
67	Pan, Drip
67	VALVE, ACCESS (1/2“)
