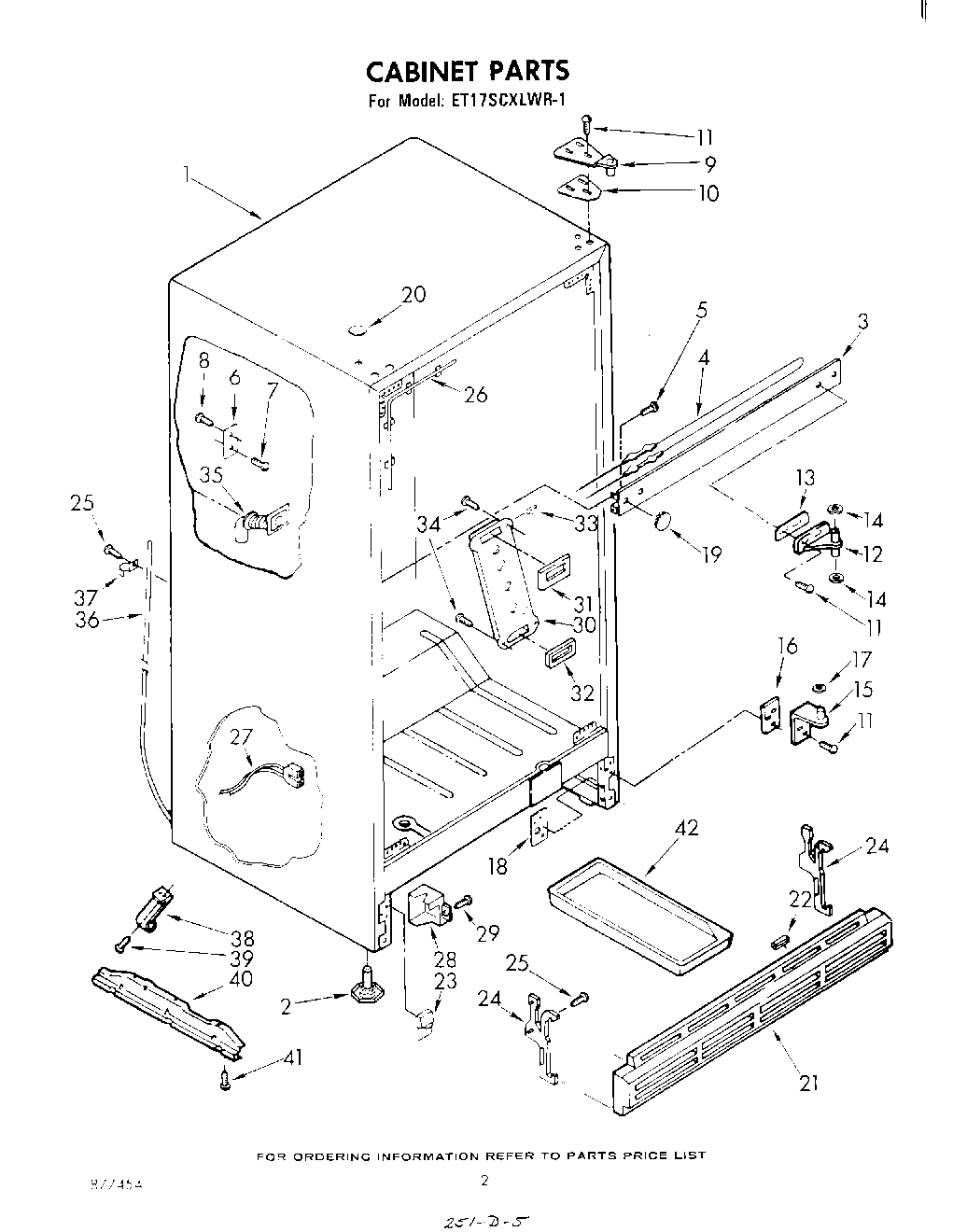

ET17SCXLWR1 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Leveler (2)
3	Center Rail (White)
4	Heater, Mullion
5	Screw, 8 x 3/8
5	Screw (Repair)
6	Strap, Ground
7	WP489128 Whirlpool Refrigerator Screw
8	Screw, 8-32 x 1-1/2
9	Hinge, Top
10	WPL 836151
11	WP999367 Whirlpool Refrigerator Screw
11	Screw (Repair)
12	Hinge, Center
13	Shim, Hinge Center
14	WP488296 Whirlpool Washer Refrigerator
15	Hinge (Bottom)
16	Shim, Bottom Hinge
17	WP487802 Whirlpool Refrigerator Washer
18	Tap Plate
19	Hole, Plug (White)
20	Hole Plug (2) (White)
21	Exterior, Grille
22	Bumper, Grille
23	Fill, Grille
24	WPL 844614
25	W11624204 Whirlpool Screw
26	Stile, Heater
27	WPL 548734
28	WPL 549947
29	WP488729 Whirlpool Refrigerator Door Screw
30	Duct, Air
31	Gasket Inlet
32	Gasket Outlet
33	Nut, Speed (4)
34	WP98165 Whirlpool Screw
35	WPL 942546
36	8316810 Whirlpool Refrigerator Drain Tube
37	WPL 836077
38	Drain, Clamp Deck
40	WPL 843164
41	Screw, 8-32 x 1/2
42	Tray, Evaporator
