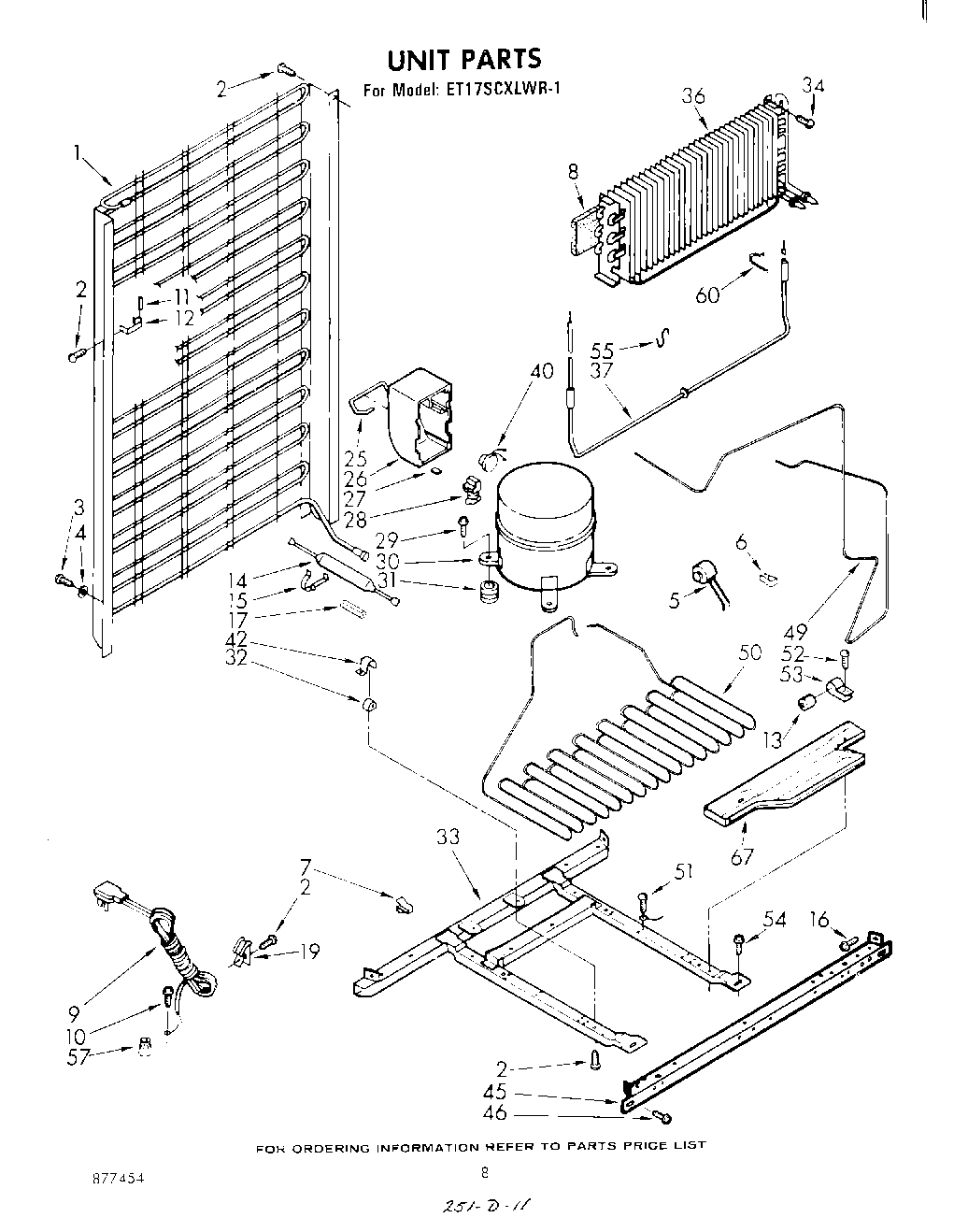

| 1 | Condenser Assembly |
| 2 | W11624204 Whirlpool Screw |
| 3 | WP488729 Whirlpool Refrigerator Door Screw |
| 4 | Bumper, Rubber |
| 5 | WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat |
| 6 | Clamp |
| 7 | Clip, Wire (2) |
| 8 | Baffle, Air |
| 9 | Cord, Service |
| 10 | Screw, 8-32 x 3/8 |
| 11 | Dampener |
| 12 | Clip, Dampener |
| 13 | Dampener (2) |
| 14 | W10843121 Whirlpool Refrigerator Tube |
| 15 | Drier Clamp |
| 17 | Restrictor Sleeve |
| 19 | 549193 Whirlpool Refrigerator Power Clamp |
| 25 | Spring |
| 26 | Case, Relay |
| 27 | Bumper |
| 28 | Relay |
| 28 | Relay (Alternate) |
| 29 | Screw, 1/4-28 x 1`` (4) |
| 30 | Compressor |
| 31 | Grommet (4) |
| 32 | Grommet (4) |
| 33 | Frame |
| 34 | W11693756 Whirlpool Screw Assembly |
| 36 | Evaporator |
| 37 | Heater, Defrost |
| 40 | Overload |
| 42 | Clamp, Tube |
| 45 | Rail, Front |
| 46 | 489340 Whirlpool Refrigerator Screw |
| 49 | Exchanger, Heat |
| 50 | Precooler Assembly |
| 51 | 303776 Whirlpool Dishwasher Screw |
| 52 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 53 | Clamp Tube |
| 54 | Screw, 1/4-28 x 1/2 (2) |
| 55 | Support, Heater |
| 57 | Wire Connector |
| 60 | Clip, Heater (2) |
| 67 | Pan, Drip |
| 67 | 978026 Whirlpool Refrigerator Primary Valve |
| 67 | VALVE, ACCESS (1/2``) |
| 67 | WP978025 Whirlpool Refrigerator Valve |
| 67 | 978030 Whirlpool Refrigerator Valve |
| 67 | 978027 Whirlpool Refrigerator Primary Valve |
| 67 | VALVE, ACCESS (5/8``) |
