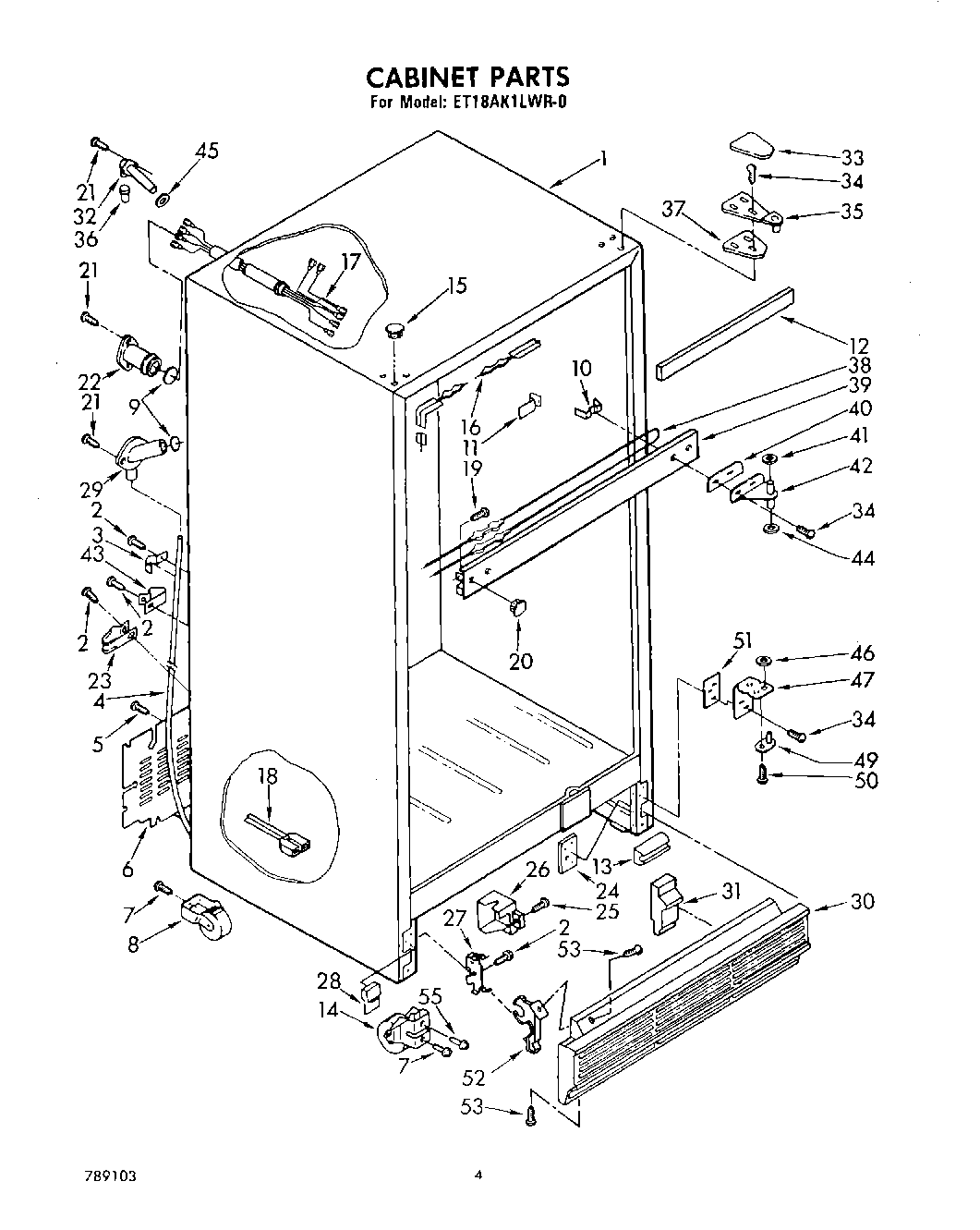

ET18AK1LWR0 03 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W11624204 Whirlpool Screw
3WPL 836077
48316810 Whirlpool Refrigerator Drain Tube
6Cover
7Screw, 1/4-28 x 1/2 (2)
8WPW10250570 Whirlpool Refrigerator Cabinet Roller
9Gasket, Seal
10WPL 942478
11WPL 935663
12WPL 987524
13Bumper, Grille
14Roller, Front
15Hole Plug (Coffee)
15Hole Plug (New Avocado)
15Hole Plug (3) (Toast)
15Hole Plug (3) (Platinum)
15Hole Plug (2) (Golden Harvest)
15Hole Plug (2) (White)
15Hole Plug (2) (Almond)
16Heater, Stile
17Cabinet Wiring Assembly
18WPL 548734
19Screw (Repair)
19Screw, 8 x 3/8
20Plug, Hole (2) (Toast)
20Hole Plug (New Avocado)
20Hole Plug (Golden Harvest)
20Hole Plug (Coffee)
20Hole, Plug (Almond)
20Hole Plug (2) (Platinum)
20Hole, Plug (White)
21WP98165 Whirlpool Screw
22Tunnel, Wiring
23Clamp
24Tap Plate
25WP488729 Whirlpool Refrigerator Door Screw
26WPL 549947
27WPL 989068
28Filler, Grille (Platinum)
28Filler, Grille (Toast)
28Corner, Filler (
28WPL 989931
28WPL 989930
28WPL 989929
28WPL 989928
29Drain Fitting
30Grille (Almond)
30Grille (Golden Harvest)
30Grille (New Avocado)
30Grille (Coffee)
30Grille (White)
30Grille (Toast)
30Grille (Platinum)
31WPL 836372
32WP2196157 Whirlpool Fill Tube
331119787 Whirlpool Refrigerator Hinge Cover
33Hinge Cover (Golden Harvest)
33Hinge Cover (Toast)
33Hinge Cover (New Avocado)
33Hinge, Cover (Coffee)
34WP999367 Whirlpool Refrigerator Screw
34Screw (Repair)
35Hinge, Top
36WP487996 Whirlpool Refrigerator Cap Tube
37Shim, Hinge
38WPL 941681
39WPL 1100171
39WPL 1100170
39WPL 989905
39WPL 836066
39WPL 989906
39WPL 989907
39WPL 989191
40Shim, Hinge Center
41WP488296 Whirlpool Washer Refrigerator
42Hinge, Center
43Clamp, Cord (2)
44WP487802 Whirlpool Refrigerator Washer
45WP1106508 Whirlpool Refrigerator Gasket
47Hinge, Bottom
49Hinge Pin, Bottom
50Screw 10-32 x 5/16
51Shim, Bottom Hinge
52WP944224 Whirlpool Refrigerator Support
53WPL 489085
55Screw, 5/16-24 x 1
