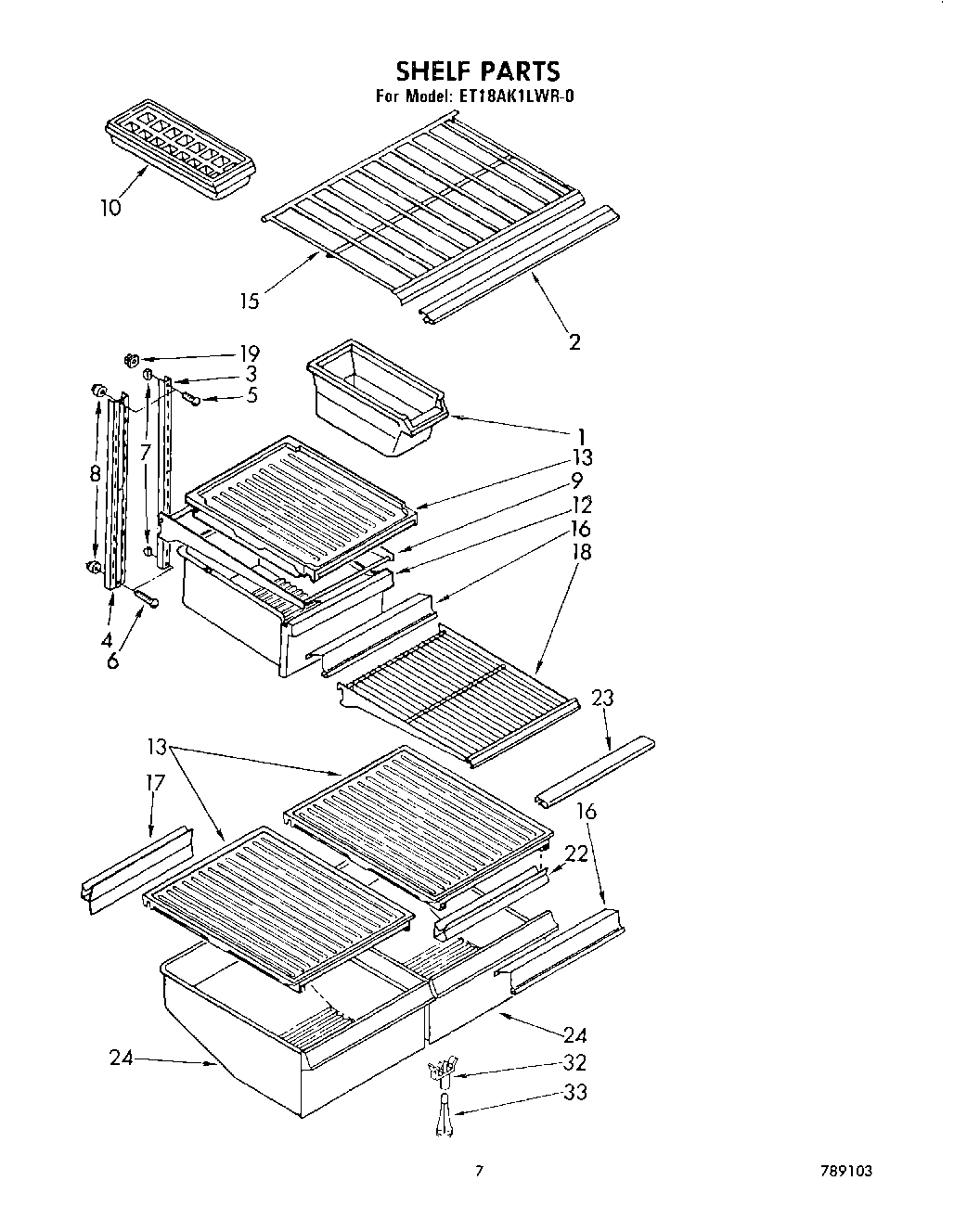

ET18AK1LWR0 05 – SHELF

Products

Position	Product
1	WP982704 Whirlpool Refrigerator Container
2	Trim, Shelf
3	Shelf, Ladder (2)
4	Shelf, Ladder Center
5	Screw, 8 x 1-1/4 (3)
6	Screw, 8-32 x 1-1/4
6	Screw (Repair)
7	520965 Whirlpool Refrigerator Support
8	Screw Support, Center Ladder (2)
9	Pan Shelf, Cantilever
10	WP841180A Whirlpool Microwave Glass Turntable Tray
12	Pan, Meat
12	Pan, Meat (For Platinum Model Only)
13	Cover, Pan Slide (3)
15	Shelf, Freezer
16	Overlay (3)
17	Gasket, Rear
18	Shelf (3)
19	Grommet
22	Gasket, Front
23	Trim, Shelf
24	Pan, Crisper (2)
24	Pan, Crisper (2) (For Platinum Model Only)
32	Support, Cover
33	Post, Cover
