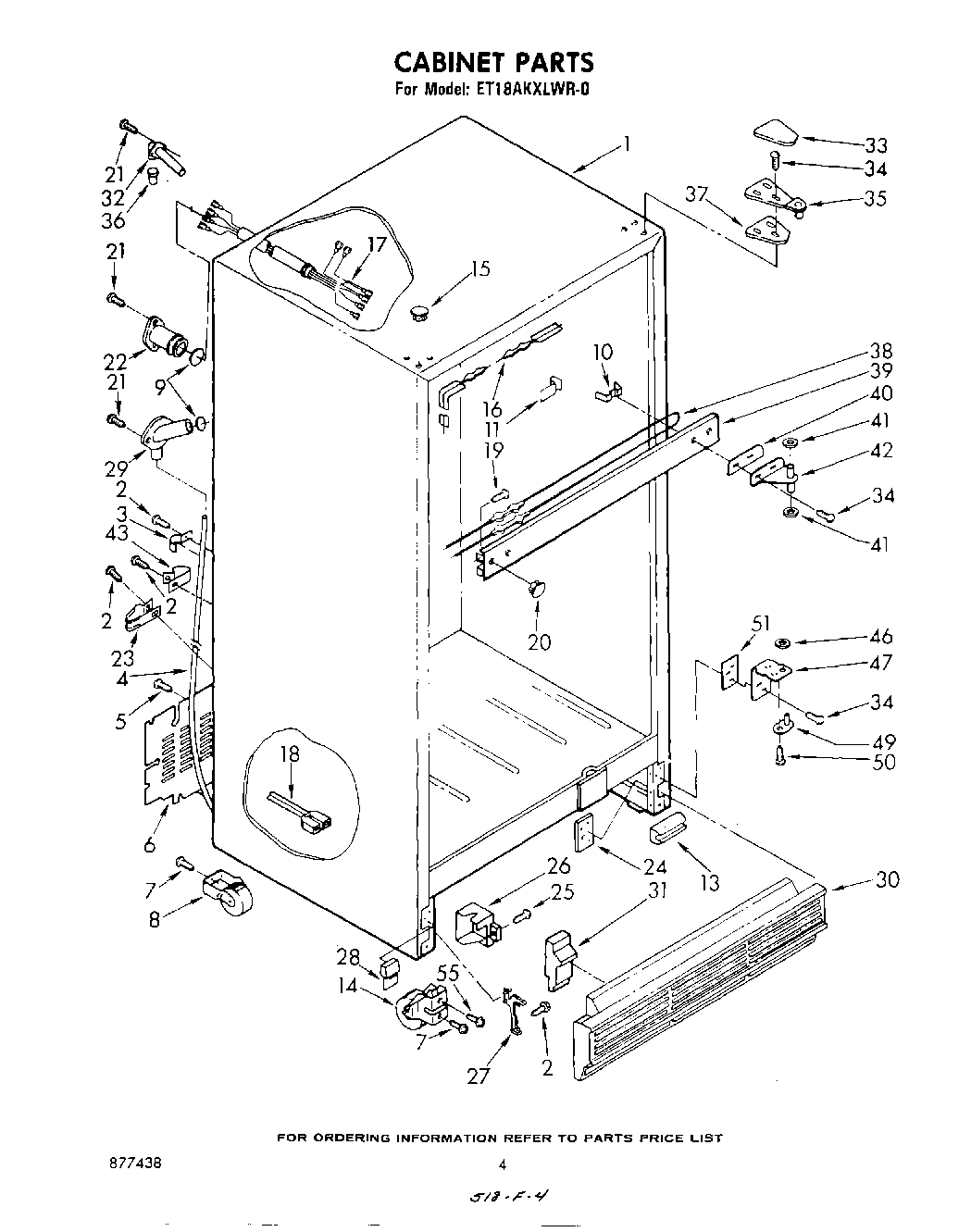

ET18AKXLWR0 03 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	WPL 836077
4	8316810 Whirlpool Refrigerator Drain Tube
6	Cover
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	Gasket, Seal
10	WPL 942478
11	WPL 935663
13	Bumper, Grille
14	Roller, Front
15	Hole Plug (New Avocado)
15	Hole Plug (Coffee)
15	Hole Plug (2) (White)
15	Hole Plug (2) (Golden Harvest)
15	Hole Plug (2) (Almond)
16	Heater, Stile
17	Cabinet Wiring Assembly
18	WPL 548734
19	Screw, 8 x 3/8
19	Screw (Repair)
20	Hole Plug (Golden Harvest)
20	Hole Plug (New Avocado)
20	Hole Plug (Coffee)
20	Hole, Plug (Almond)
20	Hole, Plug (White)
21	WP98165 Whirlpool Screw
22	Tunnel, Wiring
23	Clamp
24	Tap Plate
25	WP488729 Whirlpool Refrigerator Door Screw
26	WPL 549947
27	WPL 844614
28	WPL 989931
28	WPL 989930
28	WPL 989929
28	Corner, Filler (
28	WPL 989928
29	Drain Fitting
30	Grille (Coffee)
30	Grille (New Avocado)
30	Grille (Golden Harvest)
30	Grille (White)
30	Grille (Almond)
31	WPL 836372
32	WP2196157 Whirlpool Fill Tube
33	Hinge Cover (New Avocado)
33	Hinge, Cover (Coffee)
33	1119787 Whirlpool Refrigerator Hinge Cover
33	Hinge Cover (Golden Harvest)
34	WP999367 Whirlpool Refrigerator Screw
34	Screw (Repair)
35	Hinge, Top
36	WP487996 Whirlpool Refrigerator Cap Tube
37	WPL 836151
38	WPL 941681
39	WPL 989905
39	WPL 989906
39	WPL 836066
39	WPL 989907
39	WPL 989191
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	Hinge, Center
43	Clamp, Cord (2)
46	WP487802 Whirlpool Refrigerator Washer
47	Hinge, Bottom
49	Hinge Pin, Bottom
50	Screw 10-32 x 5/16
51	Shim, Bottom Hinge
55	Screw, 5/16-24 x 1
