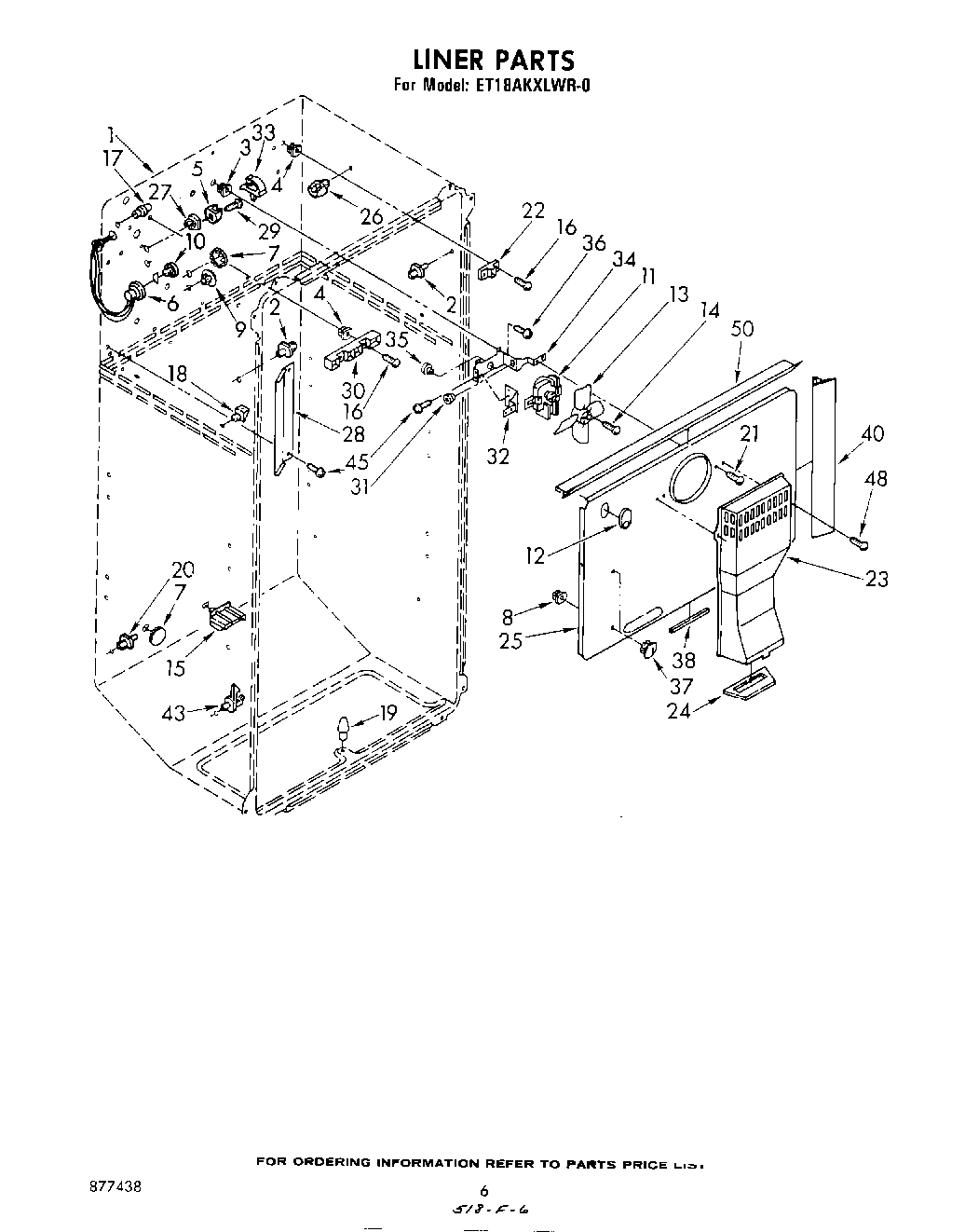

| 1 | Liner (Not A Serviceable Part) |
| 2 | Stud, Shelf (2) |
| 3 | Grommet (2) |
| 4 | Grommet (4) |
| 5 | Shelf Stud, Saddle L.S. |
| 6 | Liner Wiring (Ice Maker) |
| 7 | Hole, Plug |
| 8 | Grommet |
| 9 | Hole, Plug |
| 10 | Receptacle Cap |
| 11 | 482469 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 12 | Hole Plug, Evaporator |
| 13 | Blade, Fan |
| 14 | WP487887 Whirlpool Refrigerator Screw |
| 15 | Stud, Support Rear |
| 16 | WP488163 Whirlpool Refrigerator Screw |
| 17 | Stud |
| 18 | Retainer, Stud (4) |
| 19 | Grommet, Crisper Cover |
| 20 | Shelf, Stud |
| 21 | WP489069 Whirlpool Compactor Screw |
| 22 | Terminal Block (Single) |
| 23 | Air Duct |
| 24 | Sealing Gasket |
| 25 | Cover, Evaporator |
| 26 | Shelf Stud Saddle (R.S.) |
| 27 | Screw Grommet |
| 28 | Wiring Shield |
| 29 | WP488729 Whirlpool Refrigerator Door Screw |
| 30 | Terminal Block (Multiple) |
| 31 | Grommet (3) |
| 32 | Bracket, Double |
| 33 | Fastener, Wire |
| 34 | Bracket, Single |
| 35 | Grommet |
| 36 | W11693756 Whirlpool Screw Assembly |
| 38 | Gasket, Sealing |
| 40 | Gasket, Evaporator |
| 43 | Shelf, Stud |
| 45 | W11624204 Whirlpool Screw |
| 50 | Gasket, Top |
