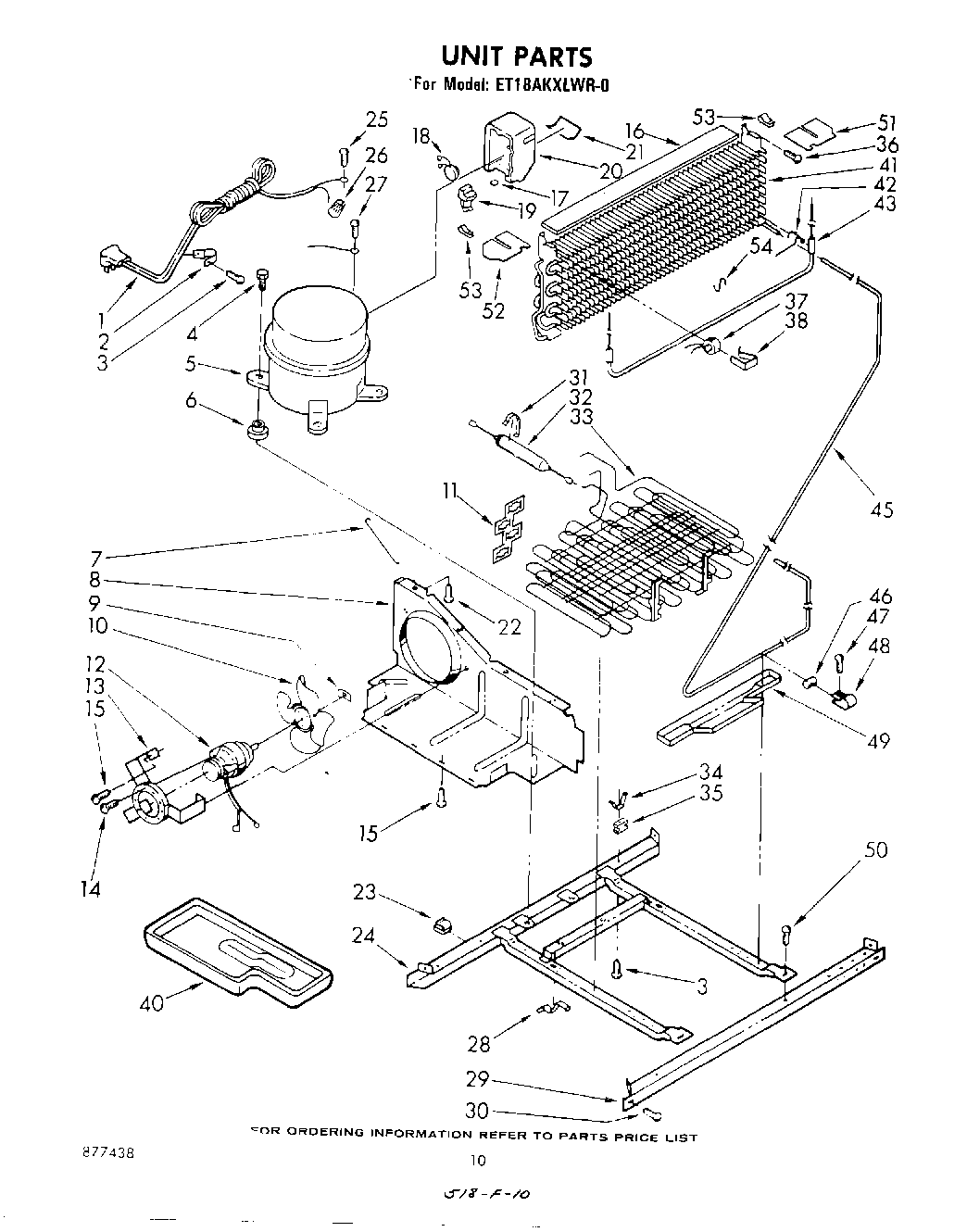

ET18AKXLWR0 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

ET18AKXLWR0 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Written by

in

ET18AKXLWR0 07 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
paint, spray 13 oz. (coffee)
Leveler (Thinner)
350942 Whirlpool Spray Paint
Paint, Spray 13 Oz. (Avocado)
350956 Whirlpool Spray Assembly
Golden Harvest
1Cord, Service
2549193 Whirlpool Refrigerator Power Clamp
3W11624204 Whirlpool Screw
4Screw, 1/4-28 x 1“ (4)
5Compressor
6Grommet (4)
7Guard, Fan
8Baffle
9WP486692 Whirlpool Refrigerator Nut
10Fan, Blade
11Spacer Condenser (4)
12833697 Whirlpool Condenser Fan Motor
13Bracket, Motor
14Screw, 8-36 x 3/8 (3)
15Screw, 8 x 3/8
16Baffle, Evaporator
17Bumper
18Overload
19Relay
20Case, Relay
21Spring
22Screw, 8-32 x 1/2
23Clip, Wire (2)
24Frame
25Screw, 8-32 x 3/8
26Wire Connector
27303776 Whirlpool Dishwasher Screw
28Clip (2)
29Rail, Front
30489340 Whirlpool Refrigerator Screw
31Clamp
32W10843121 Whirlpool Refrigerator Tube
33Condenser & Precooler Assembly
34Clamp (4)
35Grommet (4)
36W11693756 Whirlpool Screw Assembly
37WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38Clamp
40WPL 842041
41Evaporator
42Clip, Heater (2)
43Heater, Defrost
45Exchanger, Heat
46Dampener (2)
47WPW10141625 Whirlpool Refrigerator Screw Assembly
48Clamp Tube
49Pan, Drip
50Screw, 1/4-28 x 1/2 (2)
51Baffle, R.S.
52Baffle, L.S.
53Retainer, Baffle (2)
54799344 Whirlpool Refrigerator Paint
54WPL 943006
54Almond (Uncut)
54VALVE, ACCESS (5/8“)
5472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
54WP505587 Whirlpool Refrigerator Sealer
54WPL 942951
54WPL 877438
54WPL 942950
54WPL 799351
54WP72107 Whirlpool Touchup
5472017 Whirlpool Appliance Touch-Up Paint White
54WPL 941726
54Transformer (115-230 Volt)
54Golden Harvest (Uncut)
54212643 Whirlpool Refrigerator Permagum Sealer
54511873 Whirlpool Refrigerator Paint
54VALVE, ACCESS (1/2“)
54TAPE, VINYL (3/4 X 108“)
54CEMENT, ALUMILASTIC (1 1/4 OZ.)
54Enamel, Black (1 Qt. Uncut)
54Enamel, New Avocado (1 Qt. Uncut)
54WPL 799833
54Enamel, Coffee (1 Qt. Uncut)
54WPL 876029
5472109 Whirlpool Dacor Avocado Touch-Up Paint
54WPL 799832
54WP978025 Whirlpool Refrigerator Valve
54978030 Whirlpool Refrigerator Valve
54606755 Whirlpool Refrigerator Bag
54833938 Whirlpool Refrigerator Terminal
54876370 Whirlpool Refrigerator Insulation
54WP503695 Whirlpool Refrigerator Sealer
54978026 Whirlpool Refrigerator Primary Valve
54Support, Heater
5472032 Whirlpool Touch Up Paint Black
54978027 Whirlpool Refrigerator Primary Valve
54WP542638 Whirlpool Refrigerator Grease
54Paint, Touch-Up 1/2 Oz. (Coffee)
