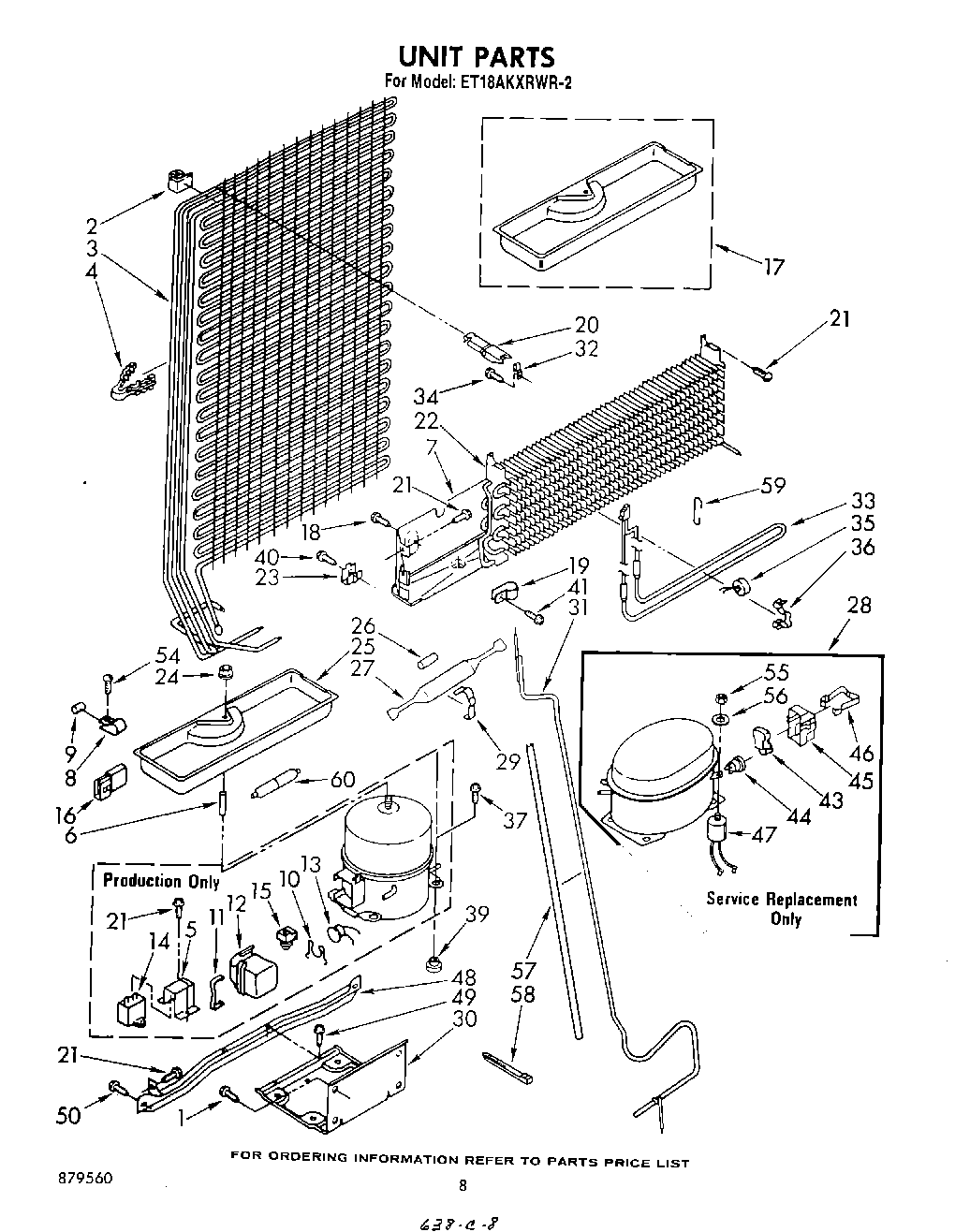

ET18AKXRWR2 07 – UNIT

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Cover, Capacitor
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	Spring, Overload
11	case spring
12	Case, Relay
13	Overload
14	WPW10662129 Whirlpool Refrigerator Run Capacitor
15	Relay
16	WP717253 Whirlpool Dishwasher Connector
17	Evaporator Tray
19	Tube, Clamp
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	Screw, 8 x 3/8
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
54	Screw, 8-32 x 1/2
55	Nut
56	Washer
57	WP2002171 Whirlpool Refrigerator Sleeve
58	Strap
59	Support, Heater
60	978027 Whirlpool Refrigerator Primary Valve
60	978030 Whirlpool Refrigerator Valve
60	WP978025 Whirlpool Refrigerator Valve
60	Muffler
60	VALVE, ACCESS (1/2“)
60	VALVE, ACCESS (5/8“)
60	978026 Whirlpool Refrigerator Primary Valve
60	876764 Whirlpool Refrigerator Primary Valve
