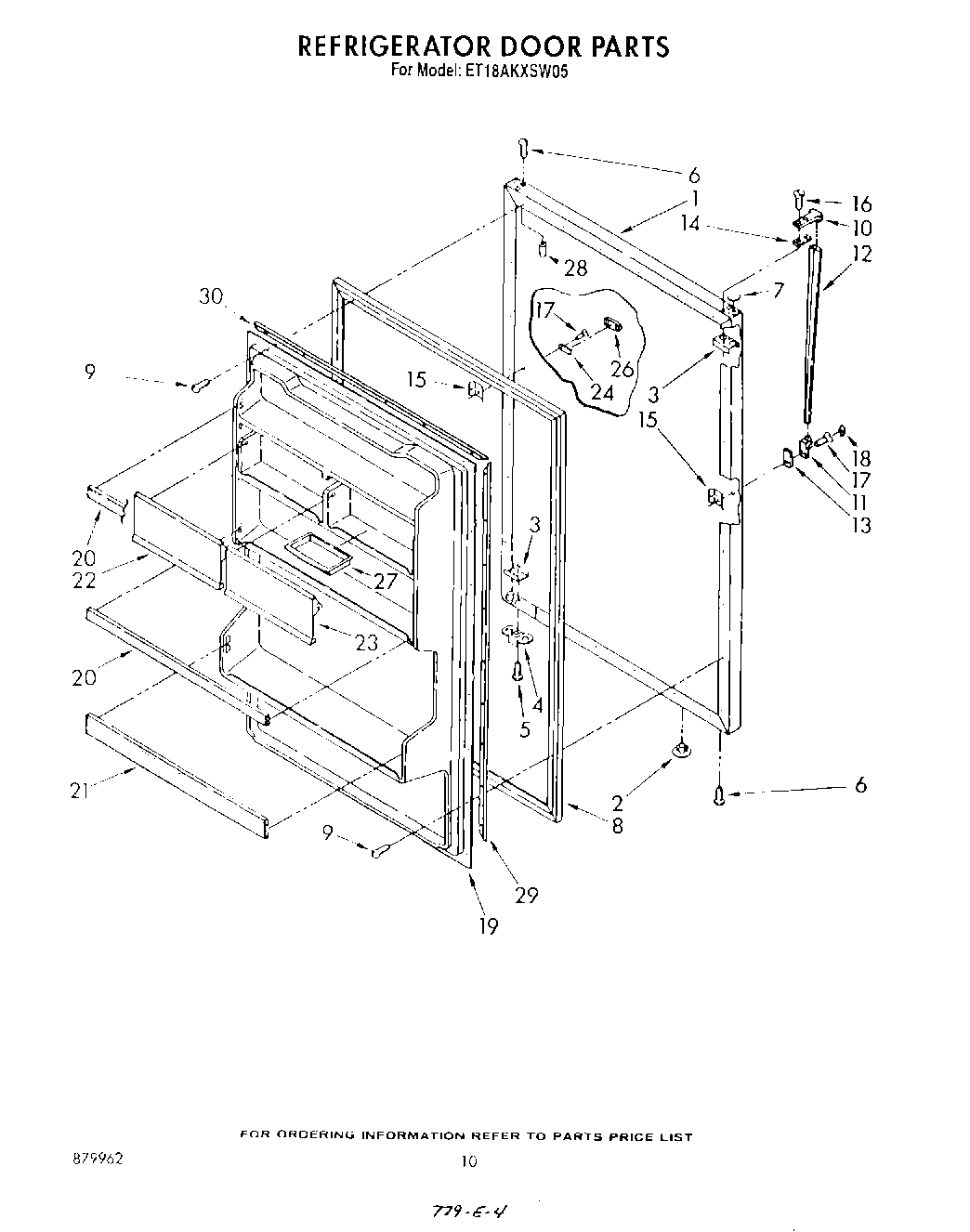

ET18AKXSW05 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET18AKXSW05 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET18AKXSW05 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
WPL LIT879962
Torx Key
WPL LIT1111824
WPL LIT1118787
WPL LIT1120603
1Panel, Refrigerator Door (Platinum)
1Panel, Refrigerator Door (Toast)
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (Golden Harvest)
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Toast)
7Hole Plug (Platinum)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center (Golden Harvest)
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment, Butter Door
24Clip, Medallion
26Medallion
28Cap, Hinge Sleeve (2)
29Gasket Retainer, Side (2)
30WPL 72112
30WP505587 Whirlpool Refrigerator Sealer
30511873 Whirlpool Refrigerator Paint
30WP72107 Whirlpool Touchup
30Leveler (Thinner)
30Gasket Retainer, Top & Bottom (2)
3072113 Whirlpool Touch-Up Paint
30WP503695 Whirlpool Refrigerator Sealer
30799344 Whirlpool Refrigerator Paint
30WP542638 Whirlpool Refrigerator Grease
30876370 Whirlpool Refrigerator Insulation
30833938 Whirlpool Refrigerator Terminal
30350956 Whirlpool Spray Assembly
30350930 Whirlpool White Spray Paint
30606755 Whirlpool Refrigerator Bag
30Almond (Uncut)
30TAPE, VINYL (3/4 X 108“)
3072110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30Platinum (Uncut)
30285006 Whirlpool Spray
3072032 Whirlpool Touch Up Paint Black
30212643 Whirlpool Refrigerator Permagum Sealer
30350942 Whirlpool Spray Paint
30Enamal, Toast (1 Qt. Uncut)
30Paint, Spray (13 Oz.) (Platinum)
30WPL 876029
30Silicone (Spray)
30WPL 799833
30WPL 799832
30Toast
30Golden Harvest (Uncut)
30Golden Harvest
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
3072017 Whirlpool Appliance Touch-Up Paint White
