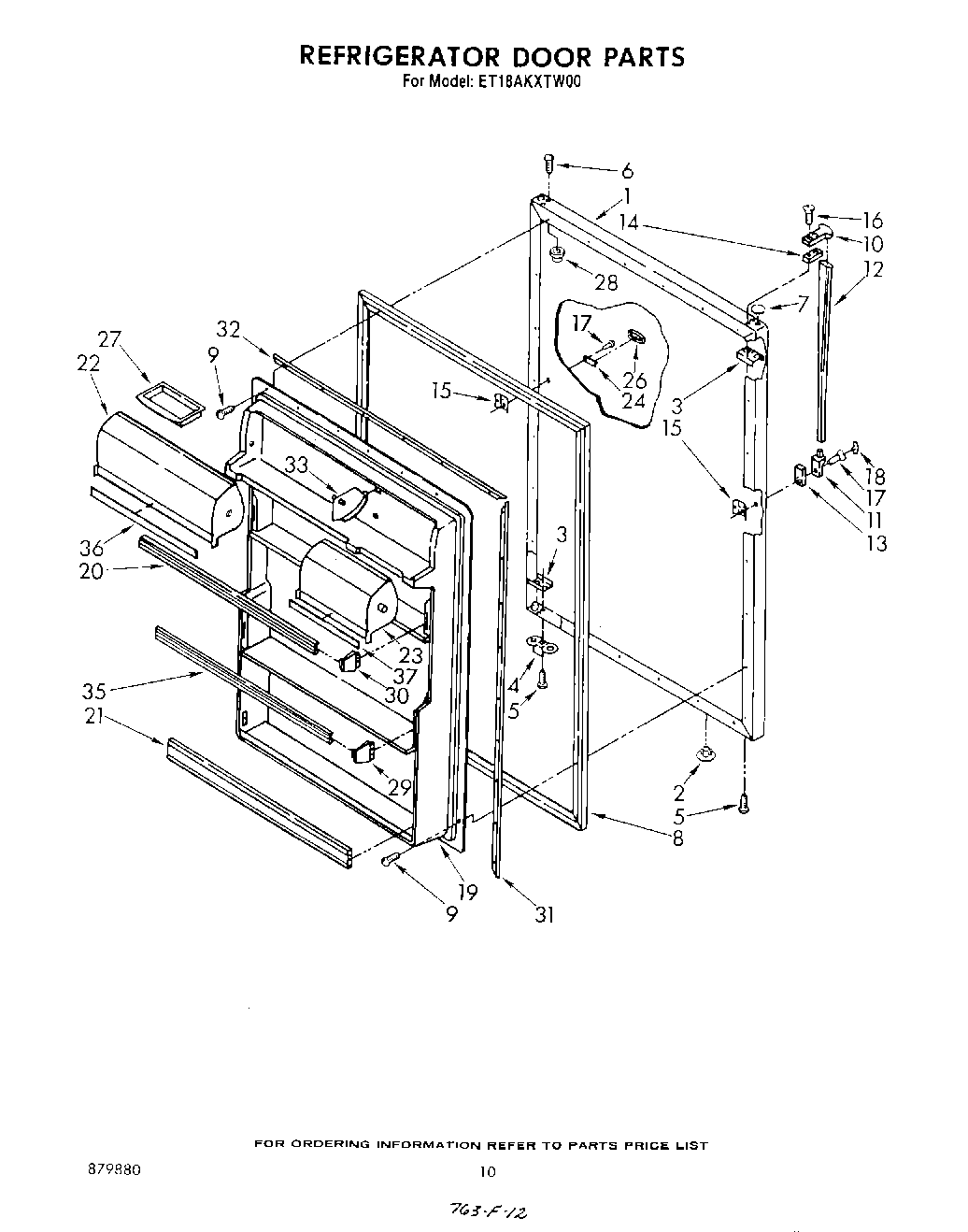

ET18AKXTG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET18AKXTG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET18AKXTG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT879880
Paint, Spray (13 Oz.) (Platinum)
Toast
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
Golden Harvest
350942 Whirlpool Spray Paint
WPL LIT1121290
WPL LIT1115154
Torx Key
Leveler (Thinner)
285006 Whirlpool Spray
WPL LIT1121115
350956 Whirlpool Spray Assembly
1Panel, Refrigerator Door (Also Order Item 27) (Platinum)
1Panel, Refrigerator Door (Also Order Item 27) (Toast)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Toast)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
7Hole Plug (Platinum)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door Shelf
21Trim, Door Shelf
22Compartment Door, Utility
23Compartment, Butter Door
24Clip, Medallion
25WP488729 Whirlpool Refrigerator Door Screw
26Medallion
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
304386917 Whirlpool Endcap Kit
31Retainer, Gasket Side (2)
32WPL 1115137
33WP1118001 Whirlpool Hinge Pin
35WPL 1118125
36Trim, Door Compartment
37606755 Whirlpool Refrigerator Bag
37Almond (Uncut)
37WP505587 Whirlpool Refrigerator Sealer
37WP72107 Whirlpool Touchup
37WP542638 Whirlpool Refrigerator Grease
37TAPE, VINYL (3/4 X 108“)
3772032 Whirlpool Touch Up Paint Black
37CEMENT, ALUMILASTIC (1 1/4 OZ.)
37799344 Whirlpool Refrigerator Paint
37WPL 799833
37WPL 876029
3772017 Whirlpool Appliance Touch-Up Paint White
3772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
3772113 Whirlpool Touch-Up Paint
37511873 Whirlpool Refrigerator Paint
37212643 Whirlpool Refrigerator Permagum Sealer
37WPL 72112
37876370 Whirlpool Refrigerator Insulation
37Platinum (Uncut)
37Enamal, Toast (1 Qt. Uncut)
37WP503695 Whirlpool Refrigerator Sealer
37Silicone (Spray)
37WPL 1118014
37Golden Harvest (Uncut)
37WPL 799832
37833938 Whirlpool Refrigerator Terminal
