ET18AKXTM01 05 – SHELF

ET18AKXTM01 05 – SHELF

Written by

in

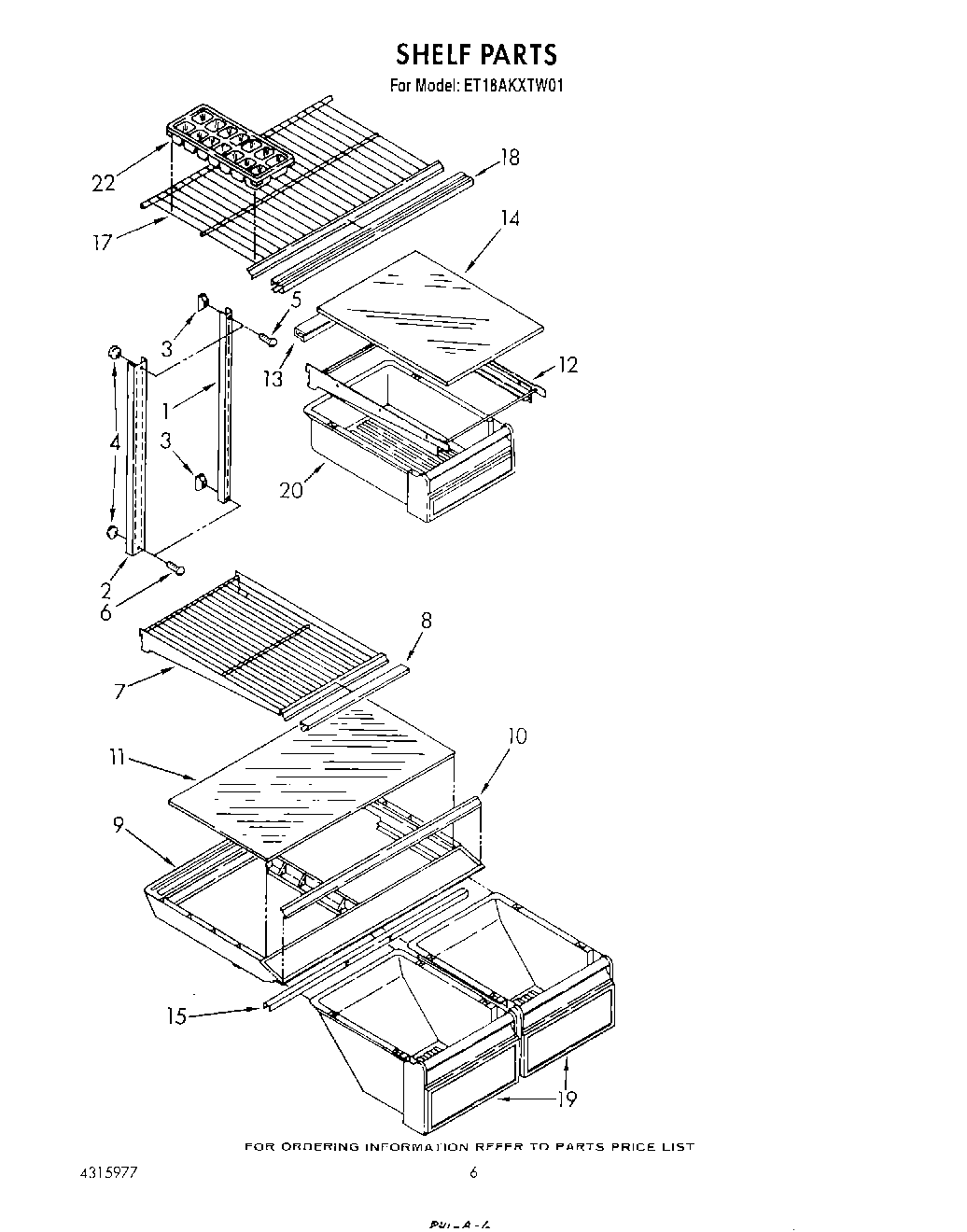

ET18AKXTM01 05 – SHELF

Products

PositionProduct
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Screw Support, Center Ladder (2)
5Screw, 8-32 x 1-1/4 (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (3)
8Trim, Shelf
9Crisper Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Meat Cover
15WP2172748 Whirlpool Drawer Support
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
22WP841180A Whirlpool Microwave Glass Turntable Tray
