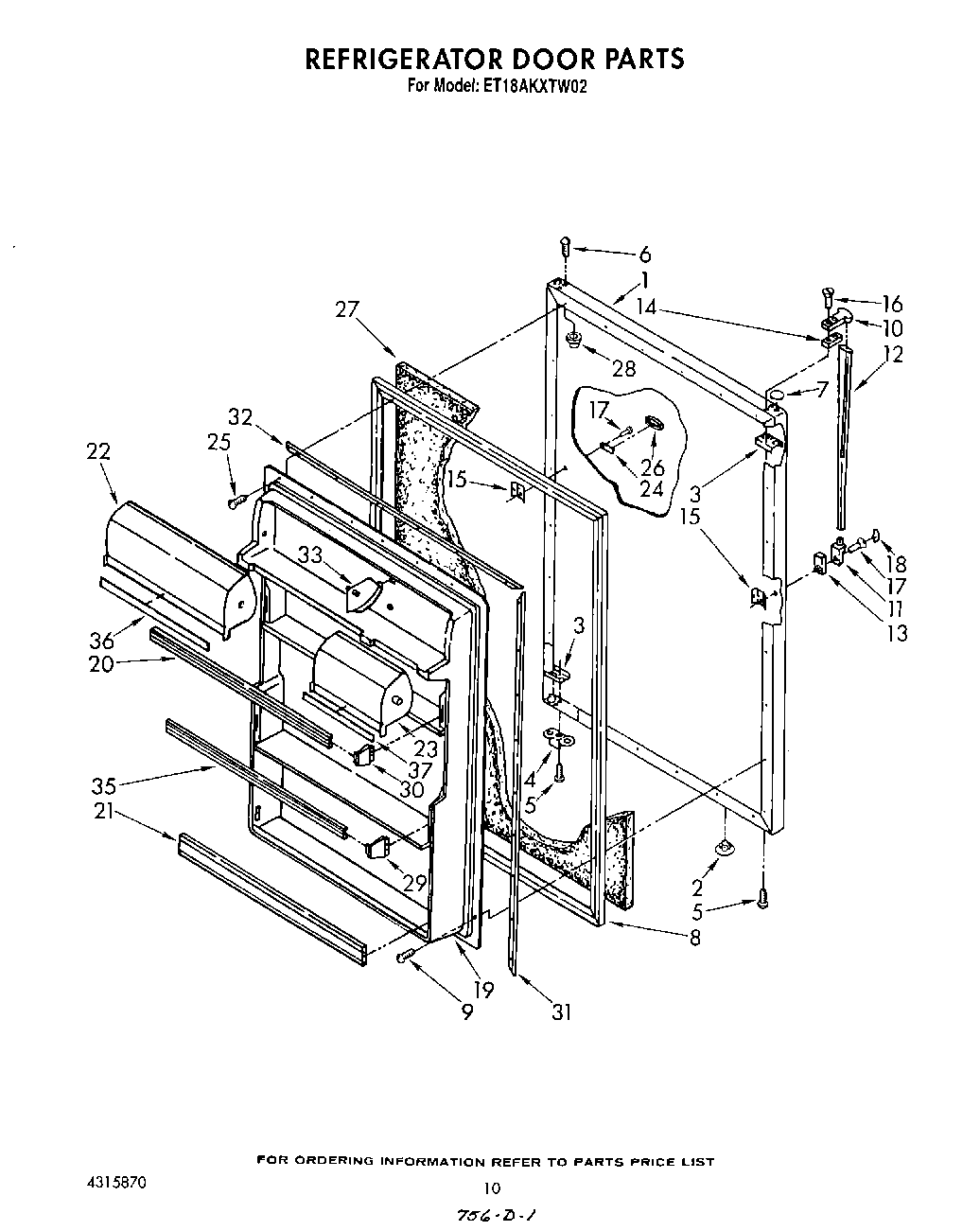

ET18AKXTM02 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

ET18AKXTM02 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

ET18AKXTM02 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Golden Harvest
285006 Whirlpool Spray
WPL LIT1118996
350942 Whirlpool Spray Paint
WPL LIT1121115
Leveler (Thinner)
WPL LIT4315870
WPL LIT1121290
Torx Key
350956 Whirlpool Spray Assembly
Paint, Spray (13 Oz.) (Platinum)
1Panel, Refrigerator Door (Also Order Item 27) (Platinum)
1Panel, Refrigerator Door (Also Order Item 27) (Toast)
1Panel, Refrigerator Door (Also Order Item 27) (White)
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
7Hole Plug (Almond)
7Hole Plug (Toast)
7Hole Plug (Platinum)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16Screw (Repair)
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door Shelf
21Trim, Door Shelf
22Compartment Door, Utility
23Compartment, Butter Door
24Clip, Medallion
26Medallion
28Cap, Hinge Sleeve (2)
294318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
304386917 Whirlpool Endcap Kit
31Retainer, Gasket Side (2)
32WPL 1115137
33WP1118001 Whirlpool Hinge Pin
35WPL 1118125
36Trim, Door Compartment
3772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
37212643 Whirlpool Refrigerator Permagum Sealer
37WPL 72112
37799344 Whirlpool Refrigerator Paint
3772113 Whirlpool Touch-Up Paint
37Platinum (Uncut)
37Enamal, Toast (1 Qt. Uncut)
37Golden Harvest (Uncut)
37WP72107 Whirlpool Touchup
37Almond (Uncut)
37511873 Whirlpool Refrigerator Paint
37606755 Whirlpool Refrigerator Bag
3772032 Whirlpool Touch Up Paint Black
37WPL 876029
37WPL 799833
37TAPE, VINYL (3/4 X 108“)
37WP542638 Whirlpool Refrigerator Grease
37WP505587 Whirlpool Refrigerator Sealer
37WP503695 Whirlpool Refrigerator Sealer
37876370 Whirlpool Refrigerator Insulation
37833938 Whirlpool Refrigerator Terminal
37WPL 1118014
37CEMENT, ALUMILASTIC (1 1/4 OZ.)
3772017 Whirlpool Appliance Touch-Up Paint White
