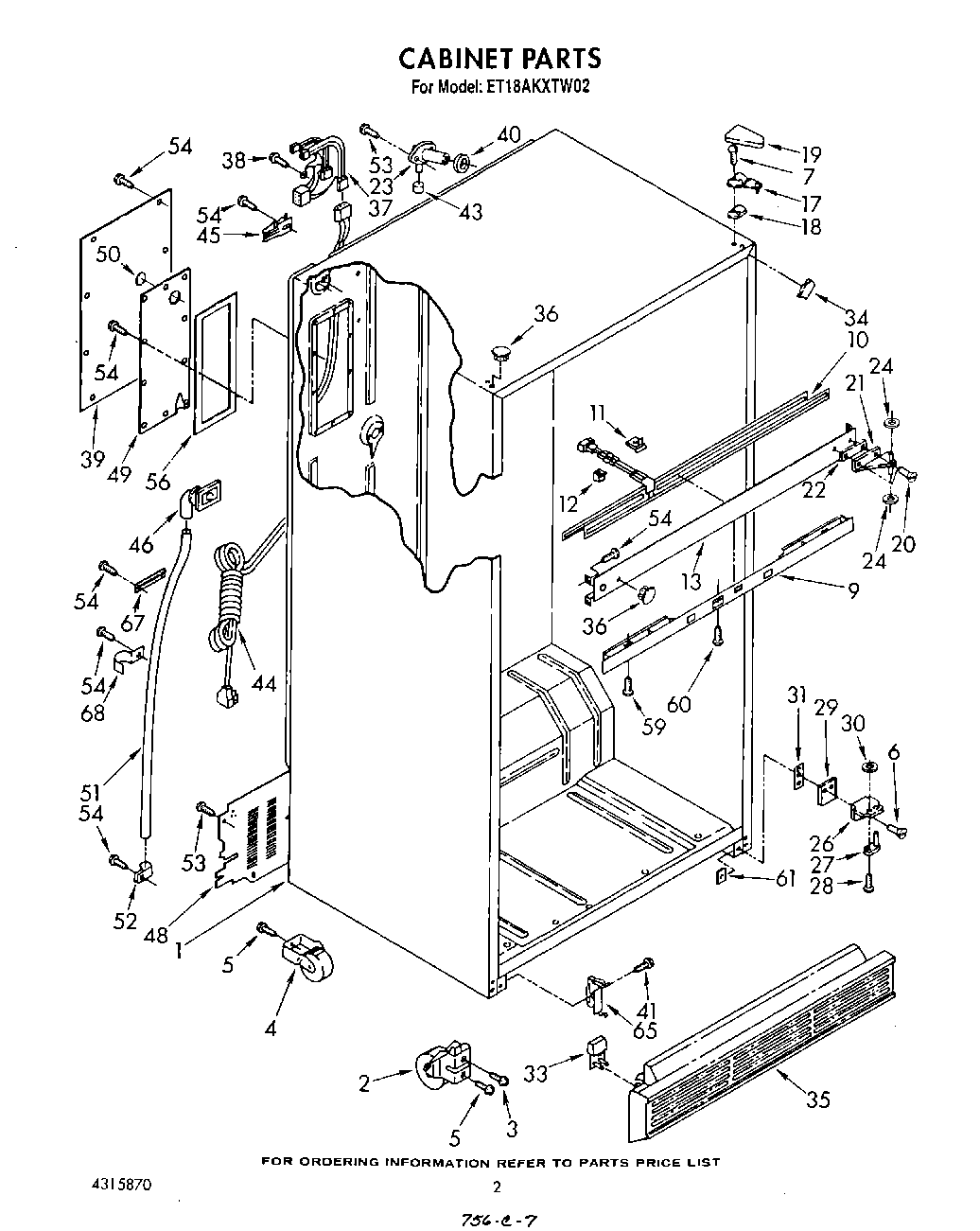

ET18AKXTN02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
7	WP999367 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (2)
13	Center Rail (White)
13	Center Rail (Platinum)
13	Center Rail (Toast)
13	Center Rail (Golden Harvest)
13	Center Rail (Almond)
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover (Toast)
19	1119787 Whirlpool Refrigerator Hinge Cover
19	Hinge Cover (Golden Harvest)
20	Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Center (Repair)
23	WP2196157 Whirlpool Fill Tube
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer
33	Corner Filler, Grille
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
34	Filler, Wrapper Corner (2) (Golden Harvest)
34	Filler, Wrapper Corner (2) (Toast)
34	Filler, Wrapper Corner (2) (Platinum)
35	Grille
36	Hole Plug (4) (Platinum)
36	Hole Plug (4) (Toast)
36	Hole Plug (4) (Golden Harvest)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (White)
37	WPL 1121298
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 1116595
40	WP1106508 Whirlpool Refrigerator Gasket
41	W11624204 Whirlpool Screw
43	WP487996 Whirlpool Refrigerator Cap Tube
44	Cord, Service
45	549193 Whirlpool Refrigerator Power Clamp
46	Fitting, Drain
48	WPL 1116613
49	WPL 1116607
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 836077
54	WP489478 Whirlpool Refrigerator Screw
54	SCREW
56	WPL 1123404
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate
65	WP2155013 Whirlpool Refrigerator Clip
67	Tube Clamp (2)
68	WPL 1110564
