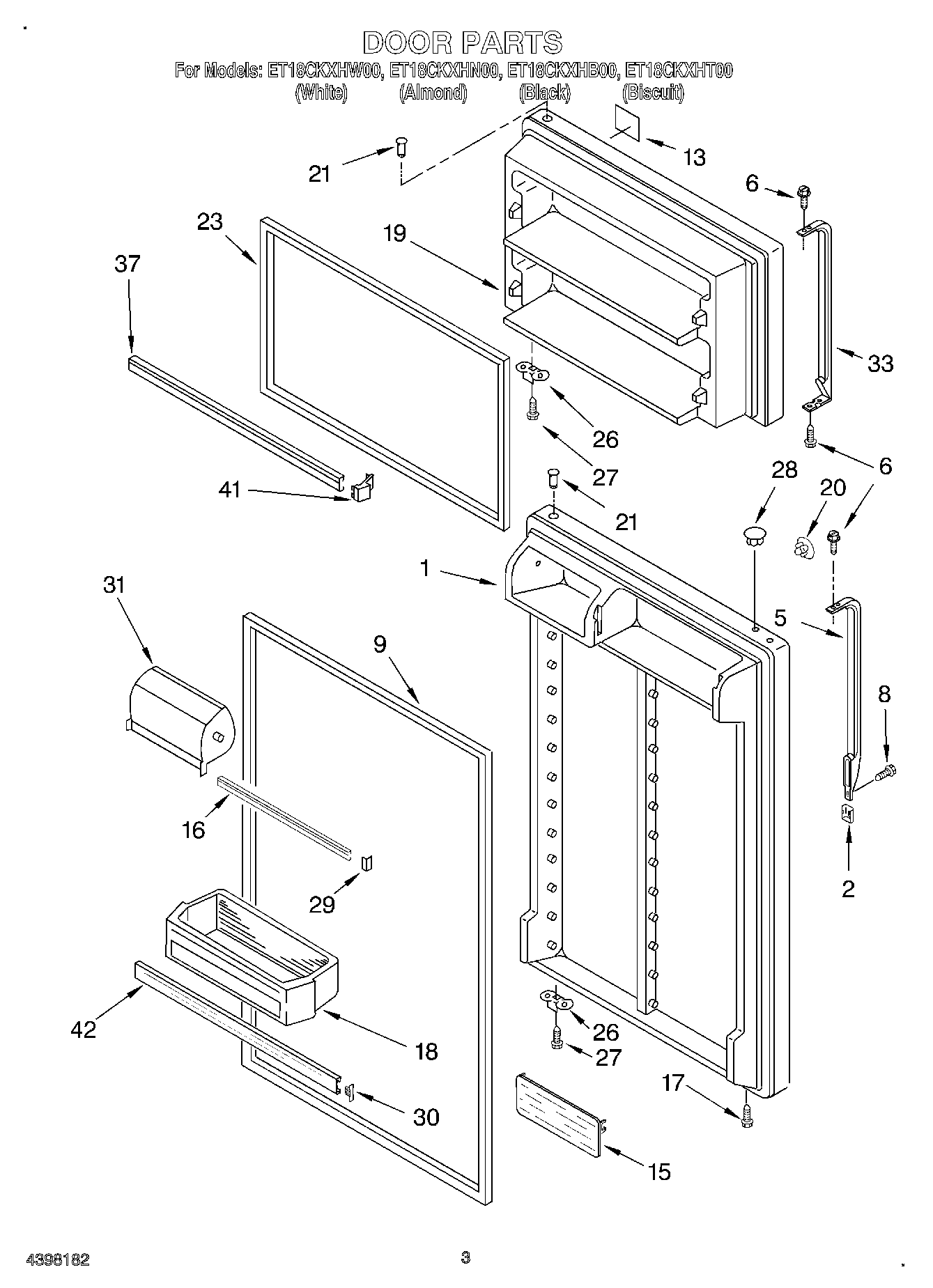

ET18CKXHT00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Black)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
1	Refrigerator Door (Includes No.9 & No.21) (Almond)
2	Cover, Trim (Biscuit)
2	Endcap, Handle (2) (Almond)
2	Cover, Trim (Black)
2	WP2193353W Whirlpool Refrigerator Trim Handle
5	Handle Center (Almond)
6	WP489357 Whirlpool Recessed Screw
8	WP488729 Whirlpool Refrigerator Door Screw
9	2177305 Whirlpool Refrigerator Door FIP Gasket
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
13	Nameplate (White)
13	Nameplate (Black)
13	Nameplate (Biscuit Model)
13	Nameplate (Almond Model)
15	WP2188234 Whirlpool Shelf
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	Door Bin (3)
19	Freezer Door (Includes No.22 & No.23) (Almond)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
19	Freezer Door (Includes Illus. 4,17 & 18) (Black)
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189009 Whirlpool Refrigerator Handle Plug
20	Hole Plug (Almond)
21	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
23	2177304 Whirlpool Refrigerator FIP Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
28	WP2212651 Whirlpool Refrigerator Button Plug
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
33	Handle
33	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
33	4388949 Whirlpool Refrigerator Handle
33	4388950 Whirlpool Refrigerator Handle
37	Trim-Door (2)
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
