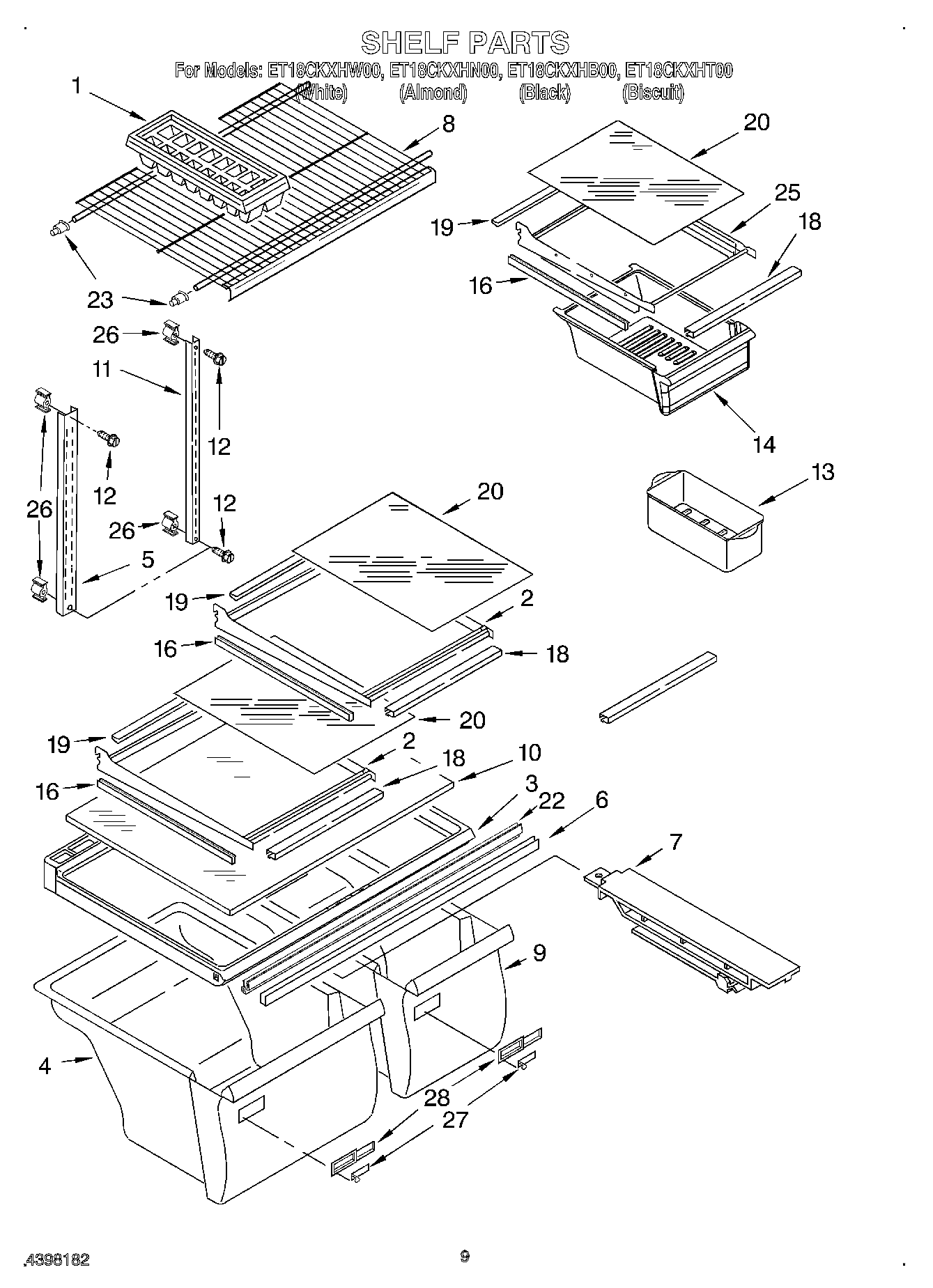

ET18CKXHT00 05 – SHELF, LIT/OPTIONAL

ET18CKXHT00 05 – SHELF, LIT/OPTIONAL

Written by

in

ET18CKXHT00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
Torx Key
Literature Parts (Do-It-Yourself Manual Ref./Frz.)
WPL LIT677971
WPL LIT2199009
WPL LIT2195481
WPL LIT2200956
1WP841180A Whirlpool Microwave Glass Turntable Tray
2Shelf, Cantilever
3WP2314548 Whirlpool Refrigerator Cover
4W10854037 Whirlpool Refrigerator Crisper Pan
5Shelf, Ladder Center
6WP2172748 Whirlpool Drawer Support
7WP2163835 Whirlpool Track Assembly
8WP2176275 Whirlpool Refrigerator Wire Shelf
9W10856580 Whirlpool Crisper Pan
10WP2169921 Whirlpool Refrigerator Glass Shelf
11Shelf, Ladder (2)
12W11544659 Whirlpool Refrigerator Screw
13W10136387A Whirlpool Refrigerator Egg Container
14PAN-MEAT
16Trim, Shelf Side
18Trim, Shelf Front
19Trim, Shelf Rear
20Glass, Half Shelf
22Gasket, Crisper Cover
232163762 Whirlpool Refrigerator Cup Assembly
25Pan Shelf, Cantilever
26520965 Whirlpool Refrigerator Support
27WP2176222 Whirlpool Refrigerator Slide
28799344 Whirlpool Refrigerator Paint
28WP72107 Whirlpool Touchup
2872017 Whirlpool Appliance Touch-Up Paint White
28WP2212446 Whirlpool Refrigerator Control Body
28350930 Whirlpool White Spray Paint
28212643 Whirlpool Refrigerator Permagum Sealer
28350956 Whirlpool Spray Assembly
28WP542638 Whirlpool Refrigerator Grease
28WP505587 Whirlpool Refrigerator Sealer
28TAPE, VINYL (3/4 X 108“)
28CEMENT, ALUMILASTIC (1 1/4 OZ.)
28WPL 799832
28WP503695 Whirlpool Refrigerator Sealer
28WPL 876029
28876370 Whirlpool Refrigerator Insulation
28833938 Whirlpool Refrigerator Terminal
28606755 Whirlpool Refrigerator Bag
28511873 Whirlpool Refrigerator Paint
28350942 Whirlpool Spray Paint
28285006 Whirlpool Spray
2872032 Whirlpool Touch Up Paint Black
28Almond (Uncut)
28WPL 799833
28Door Reversal Instructions
