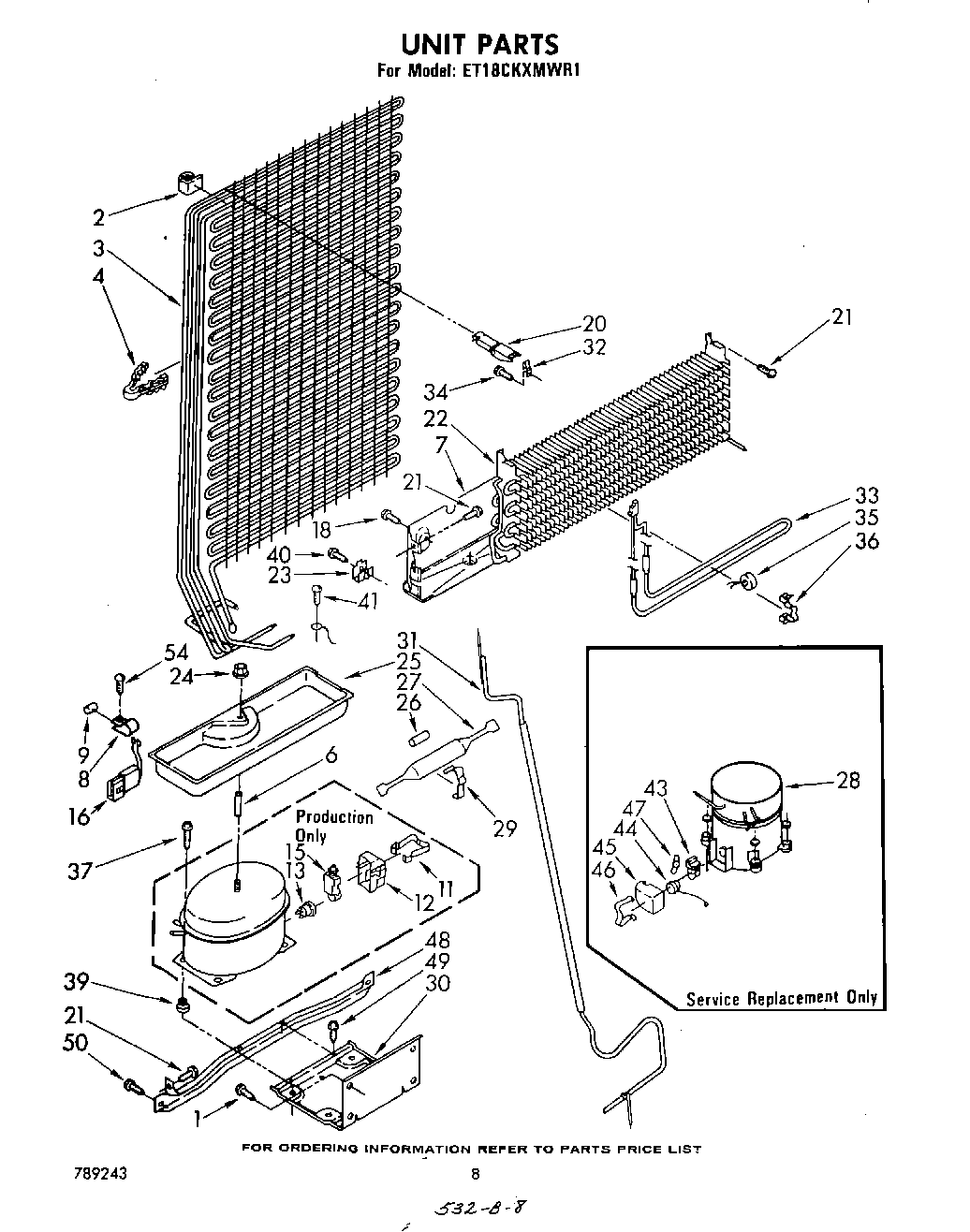

ET18CKXMWR1 07 – UNIT PARTS

Products

Position	Product
1	W11693756 Whirlpool Screw Assembly
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
11	Strap
12	Cover, Terminal
13	Overload (Used W/Original Compressor)
15	Relay
16	Housing Plug
20	Condenser, Stand-Off
21	W11624204 Whirlpool Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	WP487939 Whirlpool Refrigerator Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
29	Drier Clamp
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
34	Screw, 8 x 3/8
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
40	WP489069 Whirlpool Compactor Screw
41	303776 Whirlpool Dishwasher Screw
43	Relay
44	Overload
45	Cover, Terminal
46	Cover, Spring
47	Spring, Overload
48	Rail, Unit Mounting
49	WP965173 Whirlpool Dishwasher Screw
50	Screw, 1/4-28 x 1
54	VALVE, ACCESS (1/2``)
54	VALVE, ACCESS (5/8``)
54	978030 Whirlpool Refrigerator Valve
54	WP978025 Whirlpool Refrigerator Valve
54	876764 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	Screw, 8-32 x 1/2
