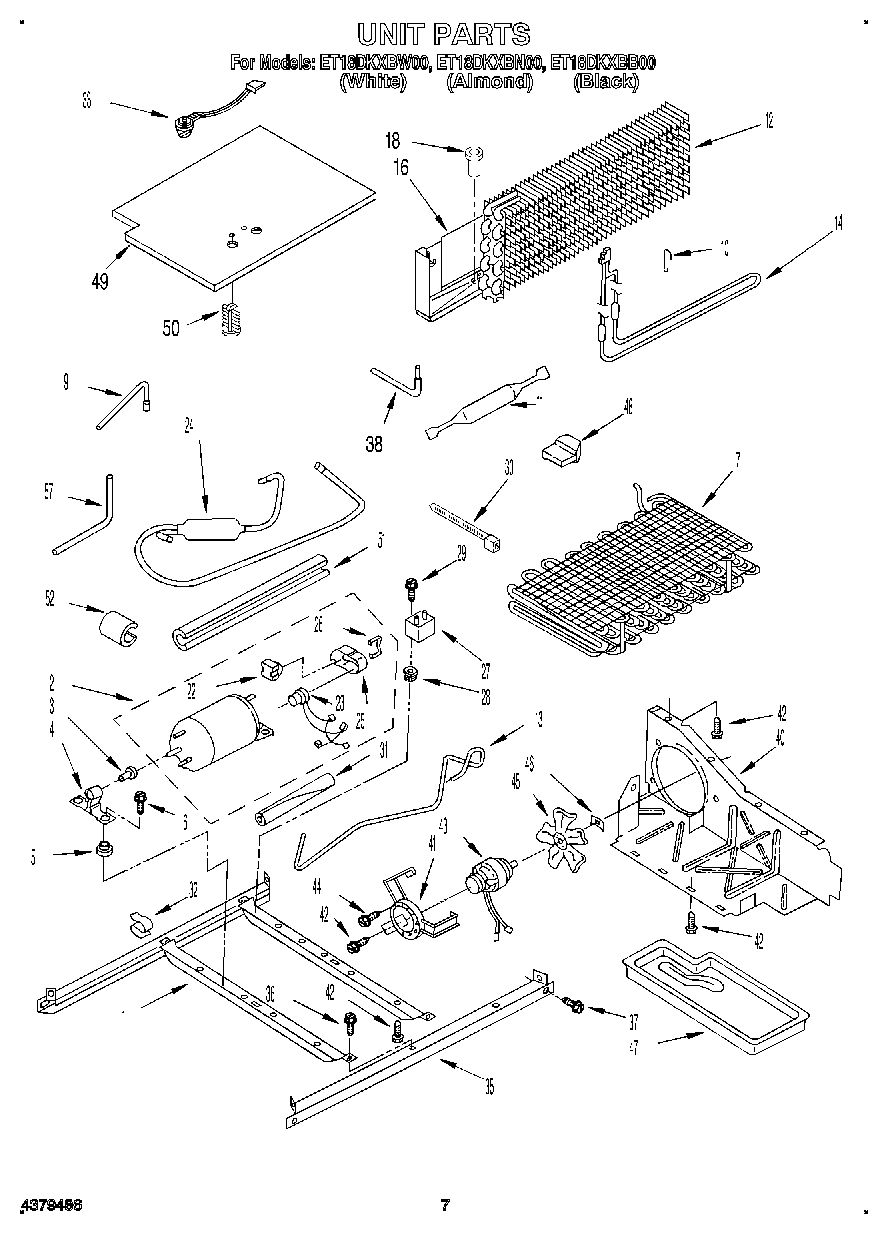

ET18DKXBN00 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
9	Tube, Process
10	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Tube, Discharge
14	Heater, Defrost
16	Drain Pan & Heat Shield
18	Drain Fitting
22	Relay, Start (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Sleeve
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
38	Tube, Process
40	Air, Baffle
41	Fan, Mounting Bracket
42	WP489464 Whirlpool Refrigerator Screw
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
49	Cover, Unit Bottom
50	489396 Whirlpool Refrigerator Clip
51	WP2002171 Whirlpool Refrigerator Sleeve
52	WP2158826 Whirlpool Refrigerator Dampener
57	Tube, Condenser To Heat Loop
57	978026 Whirlpool Refrigerator Primary Valve
57	978027 Whirlpool Refrigerator Primary Valve
57	978030 Whirlpool Refrigerator Valve
57	WP978025 Whirlpool Refrigerator Valve
57	VALVE, ACCESS (1/2“)
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
