ET18DKXBN01 04 – SHELF, LIT/OPTIONAL

ET18DKXBN01 04 – SHELF, LIT/OPTIONAL

Written by

in

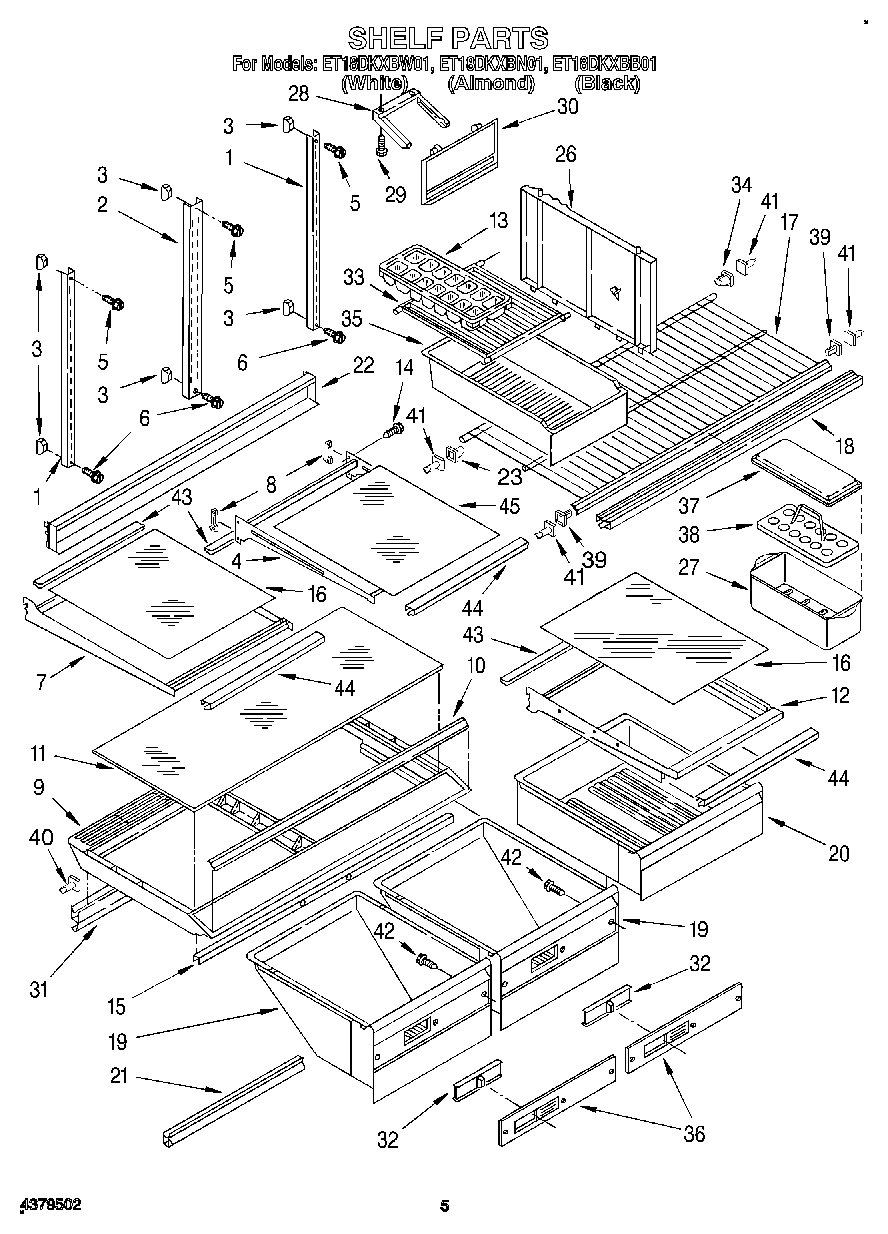

ET18DKXBN01 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2170975
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2170892
	WPL LIT2154075
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Slide Shelf Frame, Cantilever
5	Screw (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Hook, Shelf
9	Crisper Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
13	WP841180A Whirlpool Microwave Glass Turntable Tray
14	Screw
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Door
19	Pan, Crisper
20	Pan, Meat
21	Crisper, Gasket Front (2)
22	Slide Track Assy., Shelf
26	Divider
27	W10136387A Whirlpool Refrigerator Egg Container
28	Slide, Ice Compartment
29	WP489478 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Crisper, Gasket Rear (2)
32	Slide, Humidity Control
33	Shelf, Ice Compartment (2)
34	819091 Whirlpool Refrigerator Shelf Stud
35	PAN-ICE
36	Front, Crisper Pan
37	Cover
38	WP2177817 Whirlpool Refrigerator Egg Container
39	Stud, Front R.S.
40	W10854959 Whirlpool Refrigerator Shelf Stud
41	Stud, Support
42	Screw (3)
43	Reflector
44	Trim, Shelf
45	606755 Whirlpool Refrigerator Bag
45	511873 Whirlpool Refrigerator Paint
45	350942 Whirlpool Spray Paint
45	212643 Whirlpool Refrigerator Permagum Sealer
45	Almond (Uncut)
45	Leveler (Thinner)
45	WP72107 Whirlpool Touchup
45	799344 Whirlpool Refrigerator Paint
45	72017 Whirlpool Appliance Touch-Up Paint White
45	350956 Whirlpool Spray Assembly
45	350930 Whirlpool White Spray Paint
45	285006 Whirlpool Spray
45	833938 Whirlpool Refrigerator Terminal
45	72032 Whirlpool Touch Up Paint Black
45	WPL 876029
45	WPL 799833
45	Door Reversal Instructions
45	CEMENT, ALUMILASTIC (1 1/4 OZ.)
45	TAPE, VINYL (3/4 X 108“)
45	WP542638 Whirlpool Refrigerator Grease
45	WP505587 Whirlpool Refrigerator Sealer
45	WP503695 Whirlpool Refrigerator Sealer
45	876370 Whirlpool Refrigerator Insulation
45	Shelf, Glass
