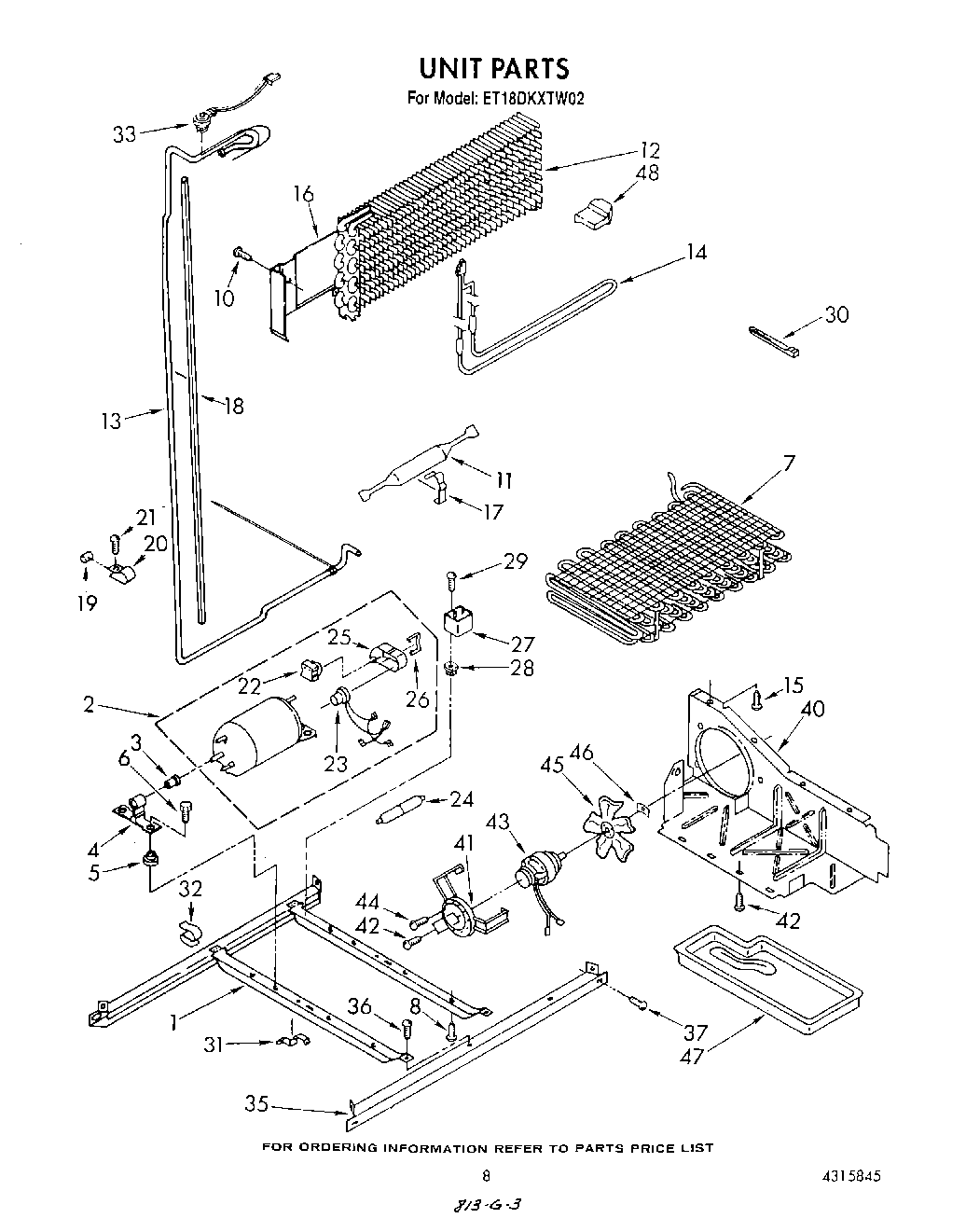

ET18DKXTF02 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items (22, 23, 25, 26)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	WP489069 Whirlpool Compactor Screw
10	WP965173 Whirlpool Dishwasher Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator Assembly
13	Heat, Exchanger
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Heat Shield
17	Drier Clamp
18	WP2002171 Whirlpool Refrigerator Sleeve
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Start Relay
22	Relay, (For Service Compressor Only)
23	Overload
23	Overload, (For Service Compressor Only)
24	Muffler
25	Terminal Cover
26	Strap, Cover
27	Running Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
32	Clip, Wire (2)
33	WP4387500 Whirlpool Refrigerator Bimetallic Defrost
35	Unit, Rail
36	Screw, 1/4-28 x 1/2 (2)
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	VALVE, ACCESS (1/2“)
48	Wedge, Air Baffle
48	WP978025 Whirlpool Refrigerator Valve
48	978030 Whirlpool Refrigerator Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	876764 Whirlpool Refrigerator Primary Valve
48	VALVE, ACCESS (5/8“)
