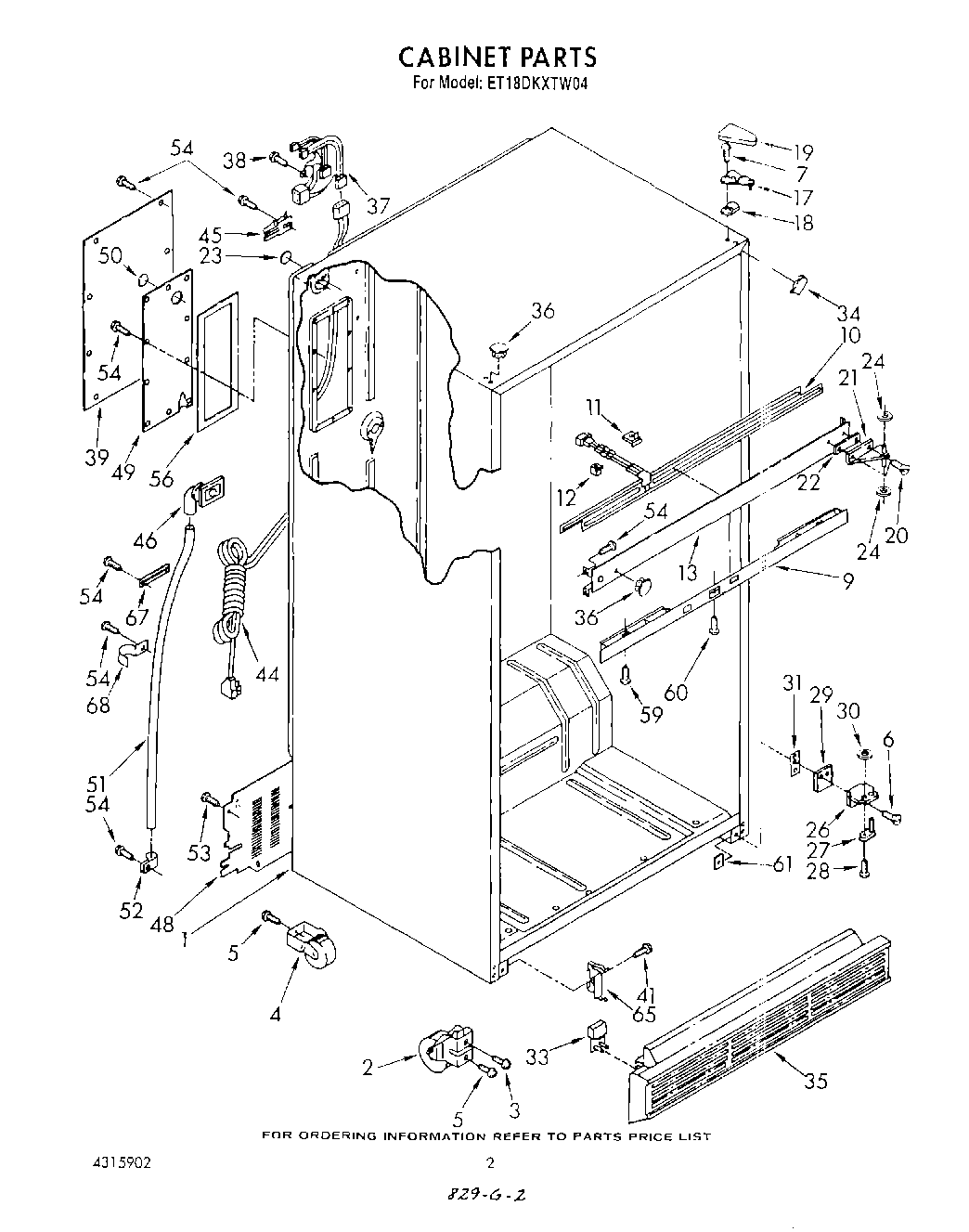

ET18DKXTG04 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
7WP999367 Whirlpool Refrigerator Screw
9Control, Front Cover
10Heater, Mullion
11Clip, Mullion (3)
12Spacer (2)
13Center Rail (Platinum)
13Center Rail (Toast)
13Center Rail (White)
13Center Rail (Almond)
13Center Rail (Golden Harvest)
17Hinge, Top
18Shim, Hinge Top
19Hinge Cover (Golden Harvest)
19Hinge Cover (Toast)
191119787 Whirlpool Refrigerator Hinge Cover
20Screw
20Screw (Repair)
21Hinge, Center
22Shim, Center (Repair)
22Shim, Hinge Center
23Hole Seal
24WP488296 Whirlpool Washer Refrigerator
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw
29Shim, Bottom
30WP489200 Whirlpool Refrigerator Washer
31Spacer
33Corner Filler, Grille
34Filler, Wrapper Corner (2) (White)
34Filler, Wrapper Corner (2) (Golden Harvest)
34Filler, Wrapper Corner (2) (Platinum)
34Filler, Wrapper Corner (2) (Toast)
34Filler, Wrapper Corner (2) (Almond)
35Grille
36Hole Plug (4) (Platinum)
36Hole Plug (4) (Golden Harvest)
36Hole Plug (4) (White)
36Hole Plug (4) (Almond)
36Hole Plug (4) (Toast)
37WPL 1121298
38WP250830 Whirlpool Refrigerator Screw
39WPL 1116595
41W11624204 Whirlpool Screw
44Cord, Service
45549193 Whirlpool Refrigerator Power Clamp
46Fitting, Drain
48WPL 1116613
49WPL 1116607
50WPL 1120224
518316810 Whirlpool Refrigerator Drain Tube
52WPL 836077
54WP489478 Whirlpool Refrigerator Screw
56WPL 1123404
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate
65WP2155013 Whirlpool Refrigerator Clip
67Tube Clamp (2)
68WPL 1110564
