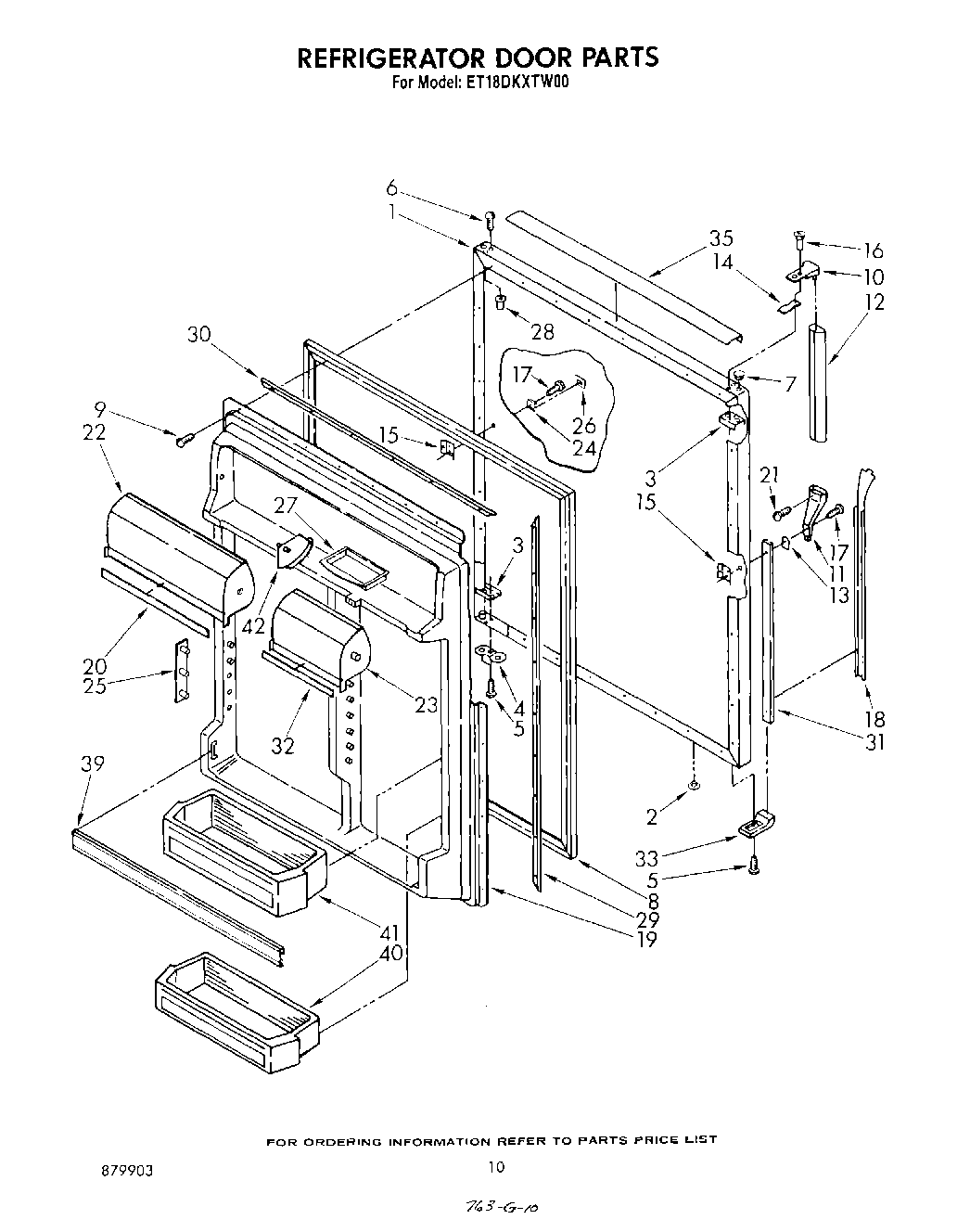

ET18DKXTM00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Also Order Item 27) (Platinum)
1	Panel, Refrigerator Door (Also Order Item 27) (Toast)
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	Screw (Repair)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Platinum)
7	Hole Plug (Toast)
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Handle End
11	Handle End, Side
12	Handle, Center (For Platinum Model Only)
12	Handle, Center
13	Shim
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
16	Screw (Repair)
17	WP488729 Whirlpool Refrigerator Door Screw
18	Insert, Handle
18	Insert, Handle (For Platinum Model Only)
19	Interior Door Panel
20	Trim, Door Compartment
21	Screw
22	Compartment Door
23	Compartment Door
24	Clip, Medallion
25	Pin Plate (8)
26	Medallion
28	Cap, Hinge Sleeve (2)
29	Retainer, Gasket Side (2)
30	WPL 1115137
31	WPL 1118080
32	WPL 1118014
33	WPL 1105804
35	WPL 1118064
39	WPL 1118009
40	WPL 1118010
41	WPL 1118011
42	WP1118001 Whirlpool Hinge Pin
