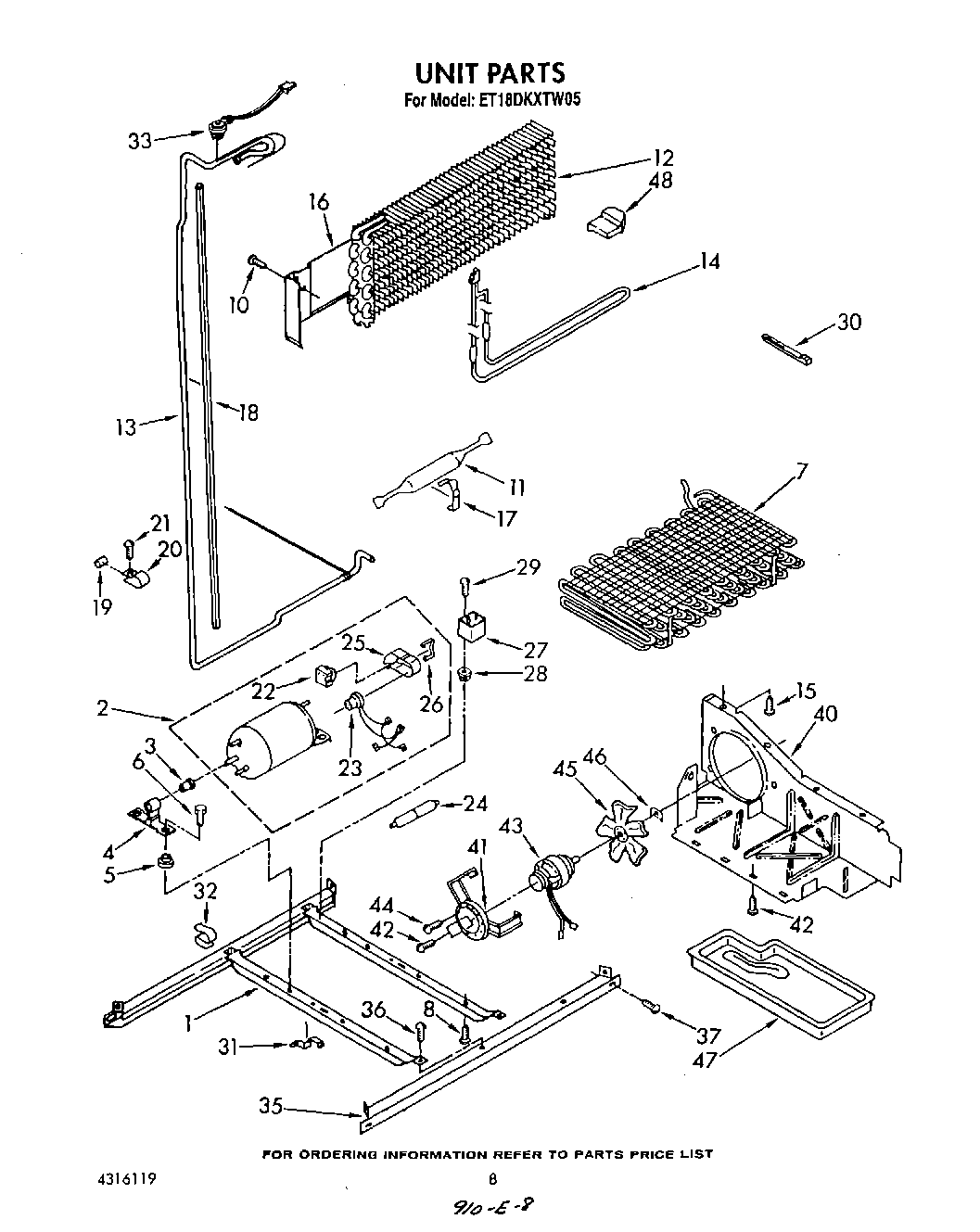

| 1 | Unit, Frame |
| 2 | Compressor KIt Includes Items (22, 23, 25, 26) |
| 3 | Grommet, Compressor Bracket |
| 4 | Bracket, Mounting |
| 5 | Grommet, Compressor (4) |
| 6 | Screw (4) |
| 7 | Condenser Assembly |
| 10 | WP965173 Whirlpool Dishwasher Screw |
| 11 | W10843121 Whirlpool Refrigerator Tube |
| 12 | Evaporator Assembly |
| 13 | Heat, Exchanger |
| 14 | Heater, Defrost |
| 15 | WP489478 Whirlpool Refrigerator Screw |
| 16 | Heat Shield |
| 17 | Clamp, Dryer |
| 18 | WP2002171 Whirlpool Refrigerator Sleeve |
| 19 | Dampener (2) |
| 20 | Clamp Tube |
| 21 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 22 | Start Relay |
| 22 | Relay, (For Service Compressor Only) |
| 23 | Overload, (For Service Compressor Only) |
| 23 | Overload |
| 24 | Muffler |
| 25 | Terminal Cover |
| 26 | Strap, Cover |
| 27 | Running Capacitor |
| 28 | Screw Grommet |
| 29 | W11693756 Whirlpool Screw Assembly |
| 30 | Strap |
| 31 | Clip (2) |
| 32 | Clip, Wire (2) |
| 33 | WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat |
| 35 | Unit, Rail |
| 36 | Screw, 1/4-28 x 1/2 (2) |
| 37 | 489340 Whirlpool Refrigerator Screw |
| 40 | Air, Baffle |
| 41 | Fan, Mounting Bracket |
| 42 | Screw, 8 x 3/8 |
| 43 | 833697 Whirlpool Condenser Fan Motor |
| 44 | 681390 Whirlpool Refrigerator Screw |
| 45 | Fan Blade |
| 46 | WP486692 Whirlpool Refrigerator Nut |
| 47 | Tray, Evaporator |
| 48 | 978027 Whirlpool Refrigerator Primary Valve |
| 48 | 978026 Whirlpool Refrigerator Primary Valve |
| 48 | Wedge, Air Baffle |
| 48 | 978030 Whirlpool Refrigerator Valve |
| 48 | WP978025 Whirlpool Refrigerator Valve |
| 48 | VALVE, ACCESS (1/2``) |
| 48 | 876764 Whirlpool Refrigerator Primary Valve |
| 48 | VALVE, ACCESS (5/8``) |
