ET18DKXWW01 04 – SHELF, LIT/OPTIONAL

ET18DKXWW01 04 – SHELF, LIT/OPTIONAL

Written by

in

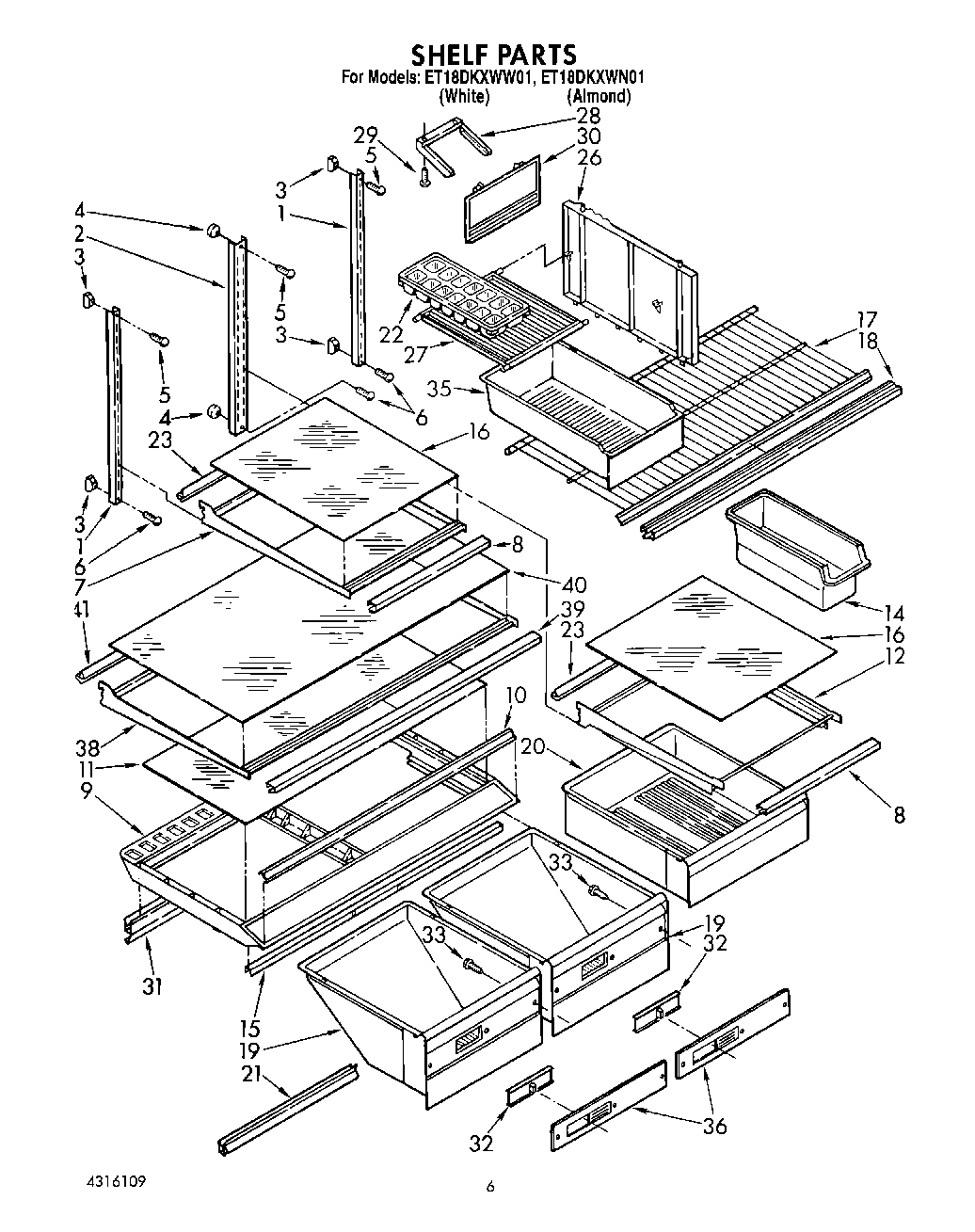

ET18DKXWW01 04 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2149915
	WPL LIT4316109
	WPL LIT2148352
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT1121114
	Torx Key
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	520965 Whirlpool Refrigerator Support
4	Screw Support, Center Ladder (2)
5	Screw, 8-32 x 1-1/4 (3)
6	WP488163 Whirlpool Refrigerator Screw
7	Shelf, Cantilever
8	Trim, Shelf
9	Crisper Cover
10	Trim, Crisper Cover
11	Glass, Crisper Cover
12	Pan Shelf, Cantilever
14	WP982704 Whirlpool Refrigerator Container
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Glass
17	Shelf, Freezer
18	Trim, Shelf Front
19	Pan, Crisper
20	Pan, Meat
21	Crisper, Gasket Front (2)
22	WP841180A Whirlpool Microwave Glass Turntable Tray
23	Reflector, Shelf
26	Divider
27	Shelf, Ice Compartment (2)
28	Slide, Ice Compartment
29	WP489478 Whirlpool Refrigerator Screw
30	Door, Ice Compartment
31	Crisper, Gasket Rear (2)
32	Slide
33	Screw (3)
35	PAN-ICE
36	Crisper, Pan Front
38	Shelf, Full Cantilever
39	Trim, Shelf
40	Glass, Shelf
41	350956 Whirlpool Spray Assembly
41	350930 Whirlpool White Spray Paint
41	212643 Whirlpool Refrigerator Permagum Sealer
41	CEMENT, ALUMILASTIC (1 1/4 OZ.)
41	WP505587 Whirlpool Refrigerator Sealer
41	WPL 799833
41	Reflector, Shelf
41	WPL 876029
41	285006 Whirlpool Spray
41	72032 Whirlpool Touch Up Paint Black
41	72017 Whirlpool Appliance Touch-Up Paint White
41	799344 Whirlpool Refrigerator Paint
41	WP503695 Whirlpool Refrigerator Sealer
41	876370 Whirlpool Refrigerator Insulation
41	833938 Whirlpool Refrigerator Terminal
41	606755 Whirlpool Refrigerator Bag
41	511873 Whirlpool Refrigerator Paint
41	WP542638 Whirlpool Refrigerator Grease
41	TAPE, VINYL (3/4 X 108“)
41	Almond (Uncut)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	350942 Whirlpool Spray Paint
