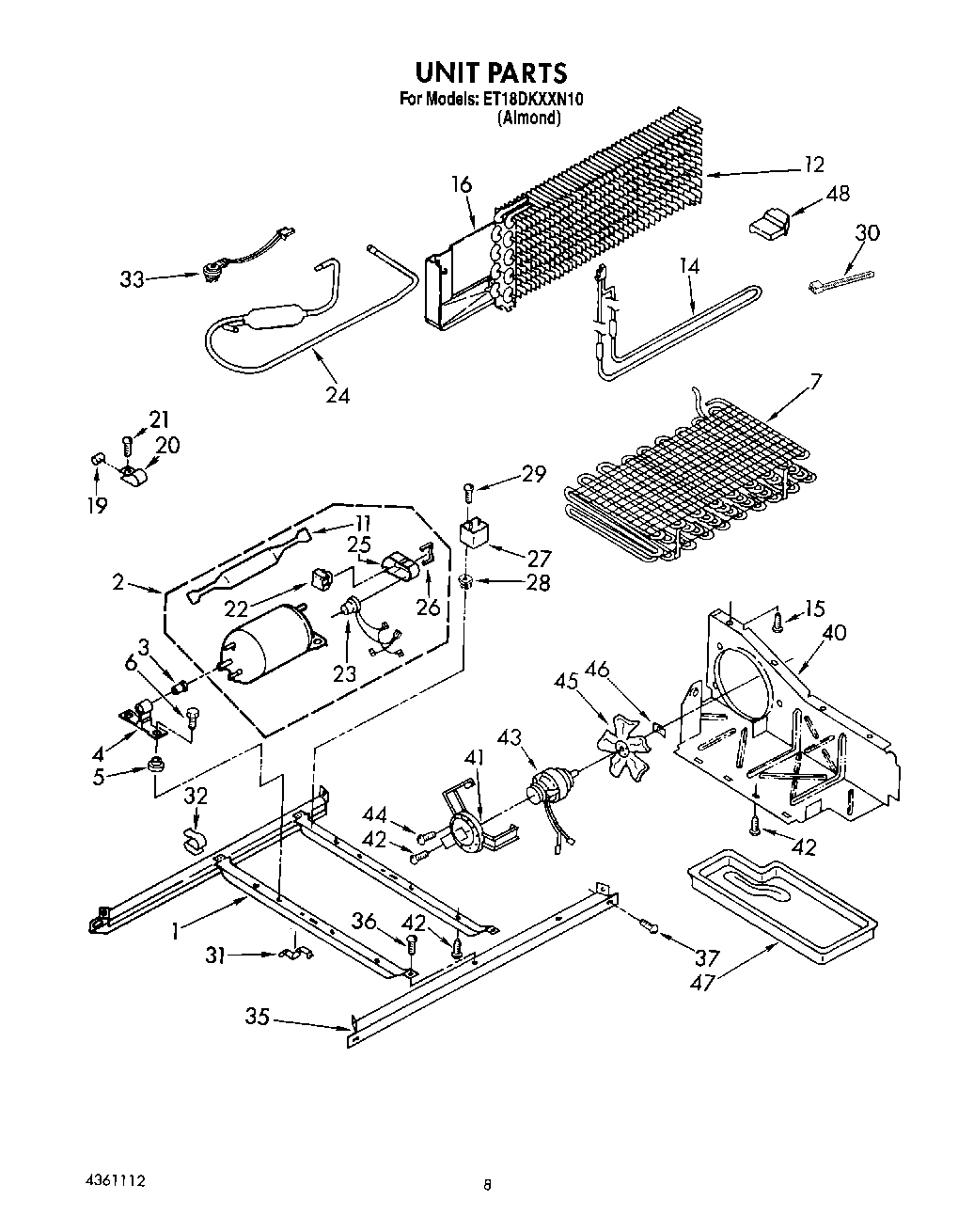

ET18DKXXN10 05 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor KIt Includes Items (11, 17, 22, 23, 25, 26, 27)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
14	Heater, Defrost
15	WP489478 Whirlpool Refrigerator Screw
16	Drain Pan & Heat Shield
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Relay (See Overload)
23	Overload (Service (Includes Relay))
23	Overload (Production (Includes Relay))
24	Muffler
25	Terminal Cover (Service)
26	Strap, Cover
27	Running, Capacitor (Service)
27	WPW10662129 Whirlpool Refrigerator Run Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Mounting Bracket
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	978027 Whirlpool Refrigerator Primary Valve
48	876764 Whirlpool Refrigerator Primary Valve
48	978030 Whirlpool Refrigerator Valve
48	Wedge, Air Baffle
48	VALVE, ACCESS (5/8“)
48	WP978025 Whirlpool Refrigerator Valve
48	VALVE, ACCESS (1/2“)
48	978026 Whirlpool Refrigerator Primary Valve
