ET18DKXZN00 02 – LINER

ET18DKXZN00 02 – LINER

Written by

in

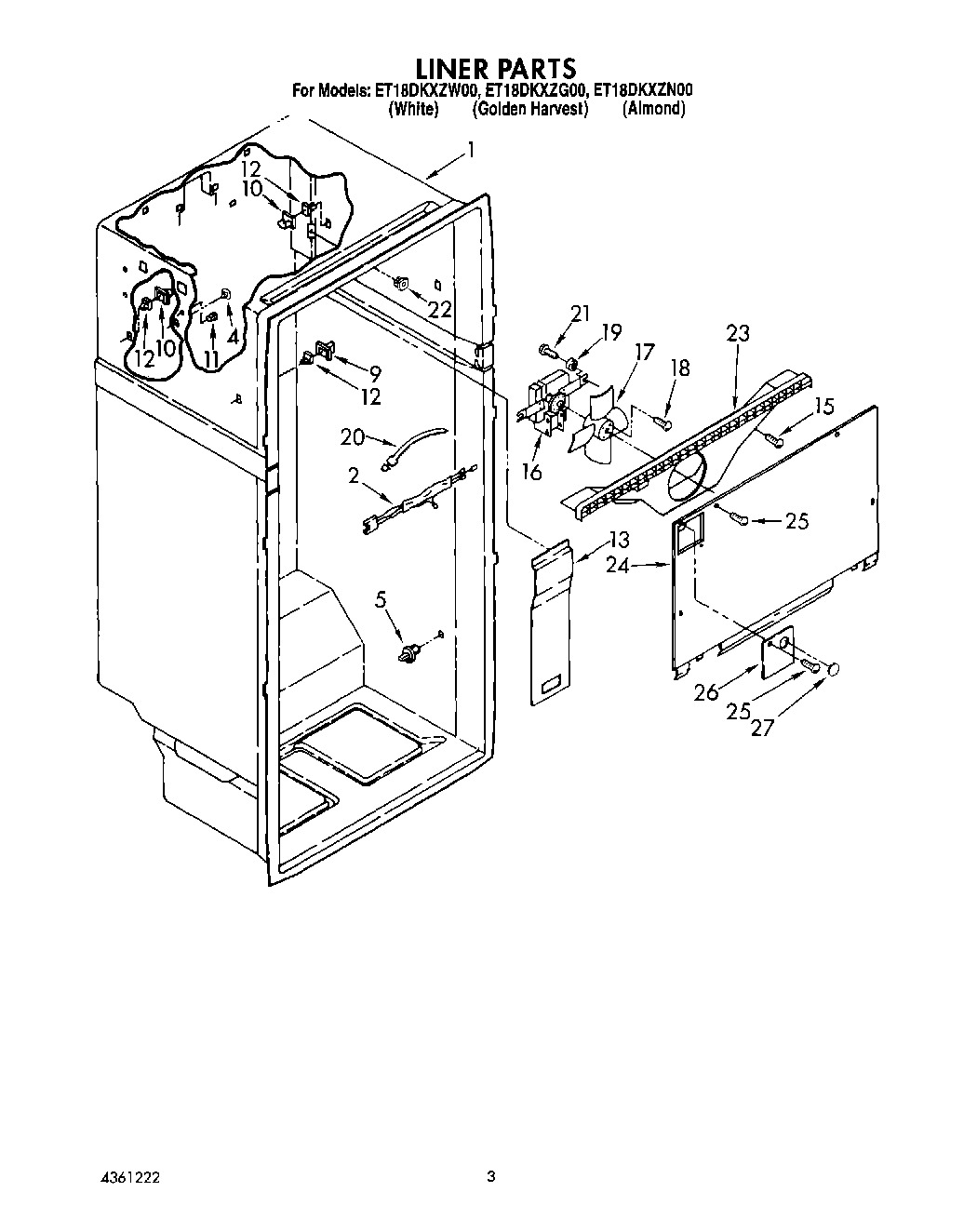

ET18DKXZN00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
4WP941839 Whirlpool Refrigerator Button Plug
5W10854959 Whirlpool Refrigerator Shelf Stud
9Stud, Front R.S.
10819091 Whirlpool Refrigerator Shelf Stud
11Grommet (8)
12Stud, Support
13Cover, Air Duct
15WP489478 Whirlpool Refrigerator Screw
16482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17WP1100938 Whirlpool Refrigerator Fan Blade
18WP487887 Whirlpool Refrigerator Screw
19Grommet
20Clip, Strap
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25SCREW
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
