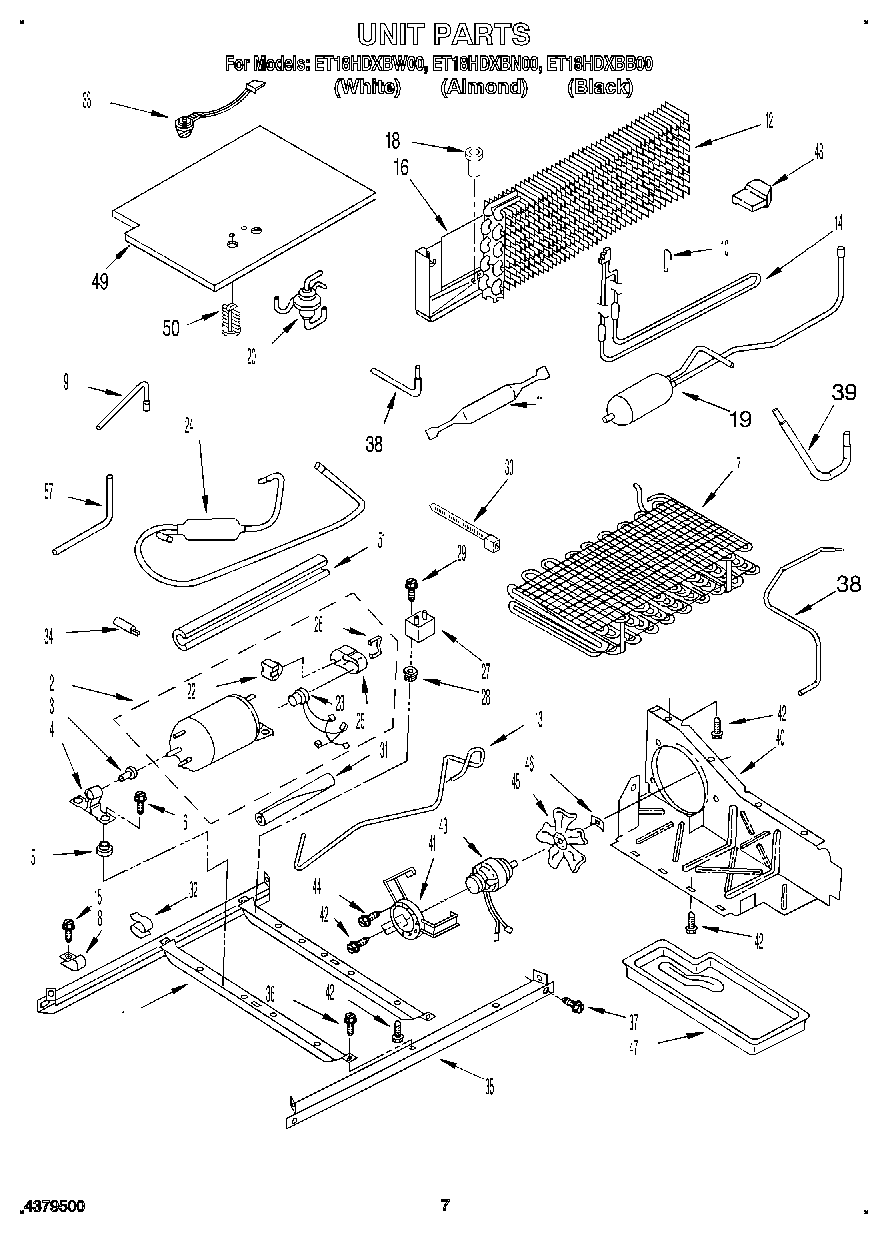

ET18HDXBN00 05 – UNIT

ET18HDXBN00 05 – UNIT

Written by

in

ET18HDXBN00 05 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
8Tube Clamp
9Tube, Process
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
13Tube, Discharge
14Heater, Defrost
15WP489128 Whirlpool Refrigerator Screw
16Drain Pan & Heat Shield
18Drain Fitting
19Reservoir Assy.
20Fluid Control Valve
22Relay, Start (See Overload)
23Overload (Service (Includes Relay))
23Overload (Production (Includes Relay))
24Muffler
25Terminal Cover (Service)
26Strap, Cover
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30WPW10339879 Whirlpool Wire Tie
31Sleeve
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34Capacitor, Start
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
38Tube, Condenser To Fluid Valve
39Tube Fluid Valve To Heat Loop
40Air, Baffle
41Fan, Mounting Bracket
42WP489464 Whirlpool Refrigerator Screw
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48Wedge, Air Baffle
49Cover, Unit Bottom
50489396 Whirlpool Refrigerator Clip
51WP2002171 Whirlpool Refrigerator Sleeve
57Tube, Reservoir & Heat Exchanger
57978030 Whirlpool Refrigerator Valve
57978027 Whirlpool Refrigerator Primary Valve
57VALVE, ACCESS (1/2“)
57876764 Whirlpool Refrigerator Primary Valve
57978026 Whirlpool Refrigerator Primary Valve
57VALVE, ACCESS (5/8“)
57WP978025 Whirlpool Refrigerator Valve
