ET18HKXTF02 02 – CABINET

ET18HKXTF02 02 – CABINET

Written by

in

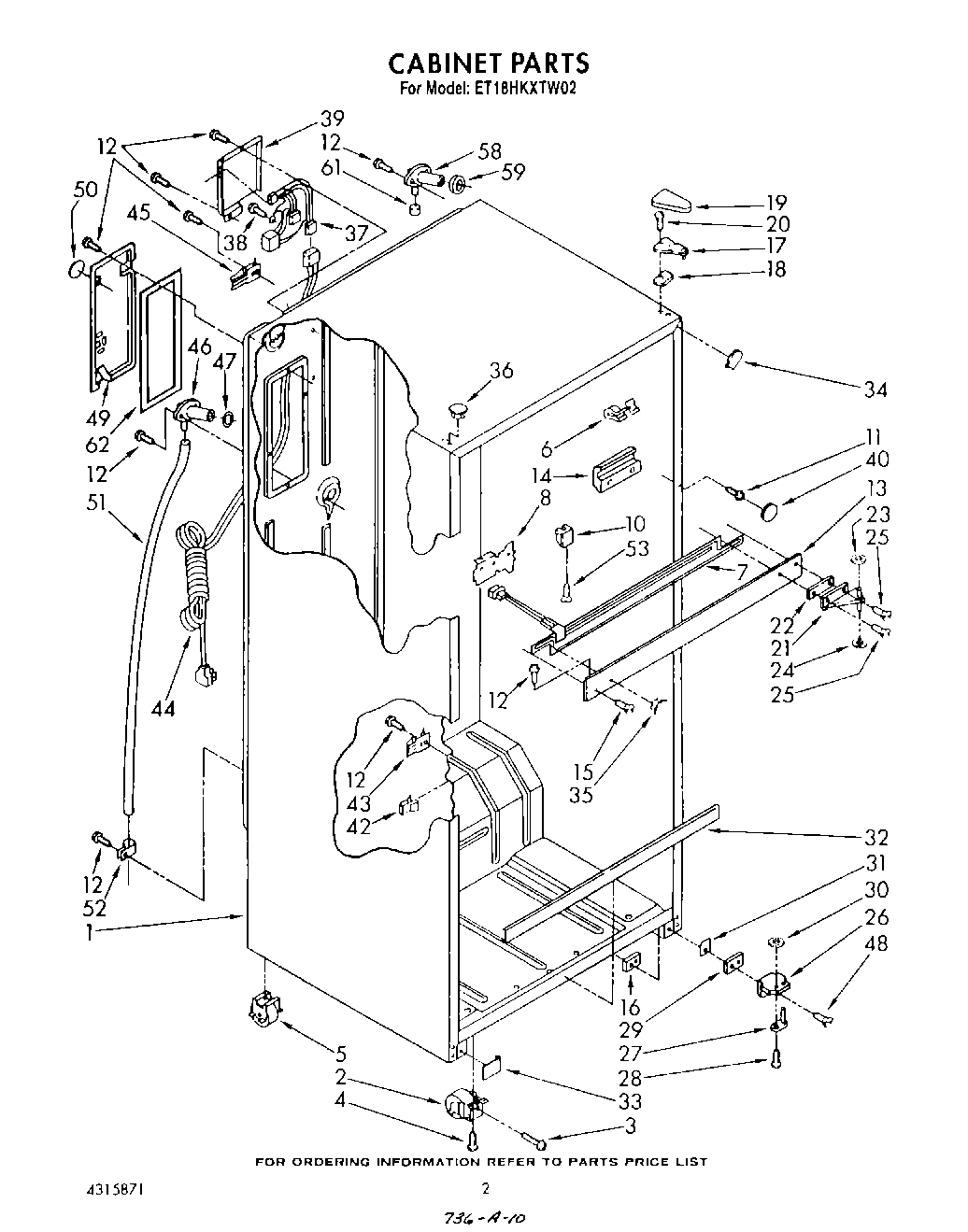

ET18HKXTF02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	Screw, 10-32 x 1/2
5	Roller, Front & Rear (4)
6	Breaker, Trim Clip
7	Heater, Mullion
8	Center Rail, Bracket (2)
10	Spacer (2)
11	Screw (2)
12	WP489478 Whirlpool Refrigerator Screw
12	SCREW
13	Center Rail (Toast)
13	Center Rail (Almond)
13	Center Rail (Golden Harvest)
13	Center Rail (Platinum)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	WPL 944813
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover (Toast)
19	Hinge Cover (Golden Harvest)
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Center (Repair)
22	Shim, Hinge Center
23	WP487802 Whirlpool Refrigerator Washer
24	WP488296 Whirlpool Washer Refrigerator
25	Screw
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (Golden Harvest)
31	Cover, Glider Rail (Platinum)
31	Cover, Glider Rail (White)
31	Cover, Glider Rail (Toast)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (Golden Harvest)
32	Cover, Deck Rail (White)
32	Cover, Deck Rail (Platinum)
32	Cover, Deck Rail (Toast)
33	WPL 944833
33	WPL 944831
33	WPL 943552
33	WPL 1100682
33	Cover, Gl
34	Filler, Wrapper Corner (2) (Platinum)
34	Filler, Wrapper Corner (2) (Toast)
34	Filler, Wrapper Corner (2) (Golden Harvest)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
35	WPL 1119708
35	Hole Plug (White)
35	Hole Plug (Almond)
35	WPL 1119710
35	WPL 1119711
36	Hole Plug (4) (Golden Harvest)
36	Hole Plug (4) (White)
36	Hole Plug (4) (Almond)
36	Hole Plug (4) (Toast)
36	Hole Plug (4) (Platinum)
37	WPL 942844
38	WP250830 Whirlpool Refrigerator Screw
39	WPL 942845
40	Hole Plug (2) (Golden Harvest)
40	Hole Plug (2) (Almond)
40	Hole Plug (2) (Platinum)
40	Hole Plug (2) (Toast)
40	Hole Plug (2) (White)
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Screw (Repair)
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP489174 Whirlpool Refrigerator Screw
58	WP2196157 Whirlpool Fill Tube
59	WP1106508 Whirlpool Refrigerator Gasket
61	WP487996 Whirlpool Refrigerator Cap Tube
62	WPL 1106510
