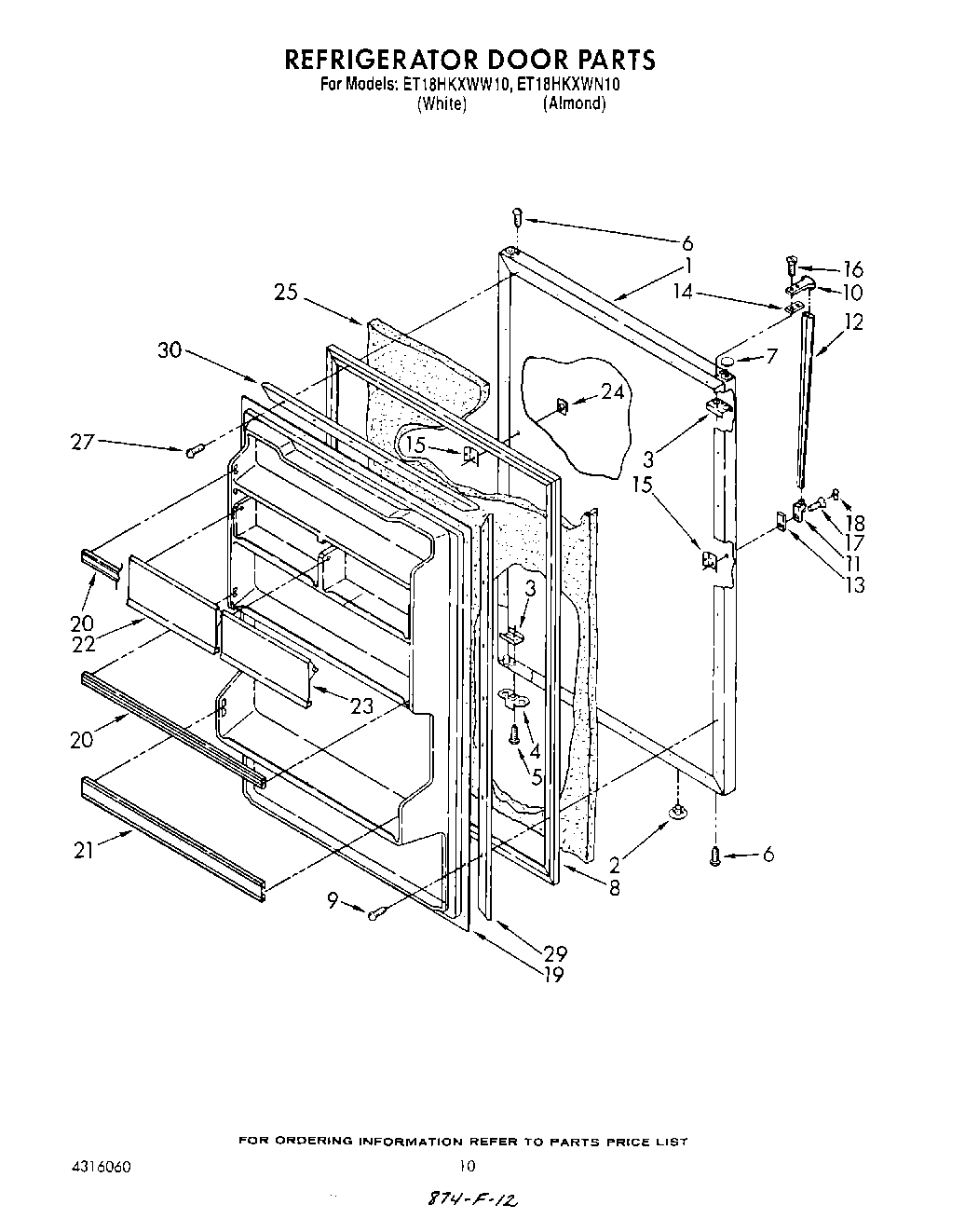

ET18HKXWW10 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

ET18HKXWW10 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Written by

in

ET18HKXWW10 08 – REFRIGERATOR DOOR , LIT/OPTIONAL

Products

PositionProduct
WPL LIT4316060
WPL LIT2148379
WPL LIT2149680
See Complete Cross-Reference Listing Film Card 800-A-1
WPL LIT2148174
Torx Key
1Panel, Refrigerator Door (White)
1Panel, Refrigerator Door (Almond)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10WP2191883 Whirlpool Refrigerator Handle Endcap
11WP2183139 Whirlpool Refrigerator Handle End Cap
12Handle, Center
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
22Compartment Door, Utility
23Compartment Door, Butter
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
29Gasket Retainer, Side (2)
30212643 Whirlpool Refrigerator Permagum Sealer
30Almond (Uncut)
30Leveler (Thinner)
30350930 Whirlpool White Spray Paint
30Gasket Retainer, Top & Bottom (2)
30WP72107 Whirlpool Touchup
30799344 Whirlpool Refrigerator Paint
3072017 Whirlpool Appliance Touch-Up Paint White
30350956 Whirlpool Spray Assembly
30350942 Whirlpool Spray Paint
30511873 Whirlpool Refrigerator Paint
30606755 Whirlpool Refrigerator Bag
30285006 Whirlpool Spray
30WPL 799833
30WPL 876029
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
30TAPE, VINYL (3/4 X 108“)
30WP542638 Whirlpool Refrigerator Grease
30WP505587 Whirlpool Refrigerator Sealer
30WP503695 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
30833938 Whirlpool Refrigerator Terminal
3072032 Whirlpool Touch Up Paint Black
